Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 12:01 PM
15 1161_15 0951 _01072017_040927.mpg
- Date
- 01/07/2017
- W/O
- 616852
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00635
- PipeID
- P25907
- Time
- 4:01 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4069
- Sewer Name
- 15 TYLER AVENUE RELIEF TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT15_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 15 1161
- Downstream MH
- 15 0951
- Dir. of Survey
- Downstream
- Length Surveyed
- 100.1 ft.
- Total Length
- 100.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 66
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 66
Observation photos (1)

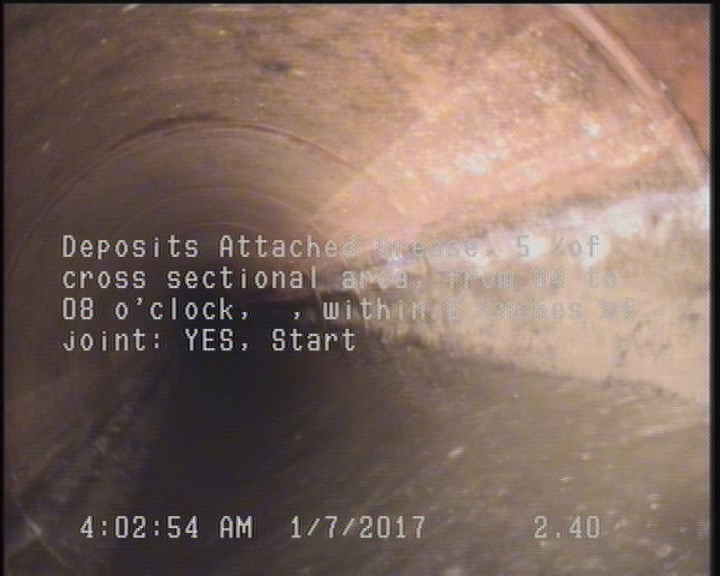

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 100.1 | AMH | 15 0951 |
| 30.3 | OBZ | DEBRIS NOT VISIBLE |
| 94.5 | MGO | MAGNEZIUM H.O. FINISH |
| 100.1 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 0 | AMH | 15 1161 |
| 2.4 | DAGS | — |
| 0 | MWL | — |
| 98.2 | OBZ | DEBRIS NOT VISIBLE |
| 100.1 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 0 | MWM | — |
| 98.2 | DAGS | — |
| 2.4 | MGO | MAGNESIUM H.O. START |
Properties (6)
- additional_info
- SC318610
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-07T04:01:15-08:00
- sewer_category
- Gravity
- year_laid
- 39519
