Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 07:26 AM
05 2619_05 2618 _01062017_232658.mp4
- Date
- 01/06/2017
- W/O
- 616852
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01145
- PipeID
- P25710
- Time
- 11:26 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4053
- Sewer Name
- 05 MANCHESTER AVENUE PUMP RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT05_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 05 2618
- Downstream MH
- 05 2619
- Dir. of Survey
- Upstream
- Length Surveyed
- 21.3 ft.
- Total Length
- 21.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3224
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

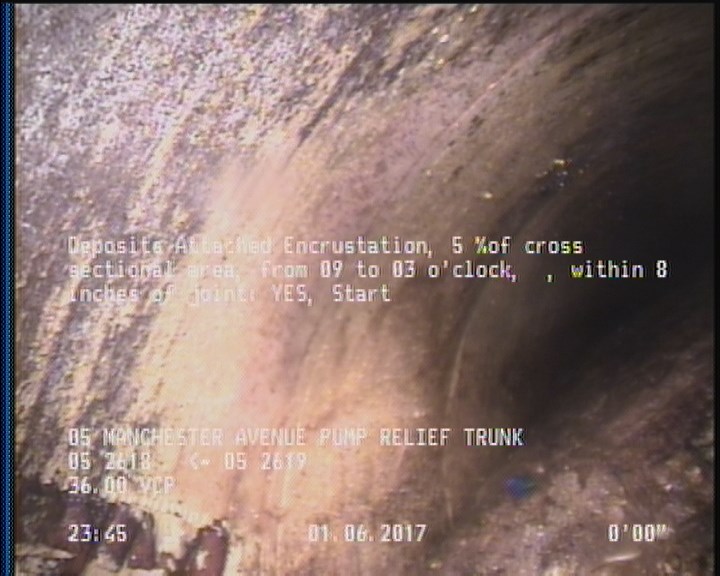

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

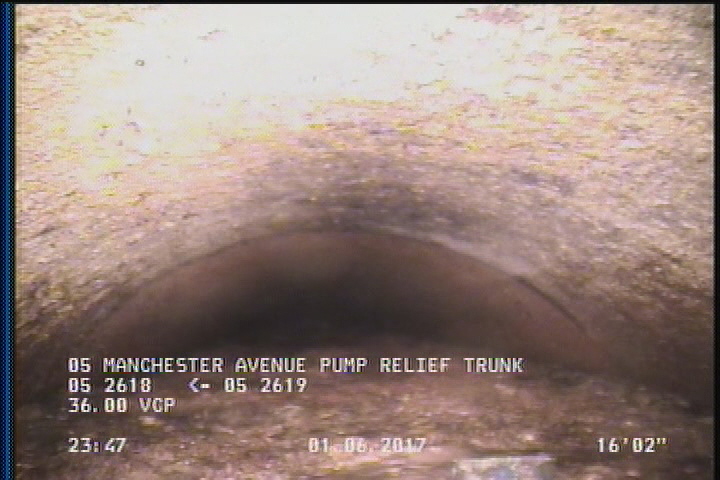

16.4 ft. - Deposits Settled Other, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

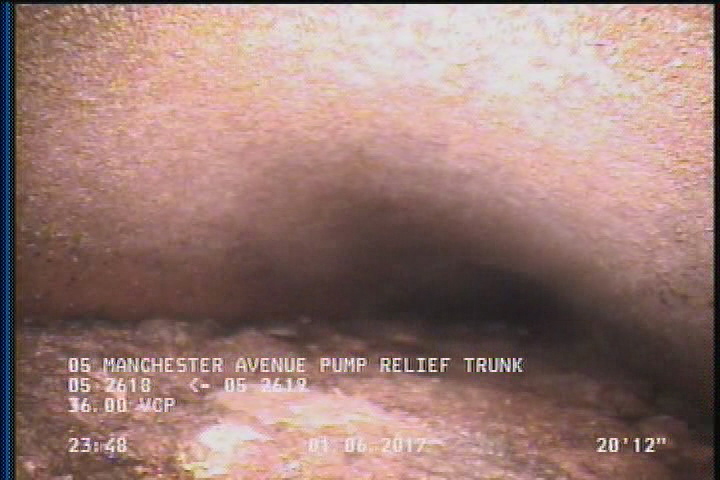

21.3 ft. - Survey Abandoned - DUE TO HIGH WATER LEVEL AND SLUDGE.
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 21.3 | DAE | — |
| 16.4 | DSZ | — |
| 0 | AMH | 05 2618 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 2 | DAE | — |
| 21.3 | DSZ | — |
| 21.3 | MSA | DUE TO HIGH WATER LEVEL AND SLUDGE. |
Properties (5)
- additional_info
- SC306701
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-01-06T23:26:35-08:00
- sewer_category
- Gravity
