Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 08:05 AM
H 1288_H 1287 _01122017_234335.mp4
- Date
- 01/12/2017
- W/O
- 613652
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01183
- PipeID
- P17304
- Time
- 12:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4210
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_613652_TV22154_JAN2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1288
- Downstream MH
- H 1287
- Dir. of Survey
- Downstream
- Length Surveyed
- 309 ft.
- Total Length
- 309 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 299
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 421
Observation photos (3)

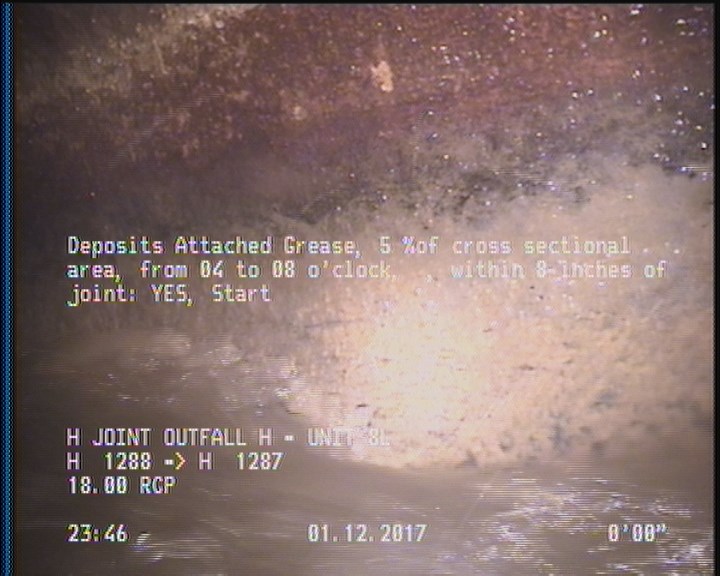

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

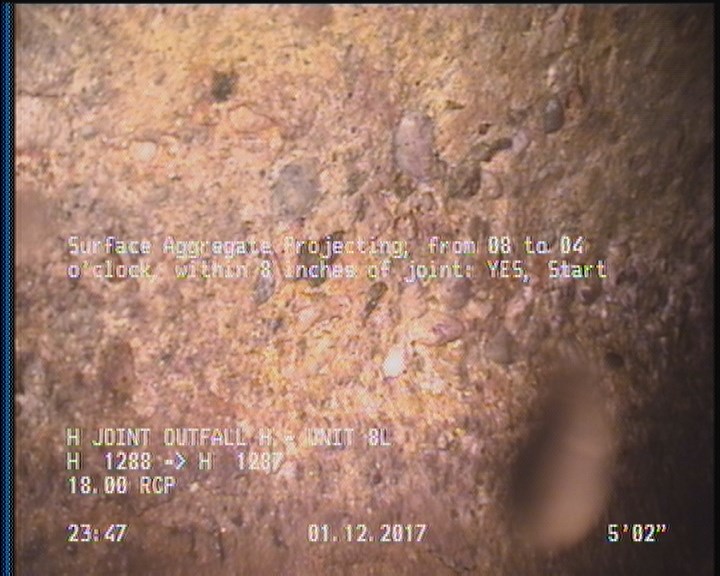

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

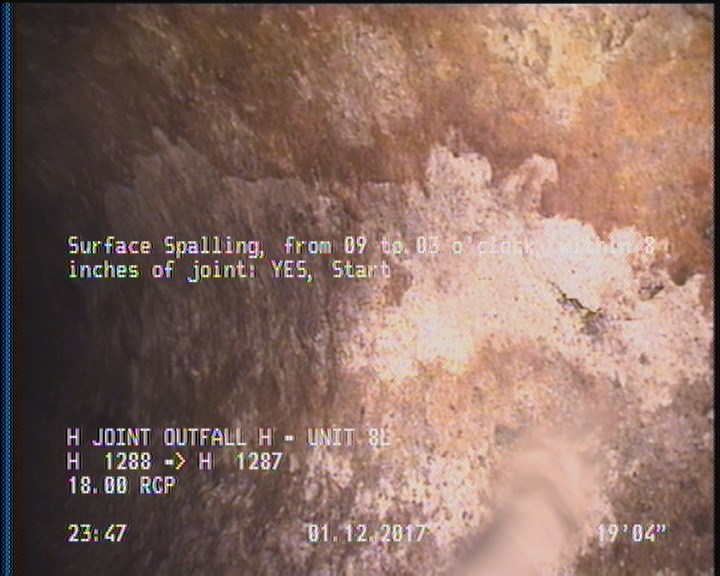

19.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 309 | AMH | H 1287 |
| 19.3 | SSS | — |
| 2 | SAP | — |
| 309 | MGO | COCKROACHES IN MANHOLE |
| 307.5 | DAGS | — |
| 0 | AMH | H 1288 |
| 0 | MWL | — |
| 307.5 | SSS | — |
| 0 | MWM | — |
| 307.5 | SAP | — |
Properties (5)
- additional_info
- SC306712
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-12T00:05:57-08:00
- sewer_category
- Gravity
