  • 22 0237_22 0236 _23012017_021919.mpg

Date
01/23/2017
W/O
613646
Weather
Light Rain
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16519
Time
2:19 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4086
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
35
Purpose
Routine Assessment
Project
WO_613646_TV22160_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0237
Downstream MH
22 0236
Dir. of Survey
Downstream
Length Surveyed
301.5 ft.
Total Length
301.5 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
180
O&M Index
2
O&M Quick
2K12
O&M Rating
122
Overall Index
2
Overall Quick
—
Overall Rating
302
Pipe schematic from manhole 22 0237 to 22 0236
MH: 22 0237MH: 22 0236downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. VC - Vermin Cockroach0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 22 02370 ft. MWM - Water Mark, 35 %of cross sectional area2.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.3 ft. MGO - General Observation - MAGNESIUM H.O. START2.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start47.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"51.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"83.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"133.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"181.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"181.2 ft. MGP - General Photograph199.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"267.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"300.5 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish300.6 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH300.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish301.5 ft. AMH - Downstream Manhole, Survey Ends - 22 0236301.5 ft. VC - Vermin Cockroach

Observation photos (3)

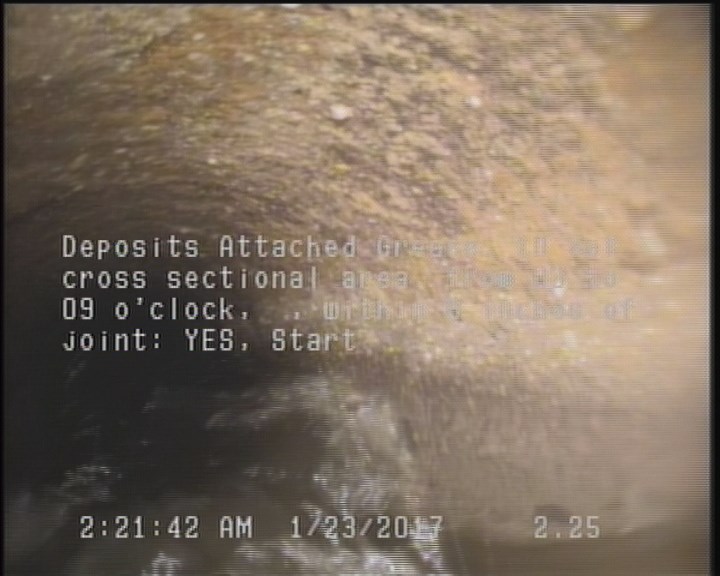

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

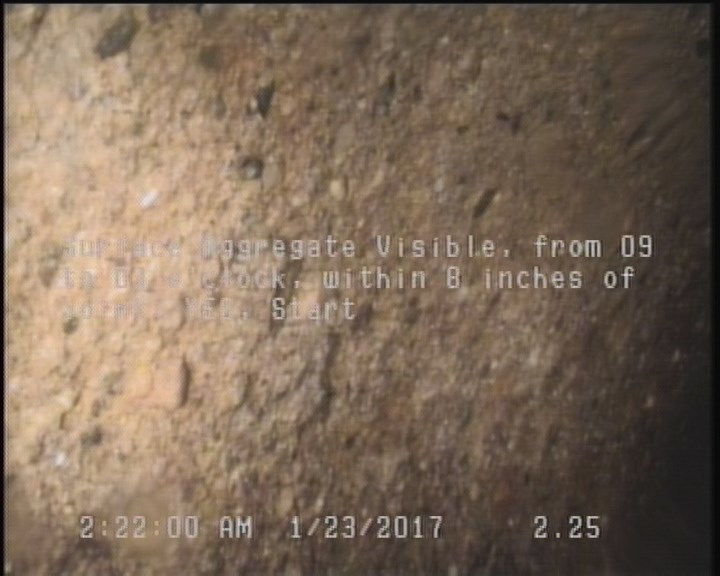

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

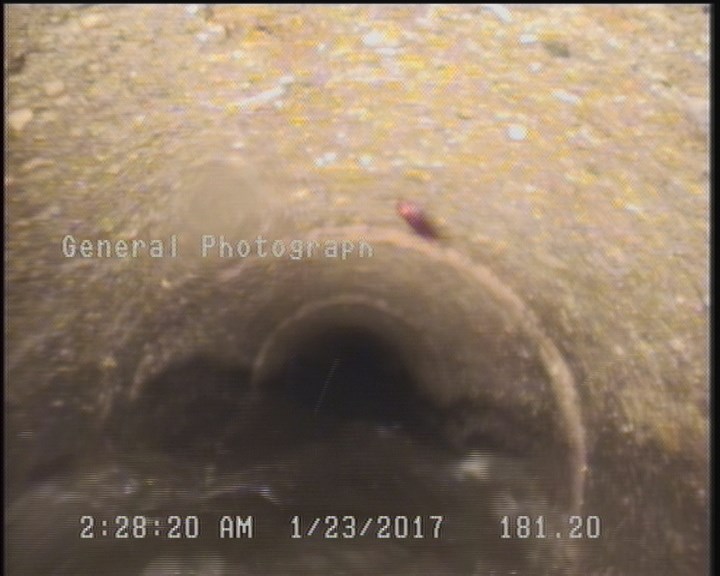

  • General Photograph

    181.2 ft. - General Photograph

All inspections of P16519Work order 613646

Observations (22)

DistanceCodeObservation
0MWL—
301.5AMH22 0236
51.1TFC—
301.5VC—
2.3DAGS—
267.1TFC—
300.5DAGS—
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
2.3MGOMAGNESIUM H.O. START
0VC—
199.4TFC—
181.2TFC—
133.1TFC—
83.8TFC—
2.3SAV—
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
0AMH22 0237
300.6MGOMAGNEZIUM H.O. FINISH
300.6SAV—
0MWM—
47.7TFC—
181.2MGP—

Properties (5)

additional_info
SC318627
custom_field_two
3
customer
LACSD
datetime
2017-01-23T02:19:08-08:00
sewer_category
Gravity
