Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 08:39 AM
- Date
- 01/13/2017
- W/O
- 613592
- Weather
- Damp
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00345
- PipeID
- P10419
- Time
- 12:39 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4077
- Sewer Name
- G JOINT OUTFALL G - UNIT 5
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_613592_TV01215_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- G 0056
- Downstream MH
- G 0055
- Dir. of Survey
- Downstream
- Length Surveyed
- 268.8 ft.
- Total Length
- 268.8 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 39
- O&M Index
- 2
- O&M Quick
- 4A2J
- O&M Rating
- 150
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 189
Observation photos (3)

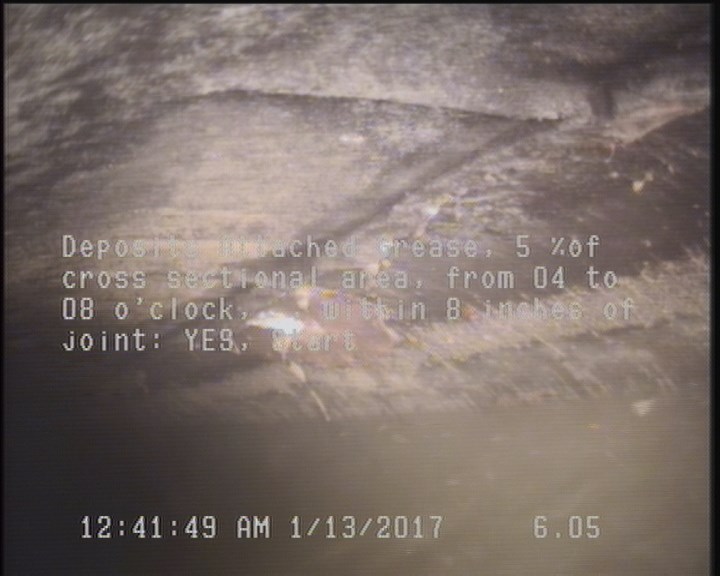

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

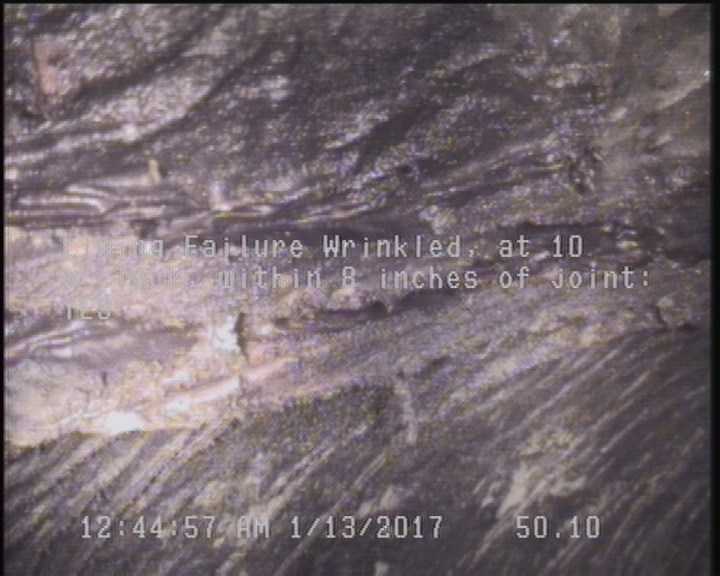

50.1 ft. - Lining Failure Wrinkled, at 10 o'clock, within 8 inches of joint: YES

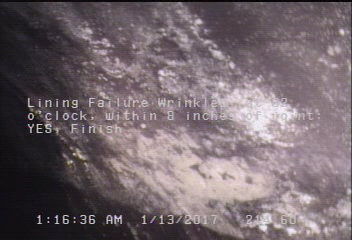

209.9 ft. - Lining Failure Wrinkled, at 02 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 268.8 | LFW | — |
| 0 | MWL | — |
| 268.8 | OBZ | DEBRIS NOT VISIBLE 5 FT AWAY FROM MH |
| 209.9 | LFW | — |
| 0 | MWM | — |
| 6.1 | DAGS | — |
| 268.8 | DNZ | DEBRIS NOT VISIBLE |
| 222.4 | DNZ | DEBRIS NOT VISIBLE |
| 268.8 | DAGS | — |
| 268.8 | AMH | G 0055 |
| 268.8 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | AMH | G 0056 |
| 6.1 | MGO | MAGNESIUM H.O. START |
| 50.1 | LFW | — |
Properties (5)
- additional_info
- SC318618
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-13T00:39:15-08:00
- sewer_category
- Gravity
