Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 09:37 AM
E 0202_E 0201_02112016_023725.mp4
- Date
- 11/02/2016
- W/O
- 597391
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00972
- PipeID
- P24783
- Time
- 2:37 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3871
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELIEF
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_597391_TV01092_OCT2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- E 0201
- Downstream MH
- E 0202
- Dir. of Survey
- Upstream
- Length Surveyed
- 434.7 ft.
- Total Length
- 434.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

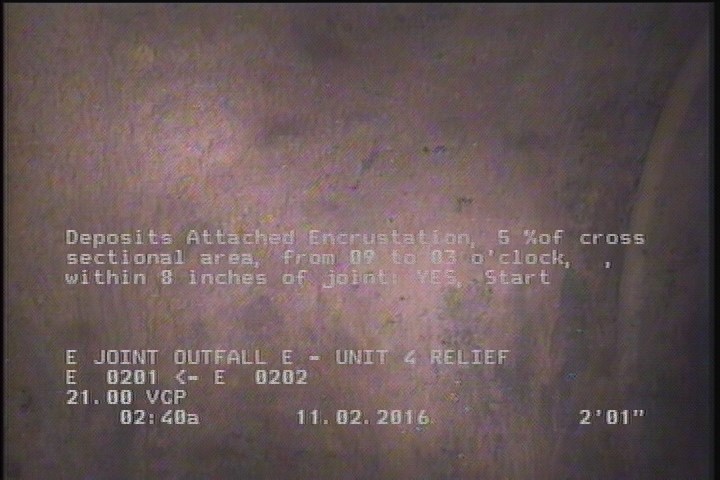

2.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

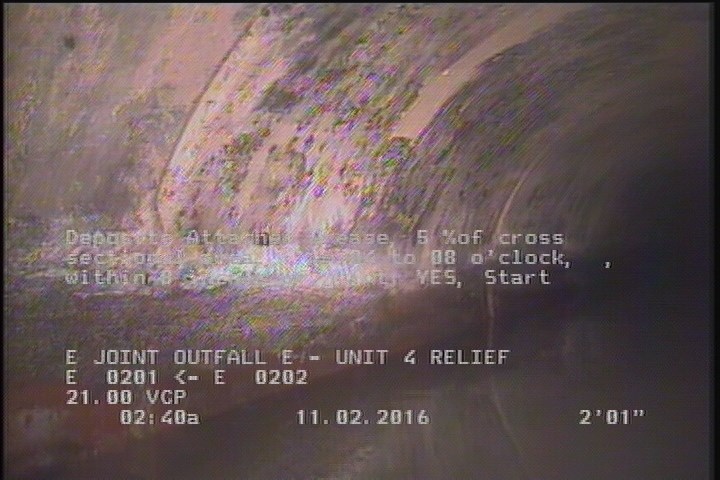

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

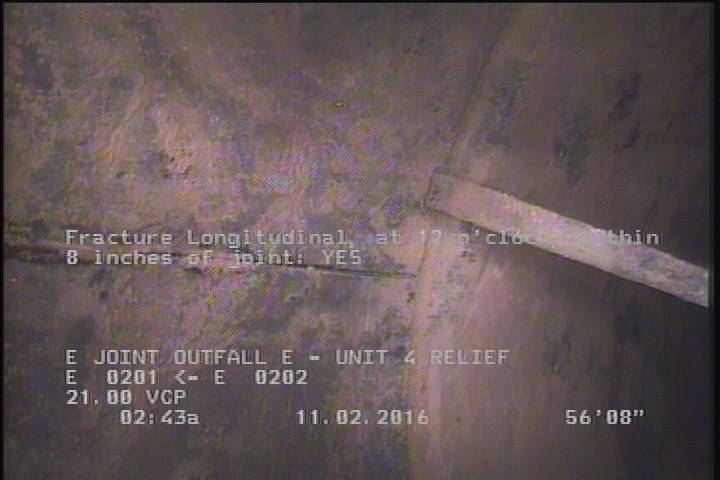

56.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 56.6 | FL | — |
| 433.1 | DAGS | — |
| 434.7 | AMH | E 0202 |
| 2.1 | DAE | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | DAGS | — |
| 433.1 | DAE | — |
| 0 | AMH | E 0201 |
Properties (6)
- additional_info
- SC305201
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-02T02:37:52-07:00
- sewer_category
- Gravity
- year_laid
- 37770
