Wastewater/Activity/PacpInspection/1.0Nov 2, 2016, 08:27 AM
E 0201_E 0200_02112016_012819.mp4
- Date
- 11/02/2016
- W/O
- 597391
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00972
- PipeID
- P24782
- Time
- 1:27 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3871
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELIEF
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_597391_TV01092_OCT2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- E 0201
- Downstream MH
- E 0200
- Dir. of Survey
- Downstream
- Length Surveyed
- 642.5 ft.
- Total Length
- 642.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

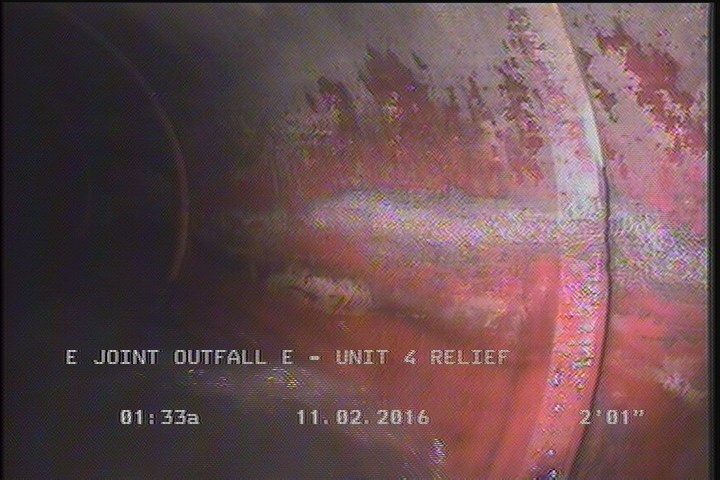

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

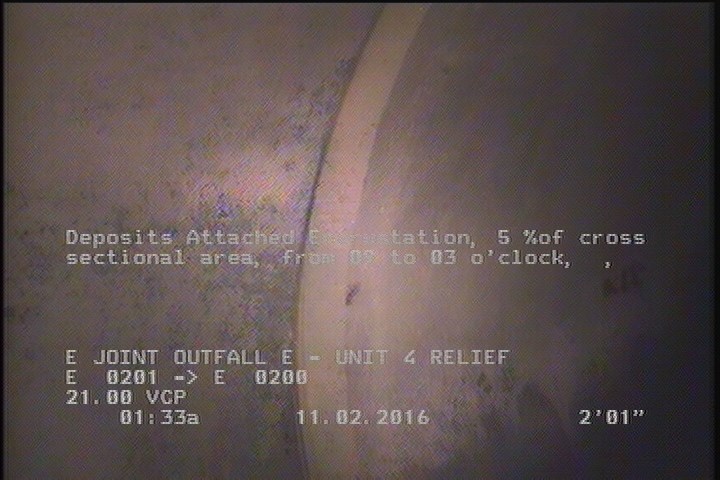

2.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

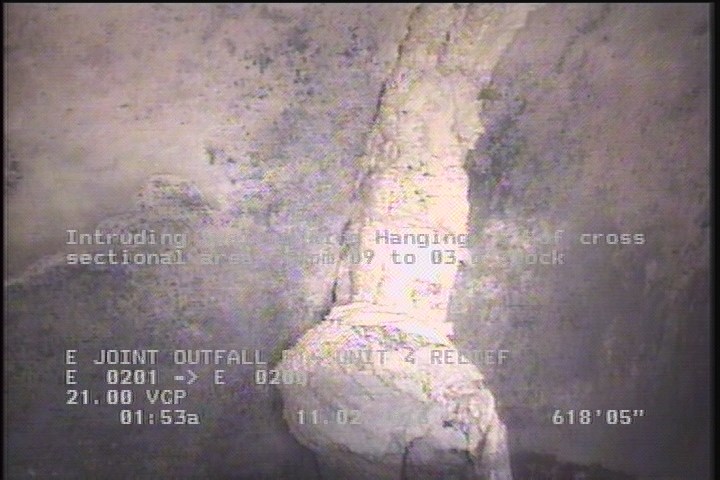

618.4 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 09 to 03 o'clock

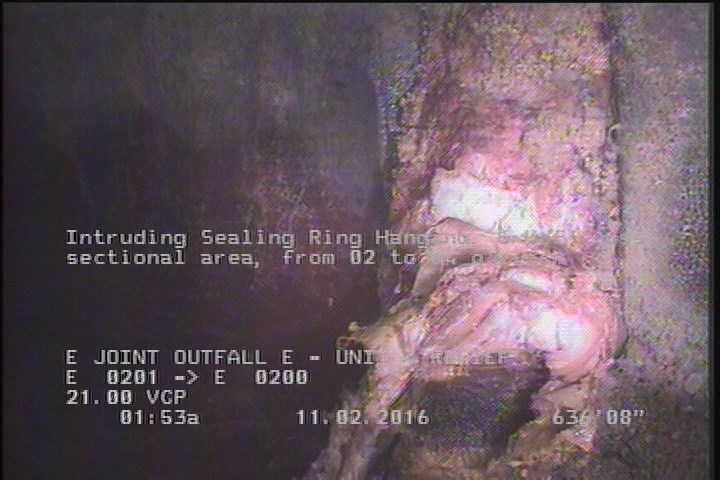

636.7 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 02 to 04 o'clock
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 642.5 | AMH | E 0200 |
| 640.8 | DAE | — |
| 0 | AMH | E 0201 |
| 636.7 | ISSRH | — |
| 2.1 | DAGS | — |
| 618.4 | ISSRH | — |
| 640.8 | DAGS | — |
| 2.1 | DAE | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC305201
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-02T01:27:44-07:00
- sewer_category
- Gravity
- year_laid
- 37770
