Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 06:25 AM
E 0197_E 0196_31102016_232618.mp4
- Date
- 10/31/2016
- W/O
- 597391
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00972
- PipeID
- P24778
- Time
- 11:25 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3869
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELIEF
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_597391_TV01092_OCT2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- E 0197
- Downstream MH
- E 0196
- Dir. of Survey
- Downstream
- Length Surveyed
- 316 ft.
- Total Length
- 316 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2411
- O&M Rating
- 9
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (5)

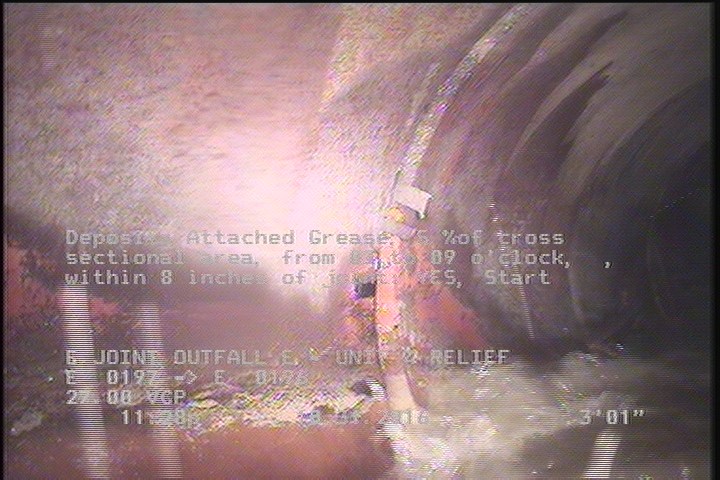

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

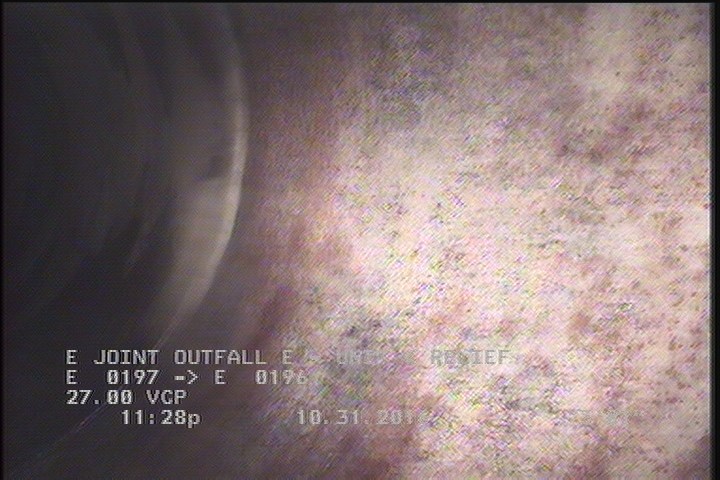

3.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

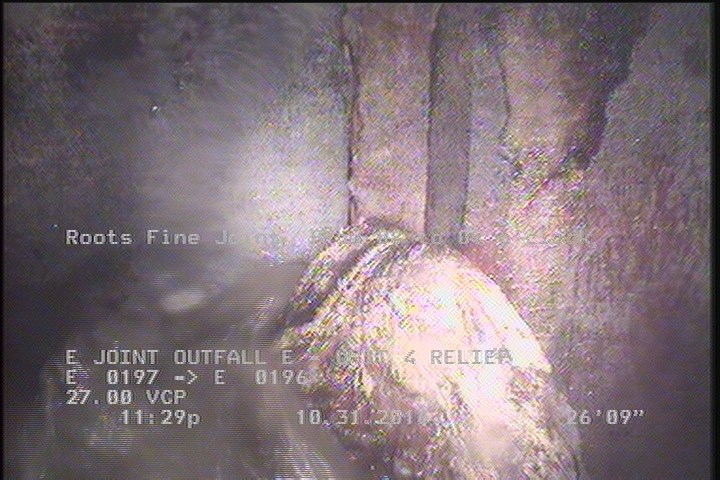

26.8 ft. - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES

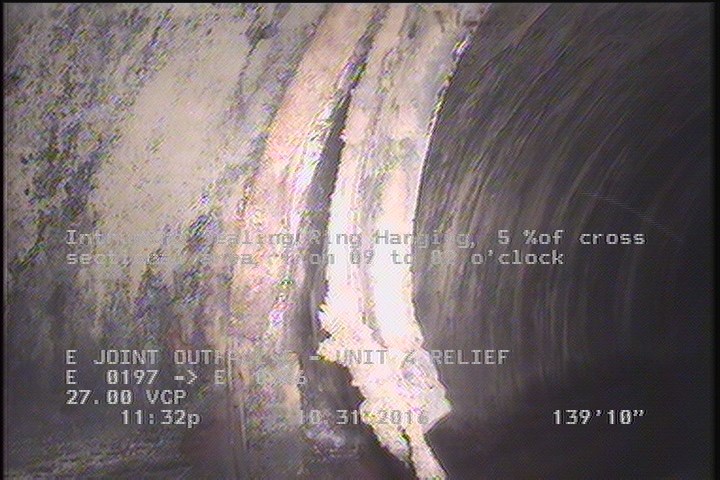

139.9 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 09 to 02 o'clock

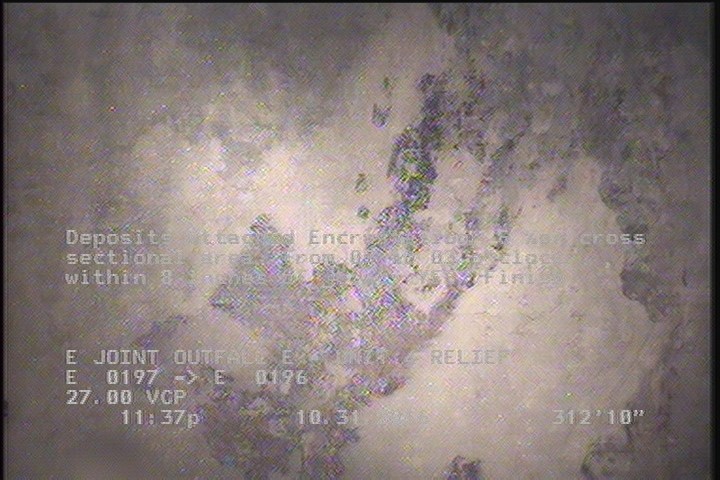

220.9 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 10 to 02 o'clock
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 26.8 | RFJ | — |
| 316 | AMH | E 0196 |
| 139.9 | ISSRH | — |
| 312.9 | DAE | — |
| 3.1 | DAGS | — |
| 0 | AMH | E 0197 |
| 0 | MWL | — |
| 312.9 | DAGS | — |
| 220.9 | ISSRH | — |
| 0 | MWM | — |
| 3.1 | DAE | — |
Properties (6)
- additional_info
- SC301949
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-31T23:25:57-07:00
- sewer_category
- Gravity
- year_laid
- 37770
