Wastewater/Activity/PacpInspection/1.0Oct 31, 2016, 11:21 AM
E 0187_E 0186_31102016_042150.mp4
- Date
- 10/31/2016
- W/O
- 597391
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00972
- PipeID
- P24768
- Time
- 4:21 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3868
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELIEF
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_597391_TV01092_OCT2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- E 0187
- Downstream MH
- E 0186
- Dir. of Survey
- Downstream
- Length Surveyed
- 608.7 ft.
- Total Length
- 608.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

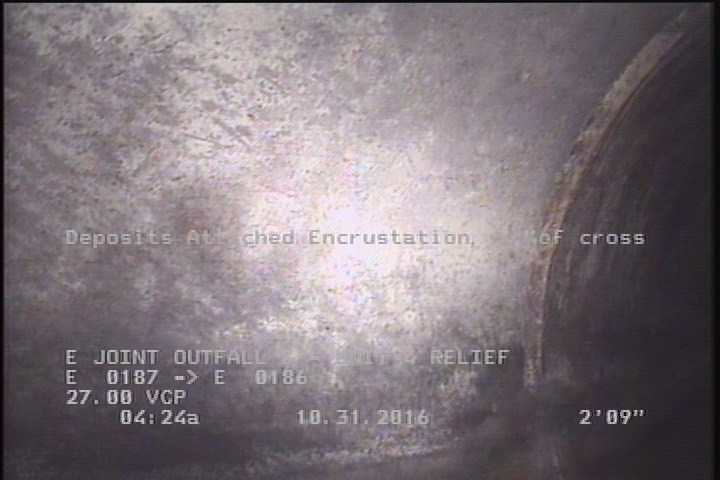

0 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

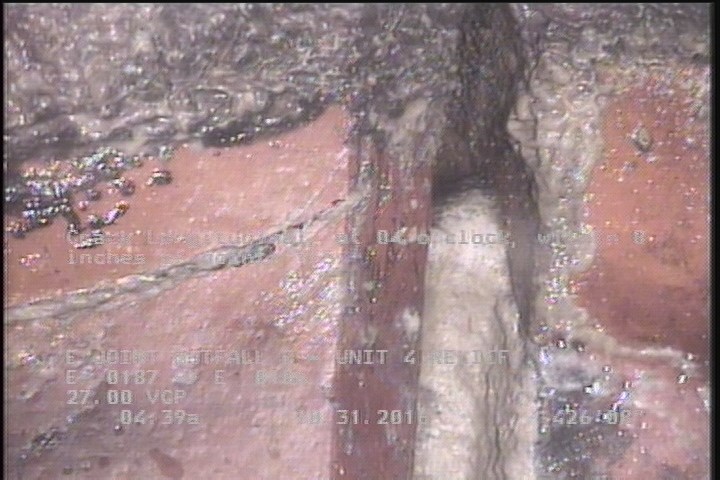

426.6 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 426.6 | CL | — |
| 606.1 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | E 0187 |
| 0 | DAE | — |
| 0 | DAGS | — |
| 606.1 | DAE | — |
| 608.7 | AMH | E 0186 |
Properties (6)
- additional_info
- SC301948
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-31T04:21:30-07:00
- sewer_category
- Gravity
- year_laid
- 37743
