Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 10:25 AM
E 0186_E 0185_01112016_032602.mp4
- Date
- 11/01/2016
- W/O
- 597391
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00972
- PipeID
- P24767
- Time
- 3:25 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3869
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELIEF
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_597391_TV01092_OCT2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- E 0185
- Downstream MH
- E 0186
- Dir. of Survey
- Upstream
- Length Surveyed
- 105.4 ft.
- Total Length
- 105.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

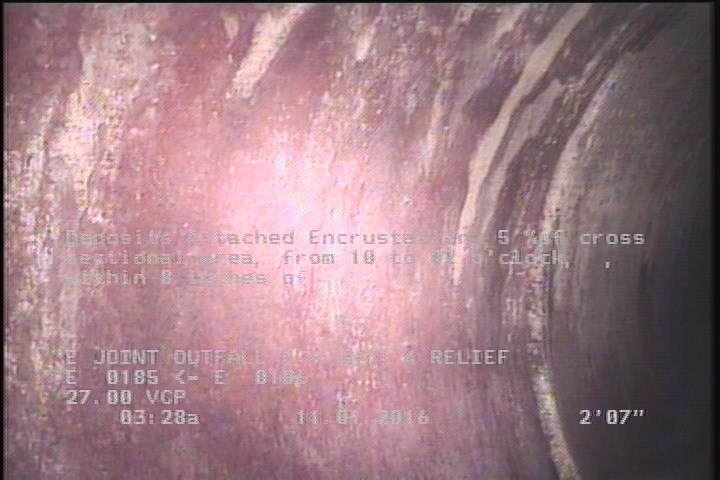

2.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

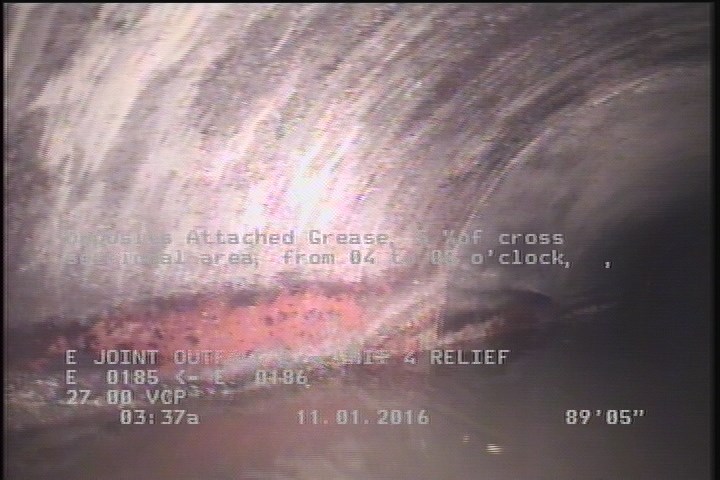

89.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | E 0185 |
| 0 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
| 0 | MWL | — |
| 102.3 | DAE | — |
| 105.4 | AMH | E 0186 |
| 2.6 | DAE | — |
| 0 | MGO | LATERAL AT MH 9 OCLOCK ACTIVE |
| 0 | MWM | — |
| 89.4 | DAGS | — |
Properties (6)
- additional_info
- SC301949
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-01T03:25:40-07:00
- sewer_category
- Gravity
- year_laid
- 37743
