Wastewater/Activity/PacpInspection/1.0Jan 9, 2017, 09:46 AM
08 0697_08 0696_01092017_020150.mpg
- Date
- 01/09/2017
- W/O
- 616852
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00008
- PipeID
- P25798
- Time
- 1:46 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4070
- Sewer Name
- 08 GRACE STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT08_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0696
- Downstream MH
- 08 0697
- Dir. of Survey
- Upstream
- Length Surveyed
- 290.5 ft.
- Total Length
- 290.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2J11
- O&M Rating
- 115
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 115
Observation photos (1)

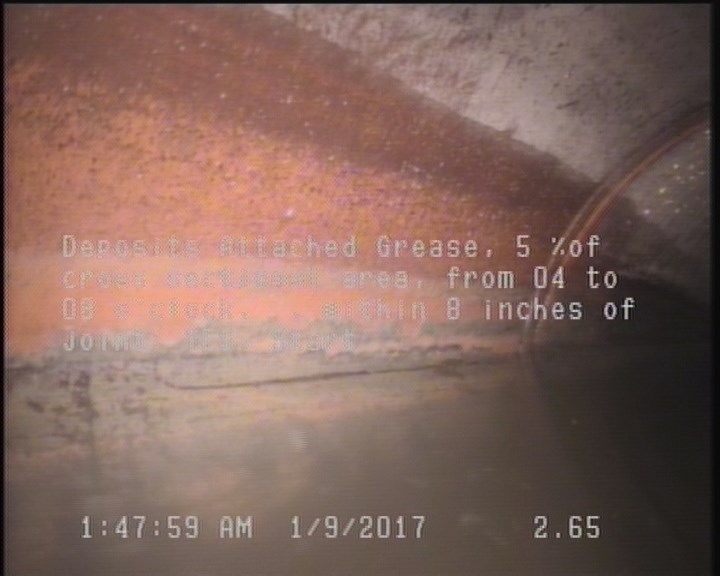

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0696 |
| 290.5 | AMH | 08 0697 |
| 2.7 | DAGS | — |
| 2.7 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 290.5 | VC | — |
| 0 | MWL | — |
| 288.6 | MGO | MAGNEZIUM H.O. FINISH |
| 288.6 | DAGS | — |
Properties (6)
- additional_info
- SC318611
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-09T01:46:36-08:00
- sewer_category
- Gravity
- year_laid
- 39337
