Wastewater/Activity/PacpInspection/1.0Jan 9, 2017, 12:29 PM
08 0703_08 0702_01092017_043843.mpg
- Date
- 01/09/2017
- W/O
- 616852
- Weather
- Heavy Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00008
- PipeID
- P25804
- Time
- 4:29 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4070
- Sewer Name
- 08 GRACE STREET RELIEF TRUNK
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT08_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0703
- Downstream MH
- 08 0702
- Dir. of Survey
- Downstream
- Length Surveyed
- 252.5 ft.
- Total Length
- 252.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 98
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 98
Observation photos (2)

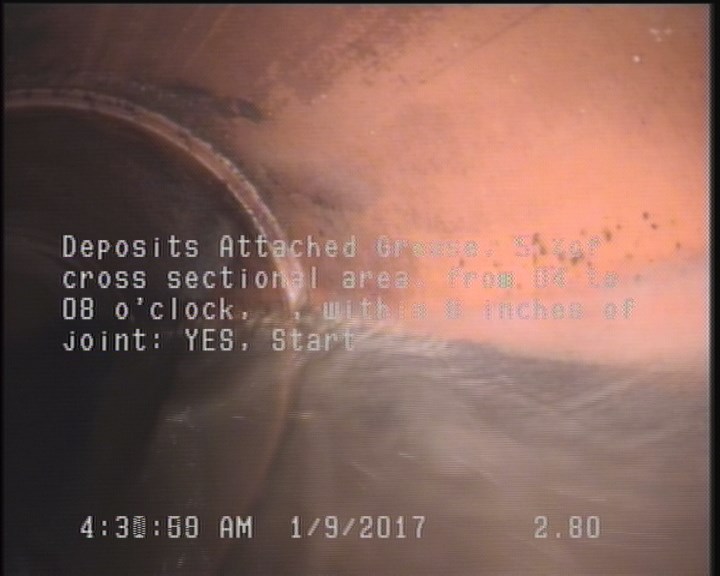

2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

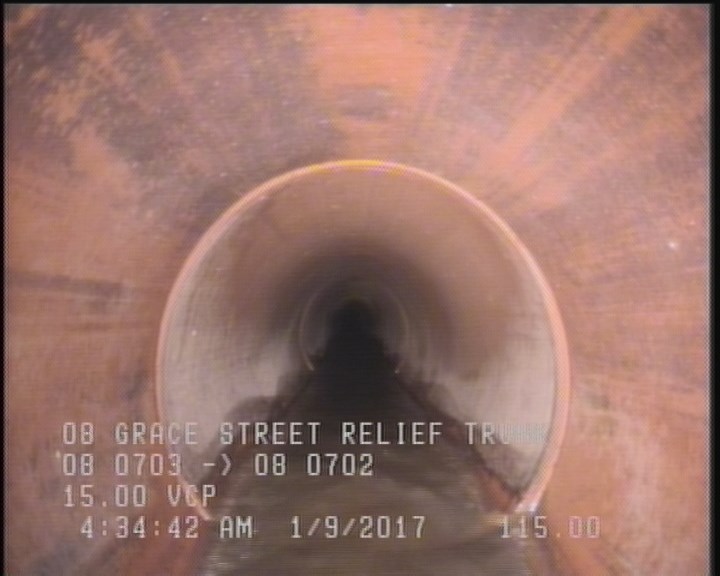

115 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 252.5 | AMH | 08 0702 |
| 248.7 | DAGS | — |
| 2.8 | DAGS | — |
| 248.7 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | MWL | — |
| 0 | AMH | 08 0703 |
| 115 | MGP | — |
| 0 | MWM | — |
| 2.8 | MGO | MAGNESIUM H.O. START |
Properties (6)
- additional_info
- SC318611
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-09T04:29:03-08:00
- sewer_category
- Gravity
- year_laid
- 39337
