Wastewater/Activity/PacpInspection/1.0Jan 3, 2016, 10:45 AM
05 1043_05 1042 _01012002_002630.mp4
- Date
- 01/03/2016
- W/O
- 613619
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00424
- PipeID
- P06278
- Time
- 2:45 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3954
- Sewer Name
- 05 AVIATION BOULEVARD RELIEF TRUNK
- City
- EL SEGUNDO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_613619_TV05177_JAN2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 05 1043
- Downstream MH
- 05 1042
- Dir. of Survey
- Downstream
- Length Surveyed
- 315.9 ft.
- Total Length
- 315.9 ft.
- Structural Index
- 2
- Structural Quick
- 312H
- Structural Rating
- 93
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 93
Observation photos (2)
92.8 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

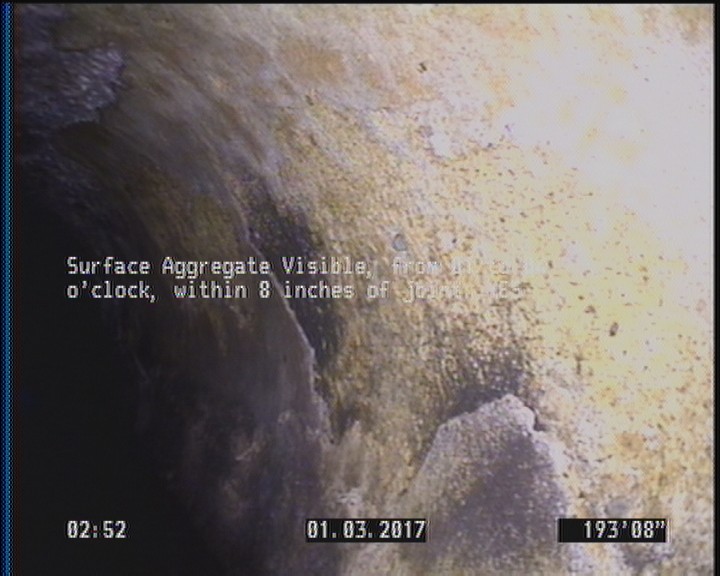

193.6 ft. - Surface Aggregate Visible, from 01 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 193.6 | SAV | — |
| 28.4 | TFA | — |
| 92.8 | SSS | — |
| 0 | AMH | 05 1043 |
| 315.9 | MSA | DUE TO DEBRIS ON BOTTOM OF PIPE |
| 2 | MGO | Magnesium hydroxide coating start |
| 0 | MWL | — |
| 0 | MWM | — |
| 315.9 | SSS | — |
Properties (5)
- additional_info
- SC306467
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-01-03T02:45:00-08:00
- sewer_category
- Gravity
