Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 11:24 AM

  • 22 1149_22 1148 _01132017_032516.mp4

Date
01/13/2017
W/O
613566
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00792
PipeID
P17527
Time
3:24 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4211
Sewer Name
22 BUENA VISTA TRUNK
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
01
Purpose
Routine Assessment
Project
WO_613566_TV22086_JAN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 1149
Downstream MH
22 1148
Dir. of Survey
Downstream
Length Surveyed
293.1 ft.
Total Length
293.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
118
Pipe schematic from manhole 22 1149 to 22 1148
MH: 22 1149MH: 22 1148downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start0 ft. AMH - Upstream Manhole, Survey Begins - 22 114955.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"208 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"293.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK293.1 ft. AMH - Downstream Manhole, Survey Ends - 22 1148293.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (1)

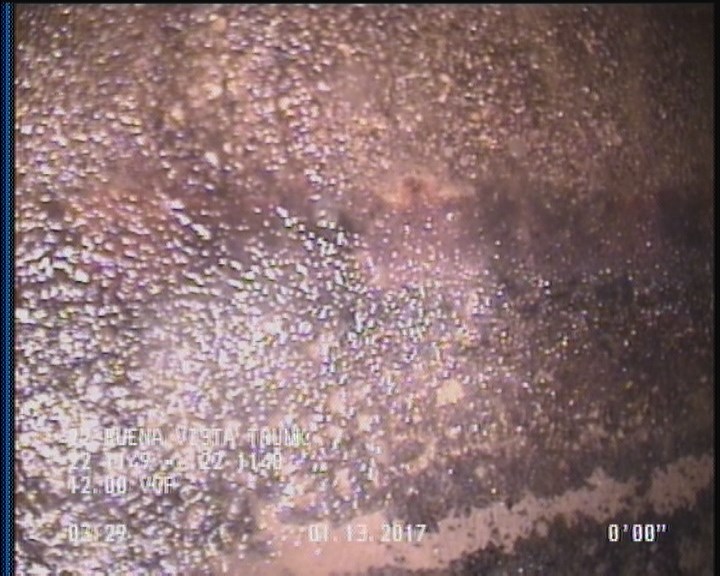

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17527Work order 613566

Observations (14)

DistanceCodeObservation
293.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWM—
0MWL—
231.3TFA—
0DAGS—
141.8TFA—
104.2TFA—
55.2TFC—
0AMH22 1149
159.6TFA—
264.3TFA—
293.1AMH22 1148
208TFA—
293.1DAGS—

Properties (5)

additional_info
SC306713
custom_field_two
4
customer
LACSD
datetime
2017-01-13T03:24:17-08:00
sewer_category
Gravity
