Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 08:24 AM
22 0474_22 0473 _01122017_002513.mp4
- Date
- 01/12/2017
- W/O
- 613449
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00816
- PipeID
- P16813
- Time
- 12:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4208
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 4,5,&6
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_613449_TV22048_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0474
- Downstream MH
- 22 0473
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.2 ft.
- Total Length
- 39.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (2)

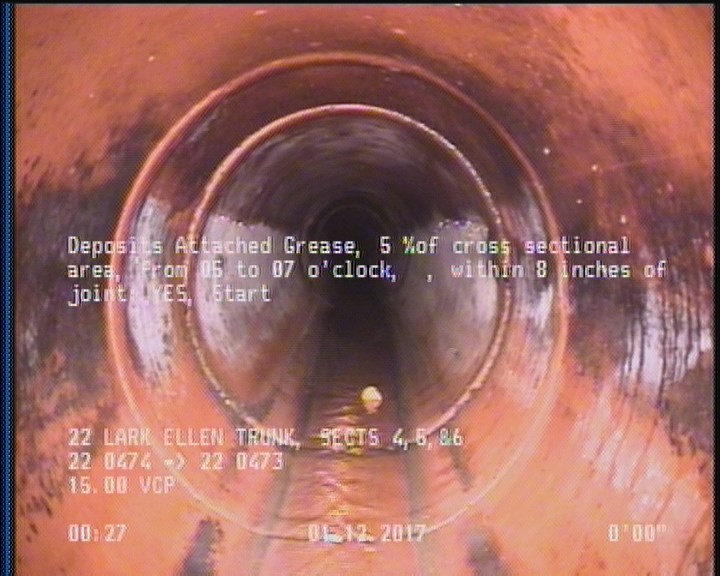

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

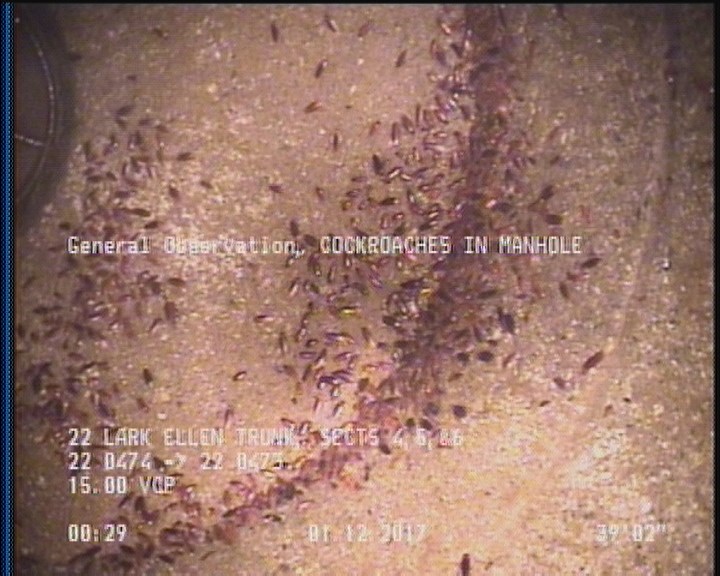

39.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 39.2 | AMH | 22 0473 |
| 37.7 | DAGS | — |
| 39.2 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 6 O'CLOCK |
| 0 | AMH | 22 0474 |
Properties (6)
- additional_info
- SC306710
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-12T00:24:46-08:00
- sewer_category
- Gravity
- year_laid
- 26912
