Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 07:37 AM
22 0472_22 0471A _01112017_233817.mp4
- Date
- 01/11/2017
- W/O
- 613449
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00816
- PipeID
- P16811
- Time
- 11:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4208
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 4,5,&6
- City
- AZUSA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_613449_TV22048_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Square
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0472
- Downstream MH
- 22 0471A
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.7 ft.
- Total Length
- 375.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 148
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 148
Observation photos (4)

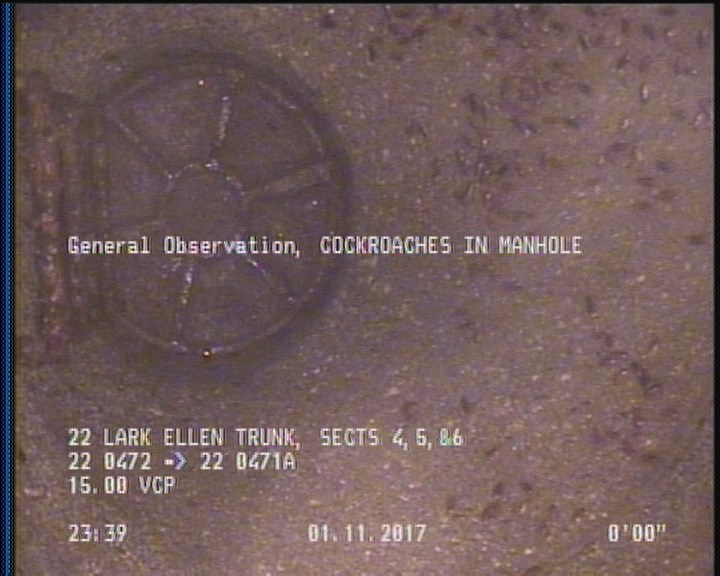

0 ft. - General Observation - COCKROACHES IN MANHOLE

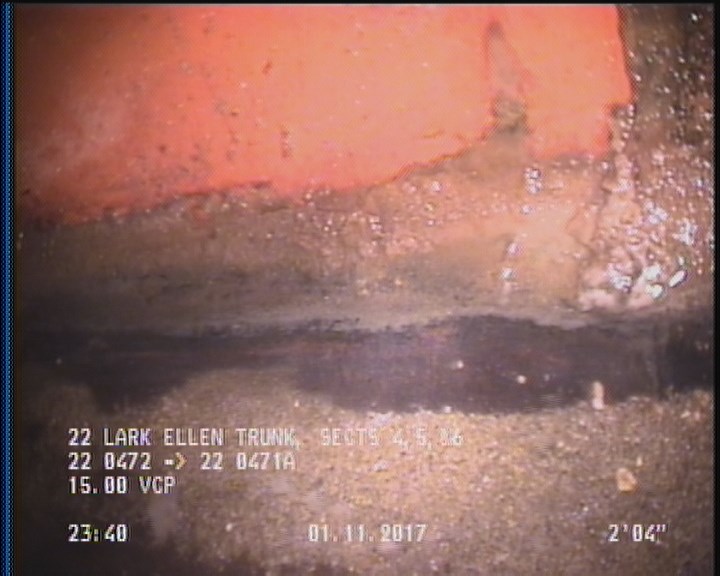

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

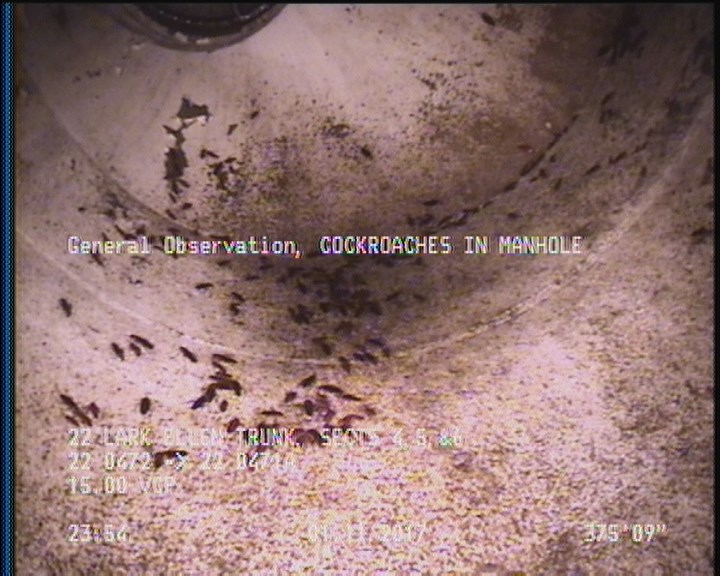

375.7 ft. - General Observation - COCKROACHES IN MANHOLE

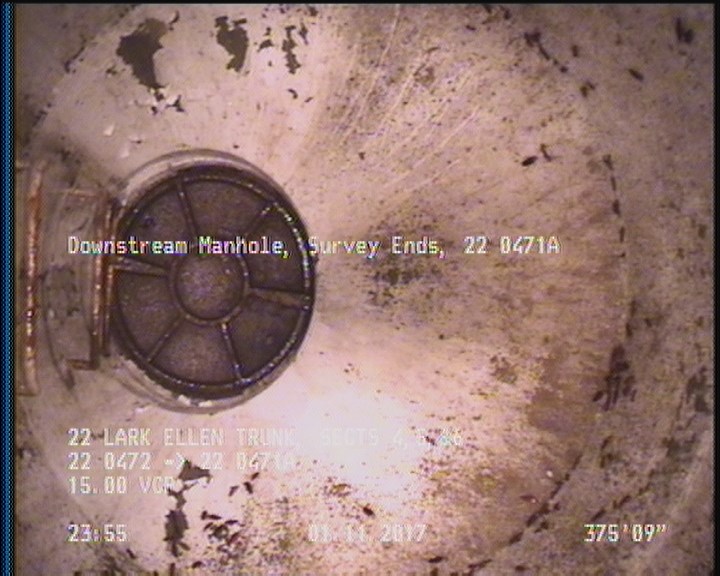

375.7 ft. - Downstream Manhole, Survey Ends - 22 0471A
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 375.7 | MGO | COCKROACHES IN MANHOLE |
| 366.6 | TFC | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 375.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 375.7 | AMH | 22 0471A |
| 374.1 | DAGS | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 96.3 | TFC | — |
| 0 | AMH | 22 0472 |
| 0 | MWM | — |
| 228.3 | TFC | — |
Properties (6)
- additional_info
- SC306710
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-11T23:37:02-08:00
- sewer_category
- Gravity
- year_laid
- 26912
