Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 06:50 AM

  • 22 0278_22 0277 _01192017_230224.mpg

Date
01/19/2017
W/O
613442
Weather
Light Rain
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16564
Time
10:50 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4083
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0278
Downstream MH
22 0277
Dir. of Survey
Downstream
Length Surveyed
157 ft.
Total Length
157 ft.
Structural Index
3
Structural Quick
413E
Structural Rating
97
O&M Index
2
O&M Quick
2E12
O&M Rating
62
Overall Index
2
Overall Quick
—
Overall Rating
159
Pipe schematic from manhole 22 0278 to 22 0277
MH: 22 0278MH: 22 0277downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02780 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2.1 ft. MGO - General Observation - MAGNESIUM H.O. START2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES2.1 ft. FL - Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES25.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"97.6 ft. LL - Alignment Left, 10 %99.8 ft. MGP - General Photograph146.3 ft. VC - Vermin Cockroach154.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish154.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish154.4 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH157 ft. AMH - Downstream Manhole, Survey Ends - 22 0277157 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE

Observation photos (5)

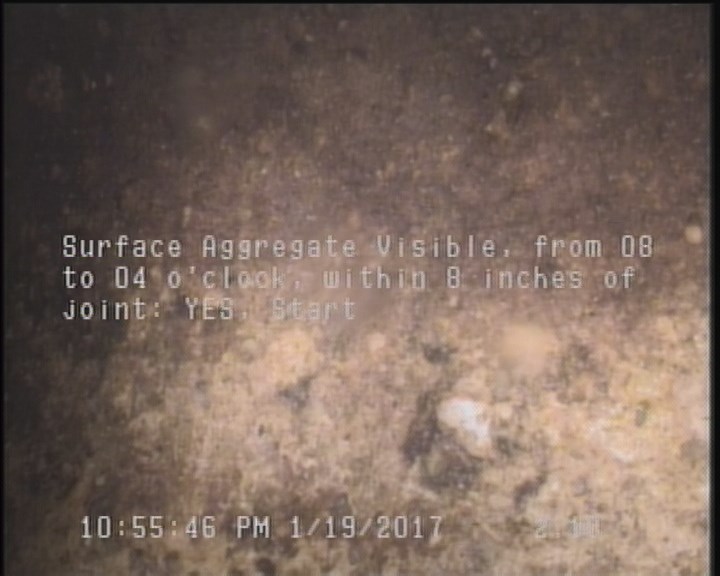

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

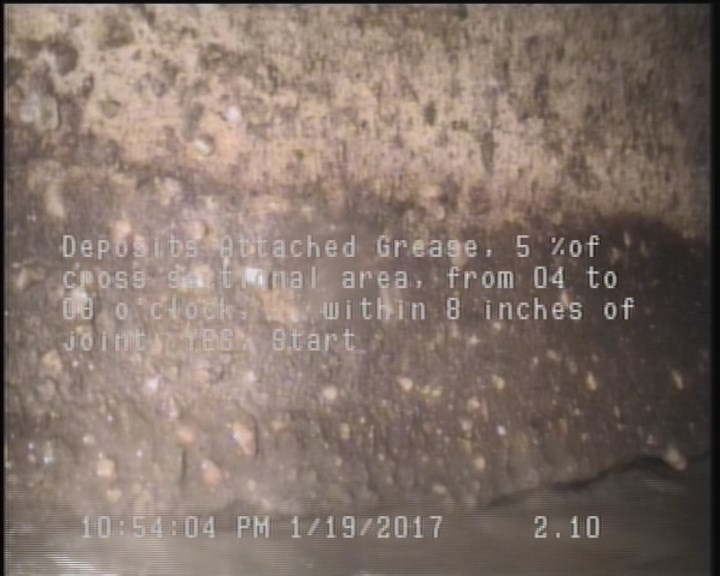

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

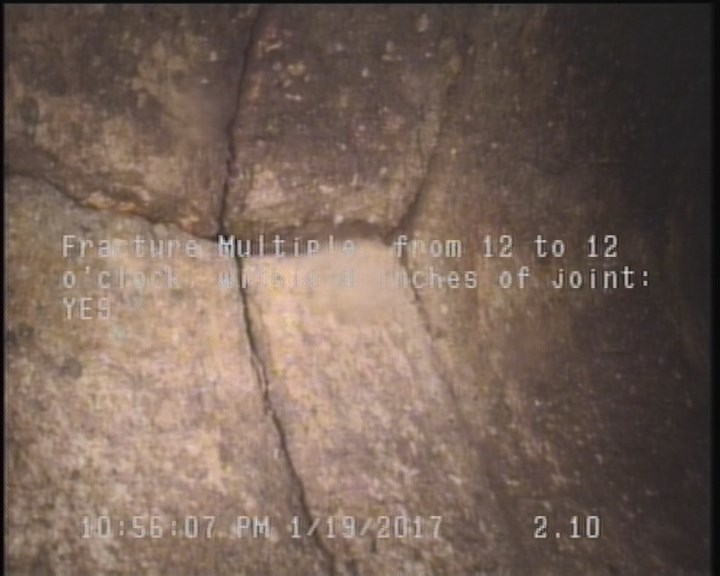

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    2.1 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

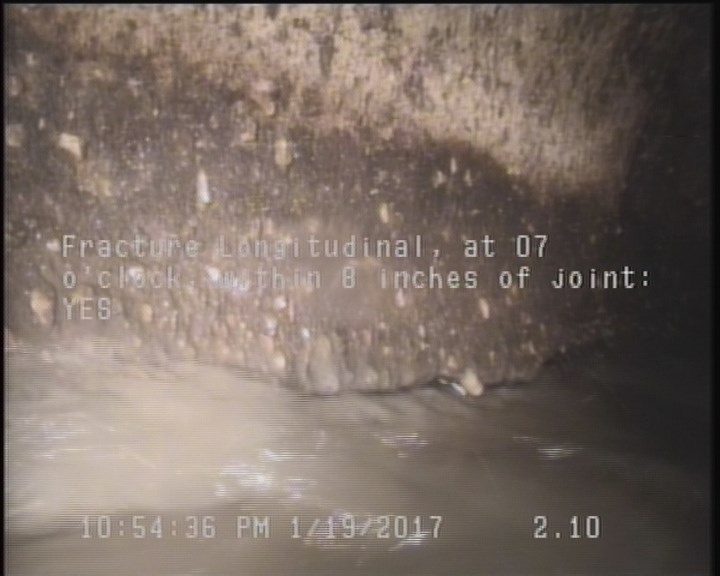

  • Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES

    2.1 ft. - Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES

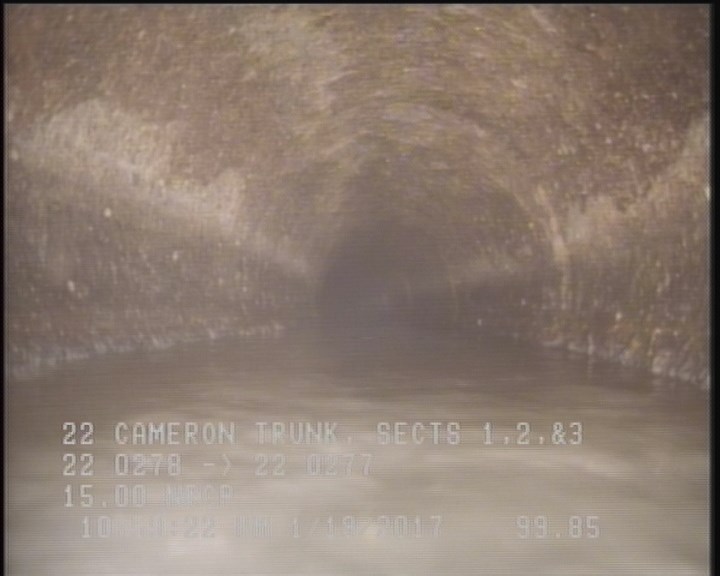

  • General Photograph

    99.8 ft. - General Photograph

All inspections of P16564Work order 613442

Observations (17)

DistanceCodeObservation
2.1MGOMAGNESIUM H.O. START
99.8MGP—
154.4DAGS—
154.4SAV—
2.1SAV—
157AMH22 0277
0AMH22 0278
25.9TFC—
146.3VC—
0MWL—
2.1DAGS—
157MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
97.6LL—
154.4MGOMAGNEZIUM H.O. FINISH
2.1FM—
0MWM—
2.1FL—

Properties (5)

additional_info
SC318624
custom_field_two
2
customer
LACSD
datetime
2017-01-19T22:50:28-08:00
sewer_category
Gravity
