Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 19, 2017, 08:23 AM

  • 22 0282_22 0281 _01192017_004248.mpg

Date
01/19/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16568
Time
12:23 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
01/18/17
Pre-Cleaning
No Pre-Cleaning
Media Label
K4082
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0282
Downstream MH
22 0281
Dir. of Survey
Downstream
Length Surveyed
391.8 ft.
Total Length
391.8 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
231
O&M Index
2
O&M Quick
2N11
O&M Rating
155
Overall Index
2
Overall Quick
—
Overall Rating
386
Pipe schematic from manhole 22 0282 to 22 0281
MH: 22 0282MH: 22 0281downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED0 ft. AMH - Upstream Manhole, Survey Begins - 22 02820 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. VC - Vermin Cockroach2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM H.O. START35.5 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"39.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"104.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"181 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"184 ft. MGP - General Photograph237.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"249.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"273.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"318 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"322.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"330.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"384 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"388.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish388.4 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH388.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish391.8 ft. AMH - Downstream Manhole, Survey Ends - 22 0281

Observation photos (3)

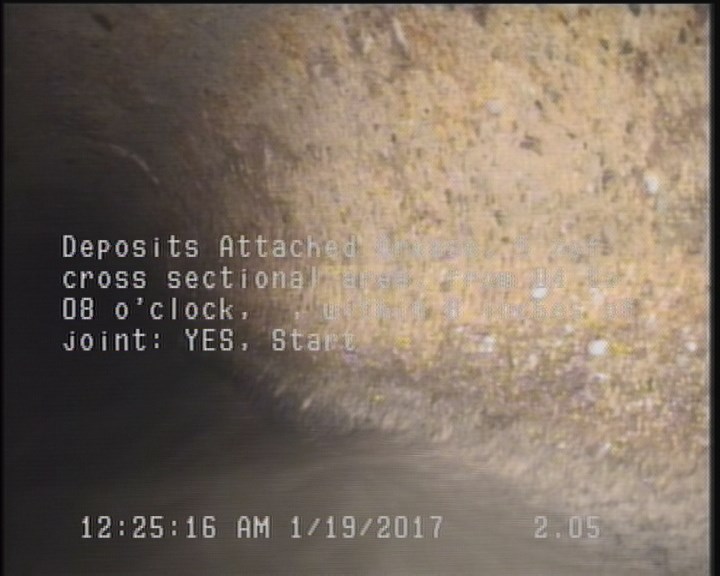

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

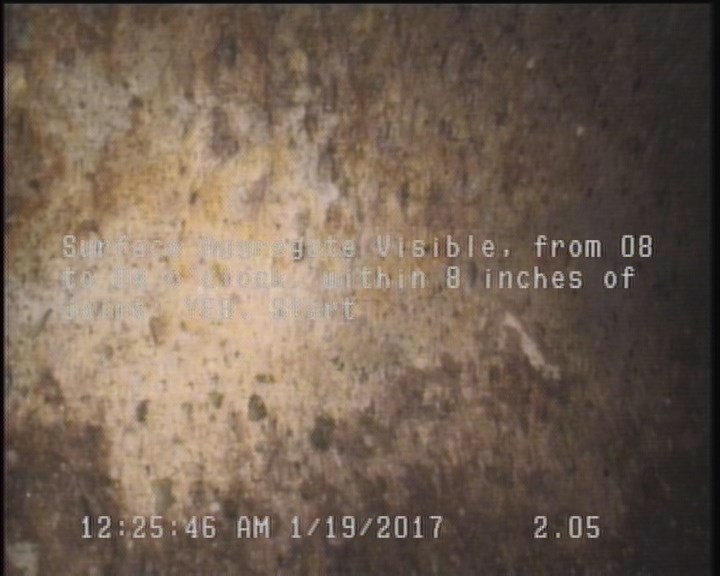

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

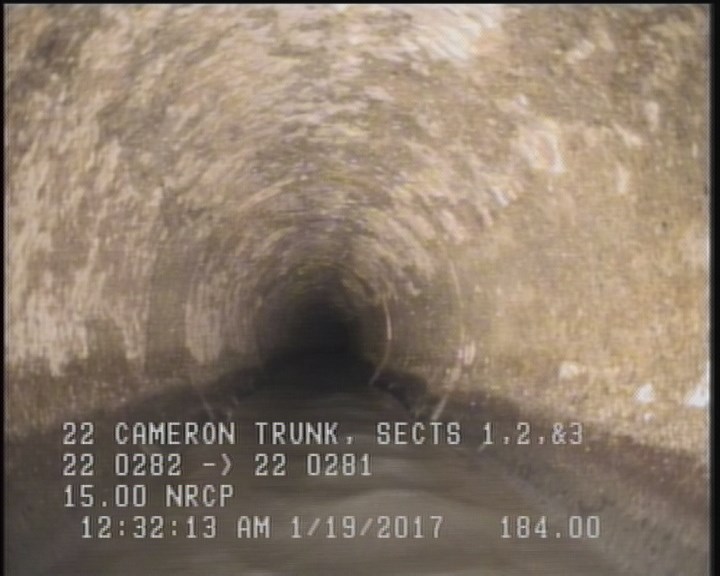

  • General Photograph

    184 ft. - General Photograph

All inspections of P16568Work order 613442

Observations (25)

DistanceCodeObservation
318TFC—
39.5TFA—
237.3TFA—
0MWL—
322.7TBA—
104.1TFA—
2.1DAGS—
249.6TFC—
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
388.4DAGS—
384TBA—
0AMH22 0282
388.4MGOMAGNEZIUM H.O. FINISH
388.4SAV—
0MWM—
181TFA—
2.1SAV—
391.8AMH22 0281
273.6TFA—
0VC—
184MGP—
35.5TBA—
330.2TFA—
2.1MGOMAGNESIUM H.O. START

Properties (5)

additional_info
SC318623
custom_field_two
3
customer
LACSD
datetime
2017-01-19T00:23:05-08:00
sewer_category
Gravity
