Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 10:03 AM

  • 22 0298_22 0297_01182017_023000.mpg

Date
01/18/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16584
Time
2:03 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4081
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0297
Downstream MH
22 0298
Dir. of Survey
Upstream
Length Surveyed
429.9 ft.
Total Length
429.9 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
255
O&M Index
2
O&M Quick
2P00
O&M Rating
170
Overall Index
3
Overall Quick
—
Overall Rating
425
Pipe schematic from manhole 22 0297 to 22 0298
MH: 22 0297MH: 22 0298upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 02983.4 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH3.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish3.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish44 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"48.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"124 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"127.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"179.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"198.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"239.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"272.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"308.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"328.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"361.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"393.6 ft. MGP - General Photograph393.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"422.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"427.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start427.6 ft. MGO - General Observation - MAGNESIUM H.O. START427.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start429.9 ft. MWL - Water Level, 5 %of cross sectional area429.9 ft. AMH - Downstream Manhole, Survey Begins - 22 0297429.9 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (3)

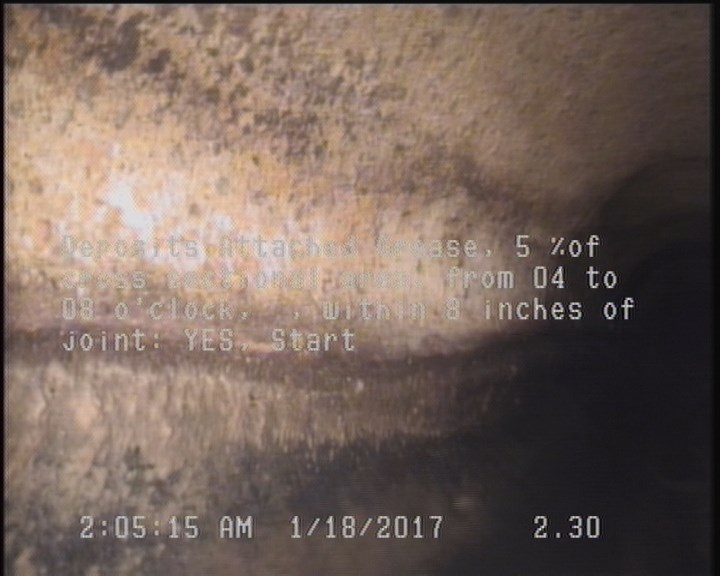

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

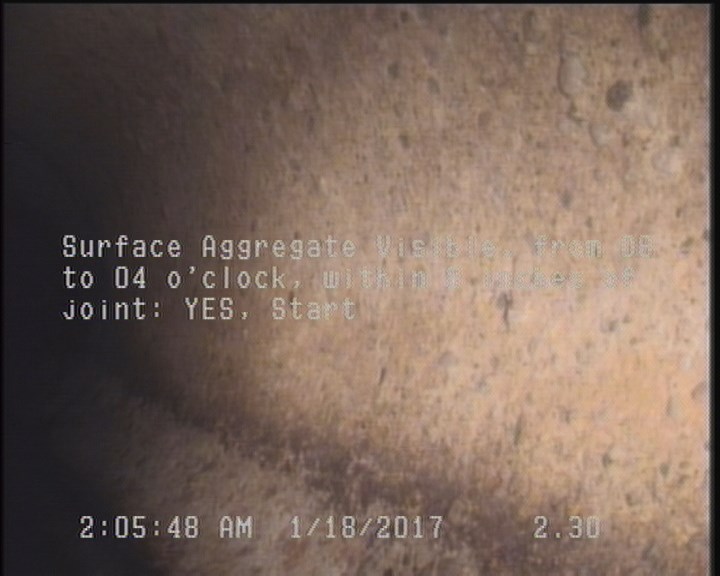

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

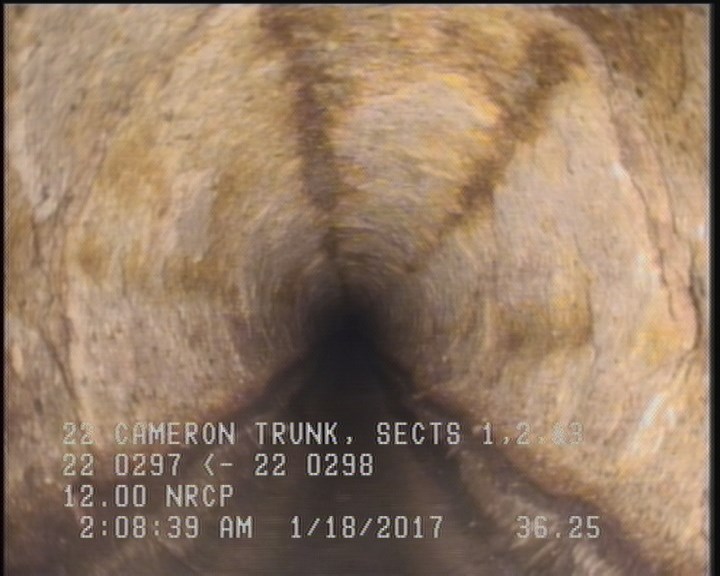

  • General Photograph

    36.3 ft. - General Photograph

All inspections of P16584Work order 613442

Observations (24)

DistanceCodeObservation
426.5MGOMAGNEZIUM H.O. FINISH
250.1TFA—
36.3MGP—
302.1TFA—
385.9TFC—
190TFA—
426.5DAGS—
68.7TF—
0MWL—
0AMH22 0297
157.5TFA—
2.3DAGS—
381.6TFA—
426.5SAV—
7.7TFA—
2.3MGOMAGNESIUM H.O. START
429.9AMH22 0298
2.3SAV—
231.2TFA—
36.2TFC—
121.5TFA—
0MWM—
305.9TFC—
101.3TFC—

Properties (5)

additional_info
SC318622
custom_field_two
3
customer
LACSD
datetime
2017-01-18T02:03:17-08:00
sewer_category
Gravity
