Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 11:34 AM
22 0294_22 0293_01182017_035235.mpg
- Date
- 01/18/2017
- W/O
- 613442
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16580
- Time
- 3:34 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4081
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_613442_TV22014_JAN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0294
- Downstream MH
- 22 0293
- Dir. of Survey
- Downstream
- Length Surveyed
- 377 ft.
- Total Length
- 377.1 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 222
- O&M Index
- 2
- O&M Quick
- 2N11
- O&M Rating
- 149
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 371
Observation photos (3)

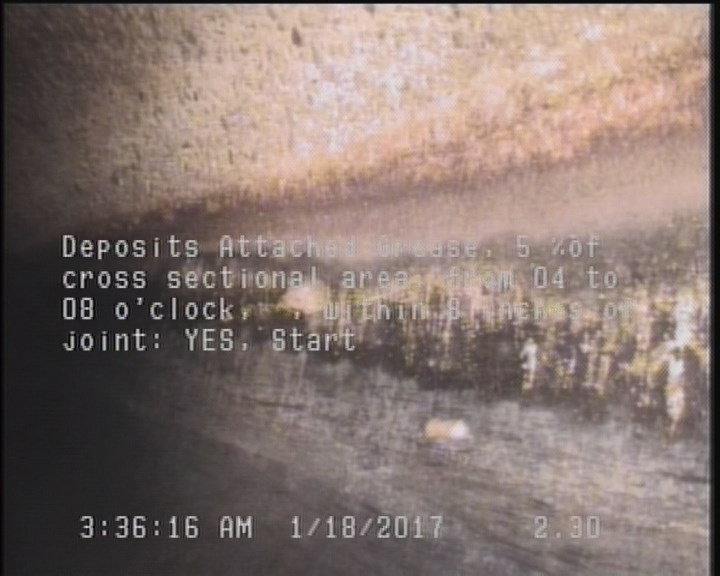

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

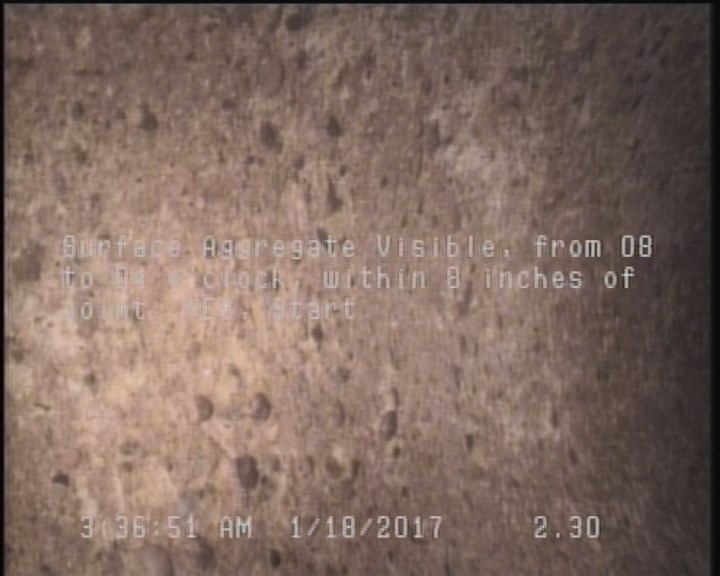

2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

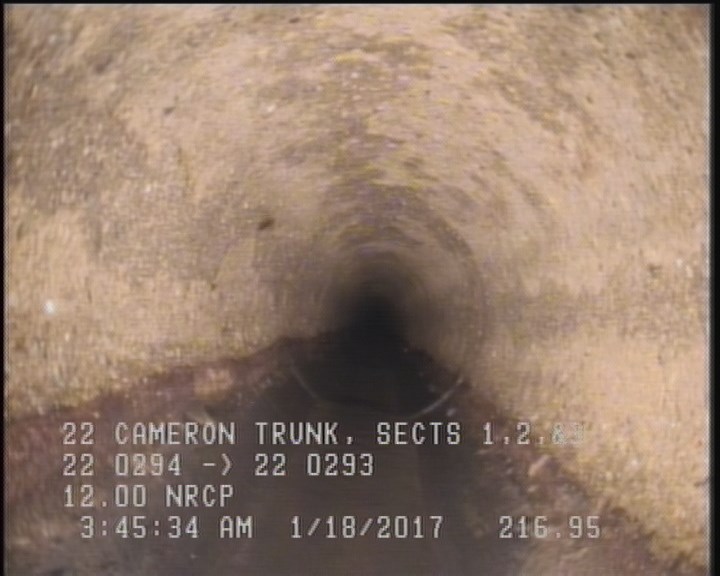

217 ft. - General Photograph
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 246.4 | TFA | — |
| 331.3 | TFA | — |
| 377.1 | AMH | 22 0293 |
| 377 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 35.6 | TFA | — |
| 181.6 | TFA | — |
| 0 | MWL | — |
| 84.1 | TFA | — |
| 374.2 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 217 | MGP | — |
| 307.3 | TFC | — |
| 47.3 | VC | — |
| 374.2 | DAGS | — |
| 2.3 | MGO | MAGNESIUM H.O. START |
| 374.2 | SAV | — |
| 2.3 | DAGS | — |
| 2.3 | SAV | — |
| 0 | AMH | 22 0294 |
Properties (5)
- additional_info
- SC318622
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-18T03:34:11-08:00
- sewer_category
- Gravity
