Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 19, 2017, 08:01 AM

  • 22 0283_22 0282_01192017_002208.mpg

Date
01/19/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16569
Time
12:01 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4082
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0283
Downstream MH
22 0282
Dir. of Survey
Downstream
Length Surveyed
293.5 ft.
Total Length
293.6 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
174
O&M Index
2
O&M Quick
2K12
O&M Rating
126
Overall Index
2
Overall Quick
—
Overall Rating
300
Pipe schematic from manhole 22 0283 to 22 0282
MH: 22 0283MH: 22 0282downstream0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02830 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. MGO - General Observation - MAGNESIUM H.O. START2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"26.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"91.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"135.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"147.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"152.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"172.8 ft. MGP - General Photograph208.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"252.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"270.3 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock, Start - DEBRIS NOT VISIBLE281 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"288.4 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock, Finish - DEBRIS NOT VISIBLE290.5 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH290.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish290.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish293.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED293.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0282293.6 ft. VC - Vermin Cockroach293.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE

Observation photos (3)

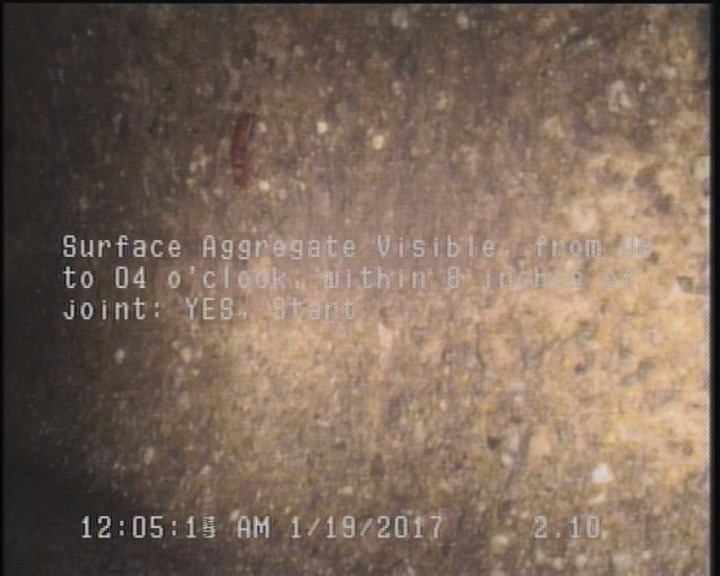

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

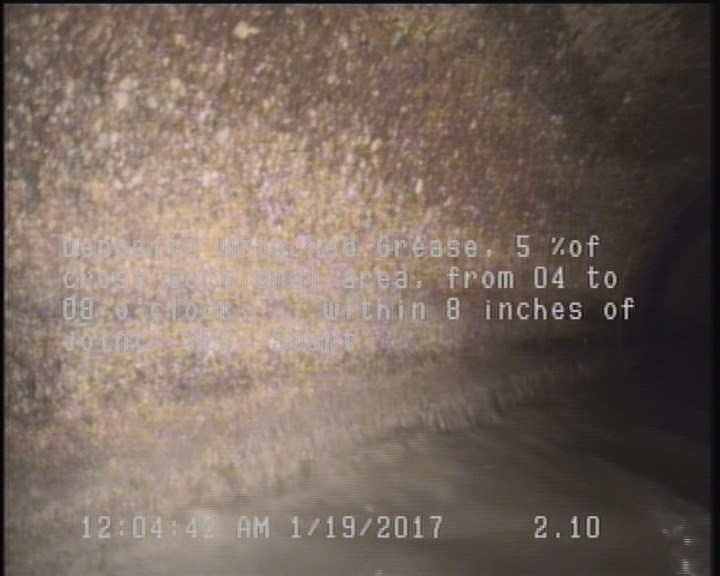

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

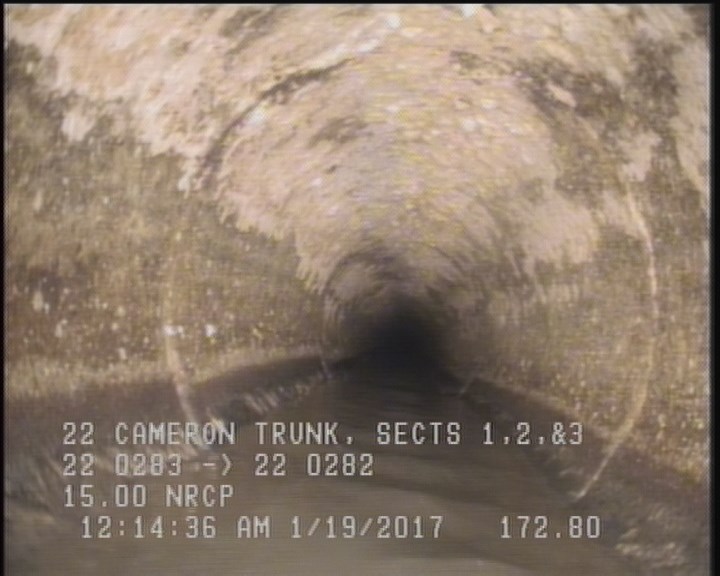

  • General Photograph

    172.8 ft. - General Photograph

All inspections of P16569Work order 613442

Observations (27)

DistanceCodeObservation
270.3OBZDEBRIS NOT VISIBLE
288.4OBZDEBRIS NOT VISIBLE
152.1TFA—
172.8MGP—
281TFA—
2.1MGOMAGNESIUM H.O. START
293.6MGOCONNECTION AT MH 3 O'CLOCK CAPPED
91.6TFA—
147.7TFC—
290.5MGOMAGNEZIUM H.O. FINISH
293.6AMH22 0282
26.9TFA—
293.6VC—
135.8TFA—
293.6MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
2.1SAV—
6.7TFA—
290.5SAV—
208.5TFA—
0VC—
0MWM—
0AMH22 0283
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
0MWL—
252.8TFA—
2.1DAGS—
290.5DAGS—

Properties (5)

additional_info
SC318623
custom_field_two
3
customer
LACSD
datetime
2017-01-19T00:01:53-08:00
sewer_category
Gravity
