Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 07:02 AM
22 0277_22 0276 _01192017_231810.mpg
- Date
- 01/19/2017
- W/O
- 613442
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16563
- Time
- 11:02 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4083
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_613442_TV22014_JAN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0277
- Downstream MH
- 22 0276
- Dir. of Survey
- Downstream
- Length Surveyed
- 302.7 ft.
- Total Length
- 302.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

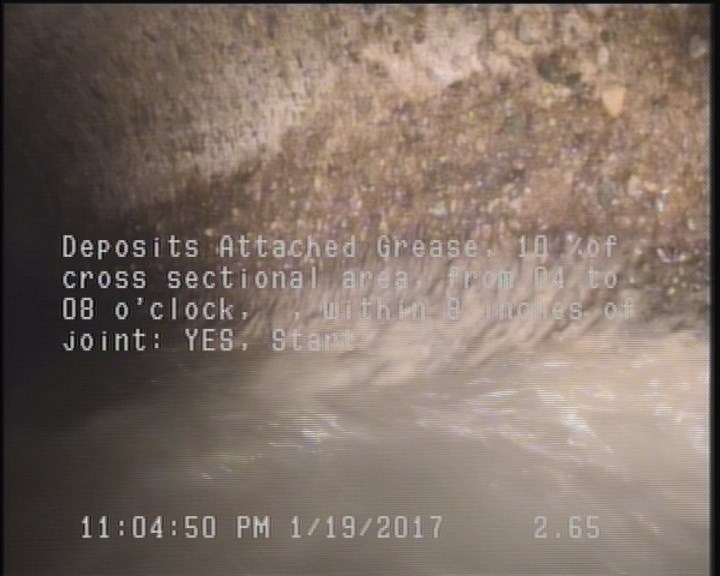

2.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

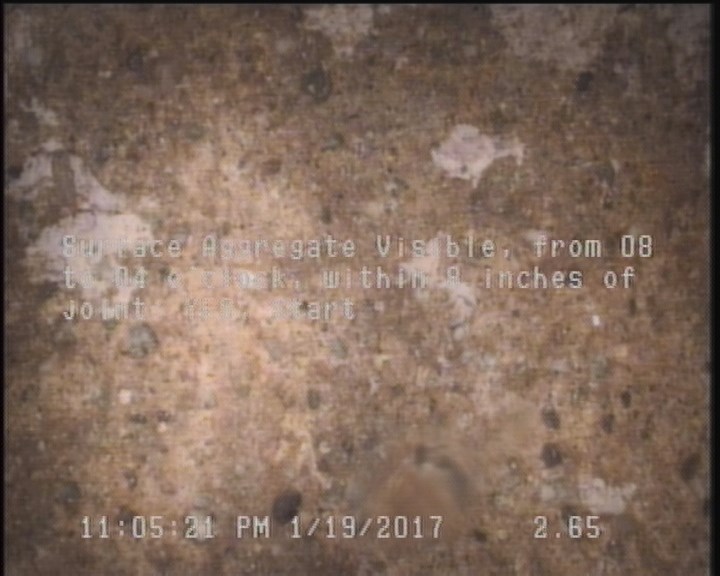

2.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

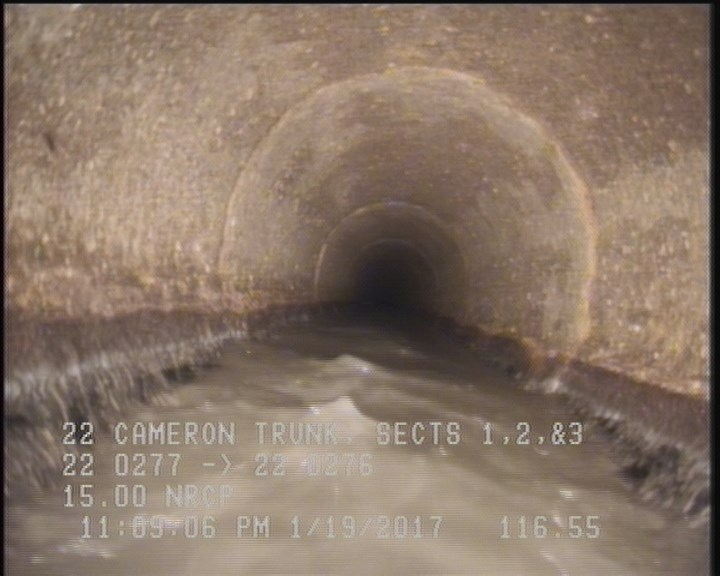

116.6 ft. - General Photograph

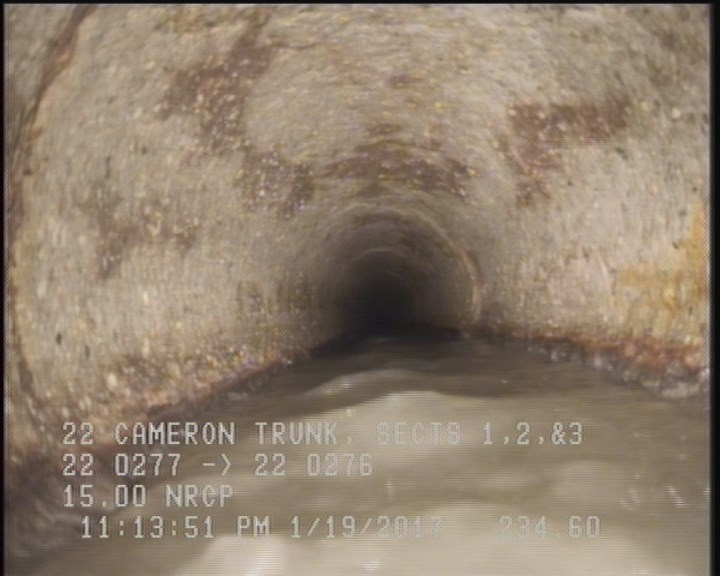

234.6 ft. - General Photograph
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 302.7 | AMH | 22 0276 |
| 0 | AMH | 22 0277 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 234.6 | MGP | — |
| 2.7 | DAGS | — |
| 2.7 | SAV | — |
| 2.7 | MGO | MAGNESIUM H.O. START |
| 161.8 | TFA | — |
| 302.7 | MGO | CONNECTION AT MH 3 O'CLOCK MADE |
| 295.2 | VC | — |
| 116.6 | MGP | — |
| 47.6 | TFC | — |
| 0 | MWL | — |
| 229.4 | TFC | — |
| 116.6 | TF | — |
| 299.8 | SAV | — |
| 0 | MWM | — |
| 299.8 | DAGS | — |
| 299.8 | MGO | MAGNEZIUM H.O. FINISH |
Properties (5)
- additional_info
- SC318624
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-19T23:02:34-08:00
- sewer_category
- Gravity
