Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 11:06 AM
22 0295_22 0294_01182017_032642.mpg
- Date
- 01/18/2017
- W/O
- 613442
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00793
- PipeID
- P16581
- Time
- 3:06 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4081
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_613442_TV22014_JAN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0295
- Downstream MH
- 22 0294
- Dir. of Survey
- Downstream
- Length Surveyed
- 358.1 ft.
- Total Length
- 358.1 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 2
- O&M Quick
- 2M11
- O&M Rating
- 143
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 356
Observation photos (3)

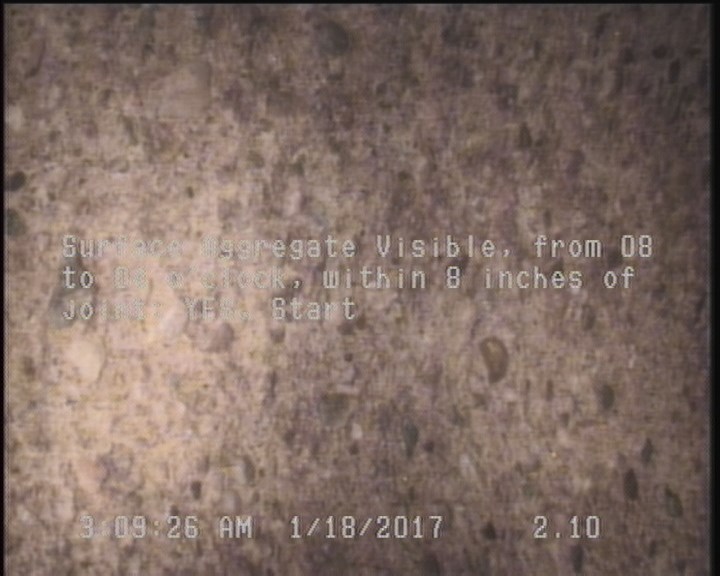

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

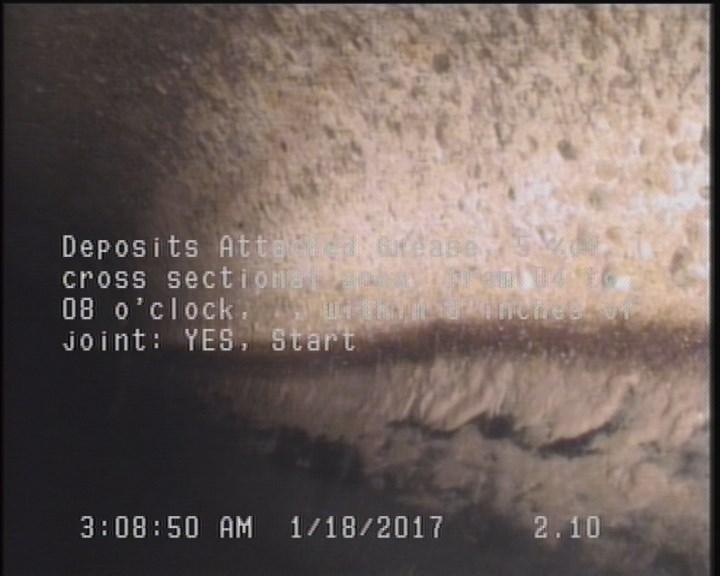

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

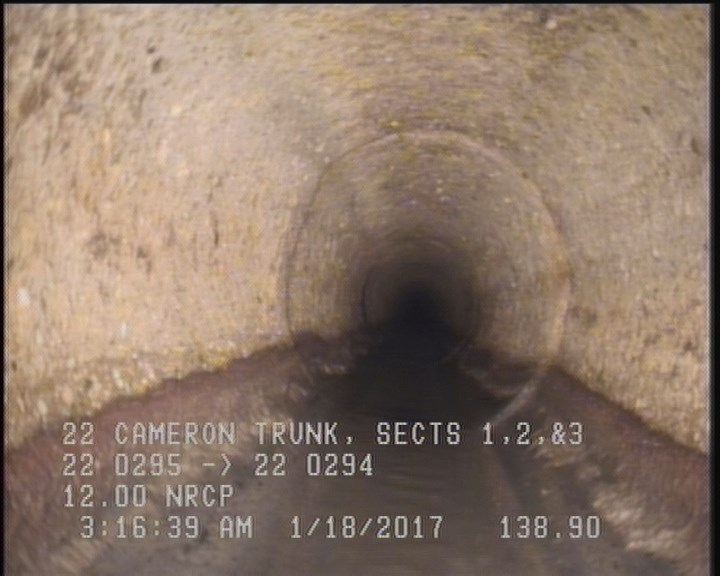

138.9 ft. - General Photograph
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAV | — |
| 358.1 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 289.2 | TFA | — |
| 147.2 | TFA | — |
| 355.8 | DAGS | — |
| 66 | TFC | — |
| 25.7 | TFA | — |
| 355.8 | MGO | MAGNEZIUM H.O. FINISH |
| 115 | TFA | — |
| 232 | TFA | — |
| 0 | MWM | — |
| 138.9 | MGP | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 0 | VC | — |
| 2.1 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 0 | MWL | — |
| 358.1 | AMH | 22 0294 |
| 355.8 | SAV | — |
| 0 | AMH | 22 0295 |
Properties (5)
- additional_info
- SC318622
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-18T03:06:21-08:00
- sewer_category
- Gravity
