Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 09:30 AM

  • 22 0297_22 0296_01182017_020243.mpg

Date
01/18/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16583
Time
1:30 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4081
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0296
Downstream MH
22 0297
Dir. of Survey
Upstream
Length Surveyed
419.9 ft.
Total Length
419.9 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
249
O&M Index
2
O&M Quick
2P11
O&M Rating
167
Overall Index
2
Overall Quick
—
Overall Rating
416
Pipe schematic from manhole 22 0296 to 22 0297
MH: 22 0296MH: 22 0297upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 02973.7 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH3.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish28.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"64.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"89.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"129.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"157.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"186.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"214.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"251.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"283.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"303.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"352.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"356.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"370.6 ft. MGO - General Observation - MAGNESIUM H.O. START417.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start417.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start419.9 ft. MWL - Water Level, 5 %of cross sectional area419.9 ft. AMH - Downstream Manhole, Survey Begins - 22 0296419.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE419.9 ft. VC - Vermin Cockroach419.9 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (2)

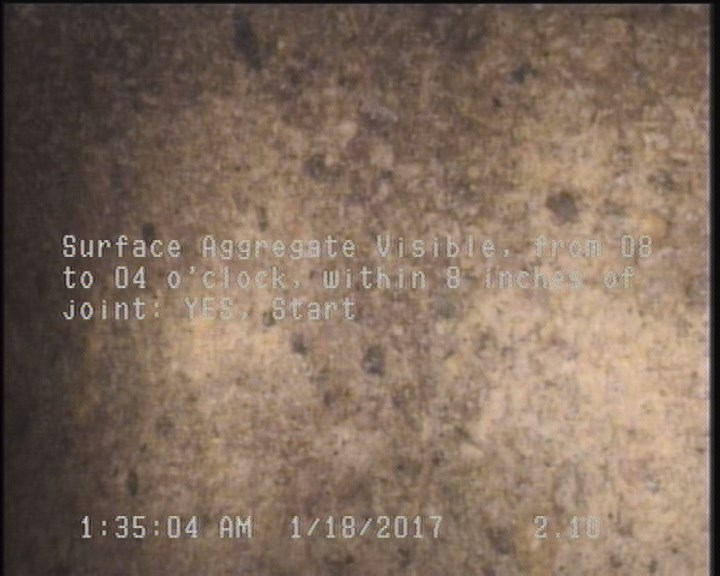

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

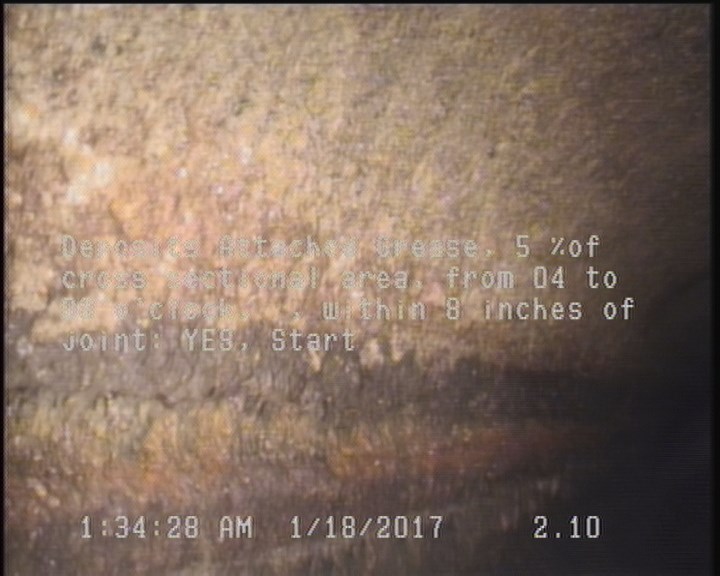

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P16583Work order 613442

Observations (24)

DistanceCodeObservation
290.3TFA—
116.2TFA—
67.5TFA—
330.8TFC—
2.1SAV—
168.6TFA—
233.7TFA—
416.2MGOMAGNEZIUM H.O. FINISH
0MWL—
416.2SAV—
391.3TFC—
2.1DAGS—
136.7TFA—
355.3TFA—
0AMH22 0296
205.1TFC—
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
262.1TFA—
0VC—
419.9AMH22 0297
0MWM—
63.6TFC—
49.3MGOMAGNESIUM H.O. START
416.2DAGS—

Properties (5)

additional_info
SC318622
custom_field_two
3
customer
LACSD
datetime
2017-01-18T01:30:39-08:00
sewer_category
Gravity
