Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 19, 2017, 10:43 AM

  • 22 0290_22 0289_01192017_030128.mpg

Date
01/19/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16576
Time
2:43 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4082
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0289
Downstream MH
22 0290
Dir. of Survey
Upstream
Length Surveyed
272.9 ft.
Total Length
272.9 ft.
Structural Index
3
Structural Quick
3J21
Structural Rating
164
O&M Index
2
O&M Quick
2J13
O&M Rating
111
Overall Index
2
Overall Quick
—
Overall Rating
275
Pipe schematic from manhole 22 0289 to 22 0290
MH: 22 0289MH: 22 0290upstream0 ft. VC - Vermin Cockroach0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Ends - 22 02901.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish5.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES5.6 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH47.3 ft. VC - Vermin Cockroach52.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"69.1 ft. MGP - General Photograph69.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"159 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"159 ft. MGP - General Photograph163.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"198.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"220.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"268.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"270.7 ft. MGO - General Observation - MAGNESIUM H.O. START270.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start270.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start272.9 ft. AMH - Downstream Manhole, Survey Begins - 22 0289272.9 ft. MWL - Water Level, 10 %of cross sectional area272.9 ft. VC - Vermin Cockroach272.9 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (5)

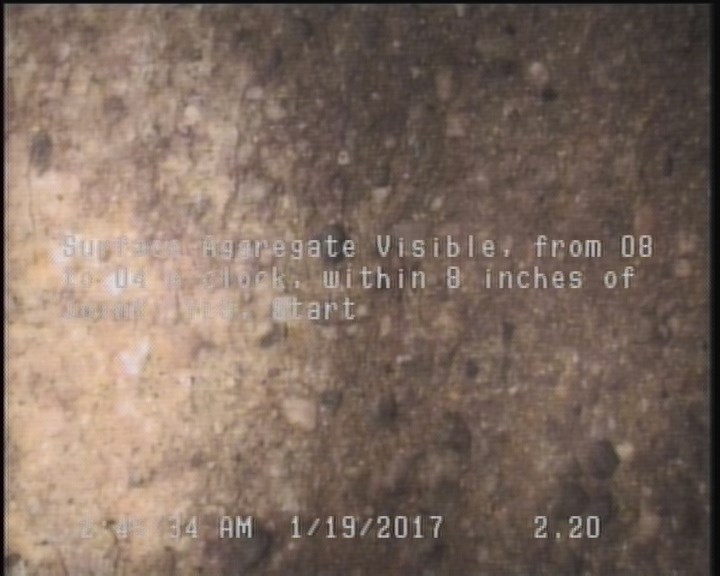

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

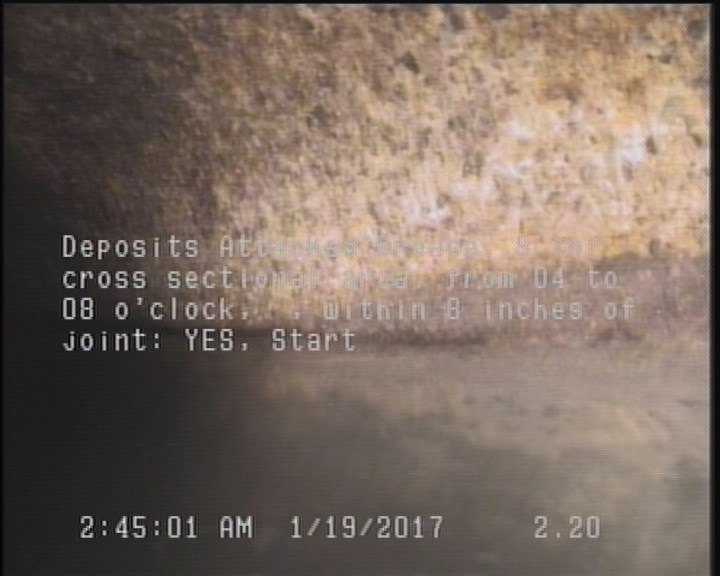

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • General Photograph

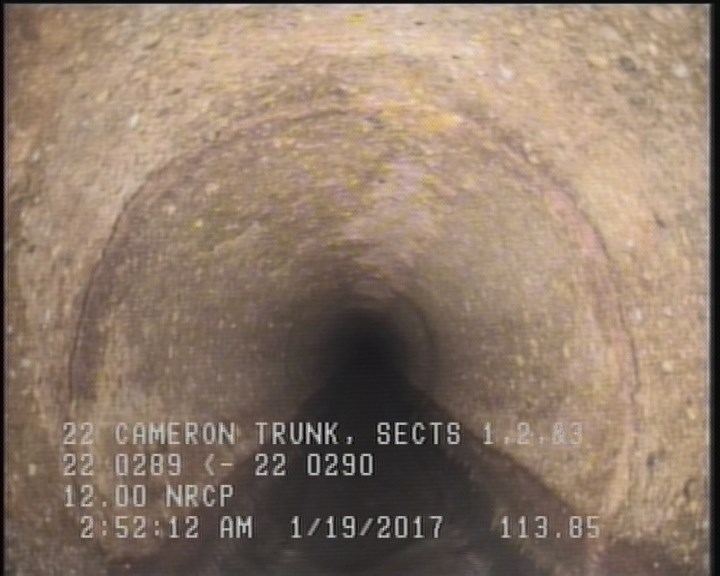

    113.9 ft. - General Photograph

  • General Photograph

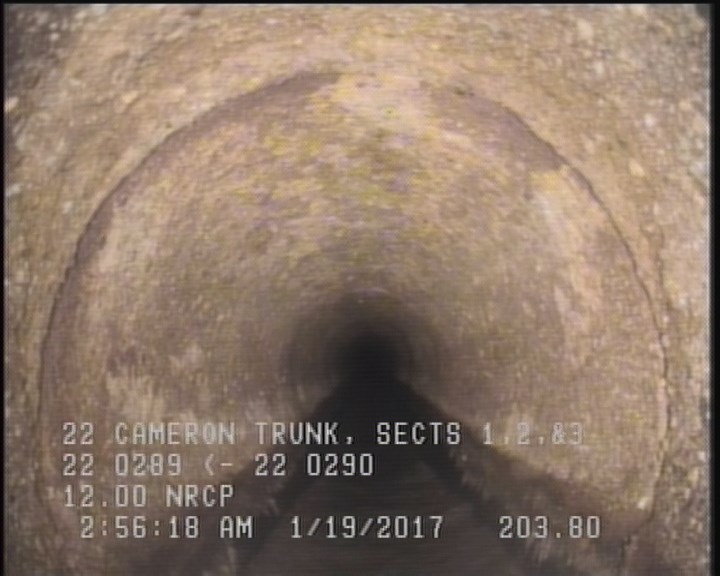

    203.8 ft. - General Photograph

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    267.3 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P16576Work order 613442

Observations (24)

DistanceCodeObservation
272.9VC—
2.2MGOMAGNESIUM H.O. START
267.3CL—
4TF—
0AMH22 0289
52.6TFA—
203.6TFA—
74.3TFA—
0MWL—
0VC—
113.9TFA—
272.9MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
271SAV—
271DAGS—
267.3MGOMAGNEZIUM H.O. FINISH
113.9MGP—
220.7TFA—
272.9AMH22 0290
0MWM—
2.2SAV—
203.8MGP—
2.2DAGS—
109.7TFA—
225.6VC—

Properties (5)

additional_info
SC318623
custom_field_two
3
customer
LACSD
datetime
2017-01-19T02:43:21-08:00
sewer_category
Gravity
