Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 10:43 AM

  • 22 0296_22 0295_01182017_030513.mpg

Date
01/18/2017
W/O
613442
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00793
PipeID
P16582
Time
2:43 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4081
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_613442_TV22014_JAN2017
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0296
Downstream MH
22 0295
Dir. of Survey
Downstream
Length Surveyed
312.7 ft.
Total Length
312.7 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
183
O&M Index
2
O&M Quick
2K12
O&M Rating
126
Overall Index
2
Overall Quick
—
Overall Rating
309
Pipe schematic from manhole 22 0296 to 22 0295
MH: 22 0296MH: 22 0295downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 22 02960 ft. MWL - Water Level, 5 %of cross sectional area2.1 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 06 o'clock, , within 8 inches of joint: YES2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM H.O. START44.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"56.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"125.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"177.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"214.8 ft. MGP - General Photograph230.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"258.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"309.5 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH309.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish309.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish312.7 ft. AMH - Downstream Manhole, Survey Ends - 22 0295312.7 ft. VC - Vermin Cockroach312.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE

Observation photos (4)

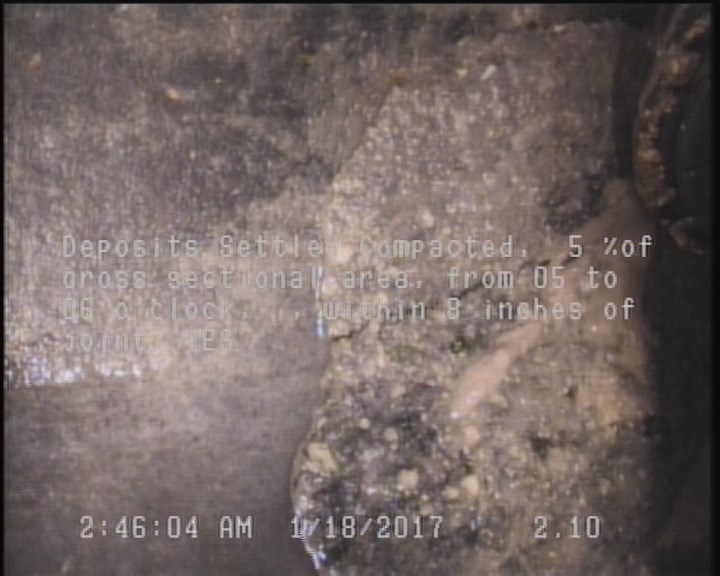

  • Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 06 o'clock, , within 8 inches of joint: YES

    2.1 ft. - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 06 o'clock, , within 8 inches of joint: YES

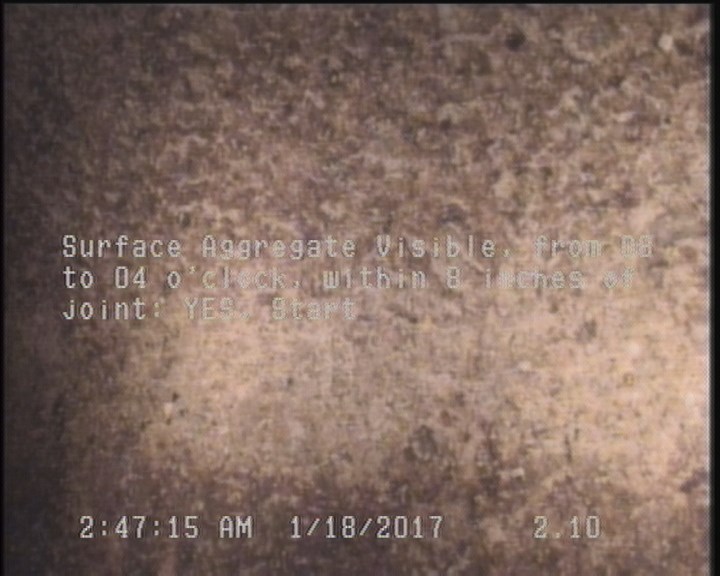

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

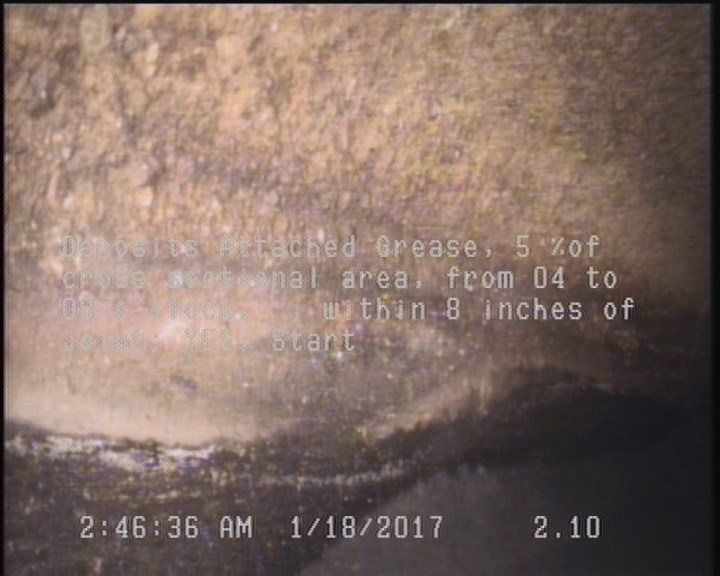

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

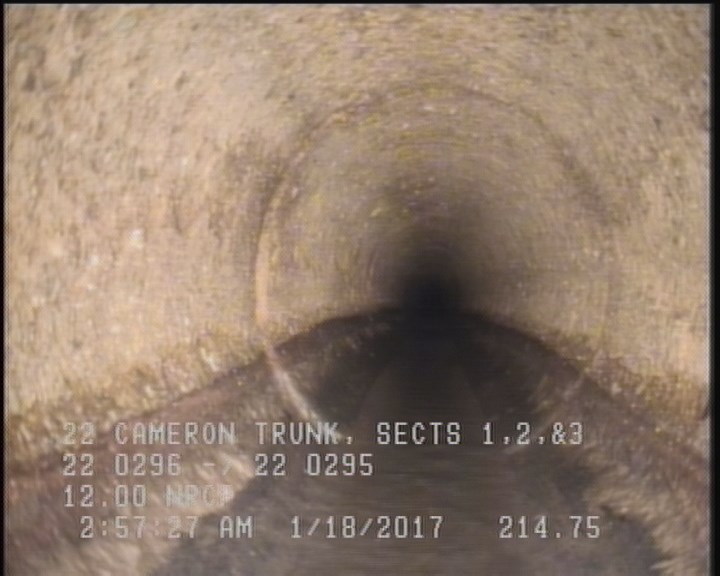

  • General Photograph

    214.8 ft. - General Photograph

All inspections of P16582Work order 613442

Observations (22)

DistanceCodeObservation
309.5MGOMAGNEZIUM H.O. FINISH
2.1DSC—
2.1SAV—
2.1DAGS—
258.9TFC—
312.7AMH22 0295
309.5DAGS—
309.5SAV—
125.3TFA—
0MWM—
312.7VC—
312.7MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
56.4TFA—
0VC—
2.1MGOMAGNESIUM H.O. START
230.6TFA—
214.8MGP—
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
177.8TFA—
44.1TFC—
0AMH22 0296
0MWL—

Properties (5)

additional_info
SC318622
custom_field_two
3
customer
LACSD
datetime
2017-01-18T02:43:15-08:00
sewer_category
Gravity
