Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 05:55 AM
E 0044_E 0043_20161026_231852.mp4
- Date
- 10/26/2016
- W/O
- 597390
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00028
- PipeID
- P11271
- Time
- 10:55 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3865
- Sewer Name
- E JOINT OUTFALL E - UNIT 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_597390_TV01088_OCT2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- E 0043
- Downstream MH
- E 0044
- Dir. of Survey
- Upstream
- Length Surveyed
- 296.8 ft.
- Total Length
- 296.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 3121
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

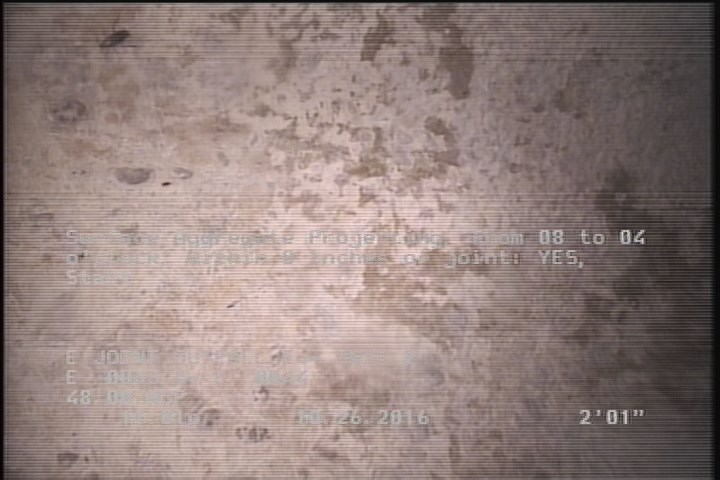

0 ft. - General Observation - ROACHES IN MH
2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

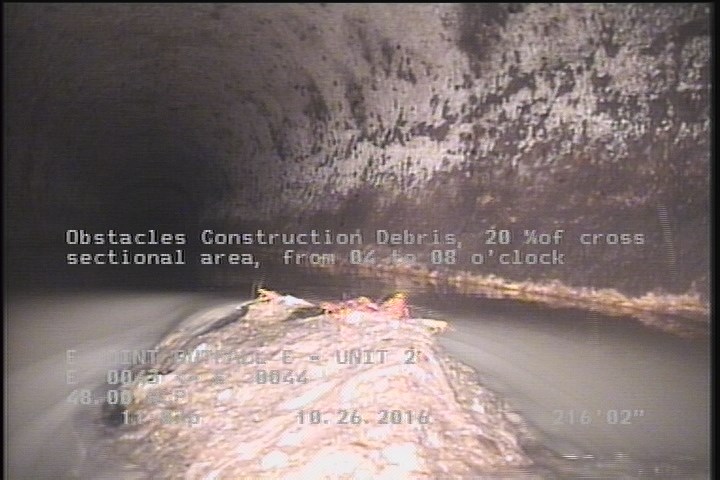

216.2 ft. - Obstacles Construction Debris, 20 %of cross sectional area, from 04 to 08 o'clock, Start

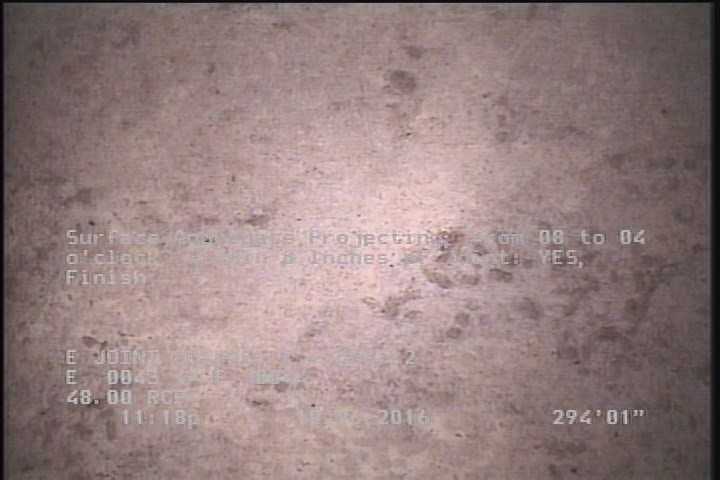

294 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 296.8 | OBN | — |
| 0 | MWL | — |
| 294 | VC | — |
| 0 | MWM | — |
| 20.4 | OBN | NOT VISIBLE |
| 294 | SAP | — |
| 0 | AMH | E0 043 |
| 216.2 | OBN | — |
| 2.1 | MGO | MAGNESIUM COATING START |
| 2.1 | SAP | — |
| 294 | MGO | MAGNESIUM COATING FINISH |
| 0 | MGO | ROACHES IN MH |
| 296.8 | AMH | E 0044 |
Properties (5)
- additional_info
- SC301945
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-26T22:55:32-07:00
- sewer_category
- Gravity
