Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 06:49 AM

  • E 0039_E 0038_20161027_001435.mp4

Date
10/26/2016
W/O
597390
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00028
PipeID
P11266
Time
11:49 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3865
Sewer Name
E JOINT OUTFALL E - UNIT 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
18
Purpose
Routine Assessment
Project
WO_597390_TV01088_OCT2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
E 0039
Downstream MH
E 0038
Dir. of Survey
Downstream
Length Surveyed
489.5 ft.
Total Length
489.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole E 0039 to E 0038
MH: E 0039MH: E 0038downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES IN MH0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - E 00392.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM COATING START241.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"241.3 ft. VC - Vermin Cockroach484.6 ft. VC - Vermin Cockroach484.6 ft. MGO - General Observation - MAGNESIUM COATING FINISH484.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish489.5 ft. AMH - Downstream Manhole, Survey Ends - E 0038

Observation photos (2)

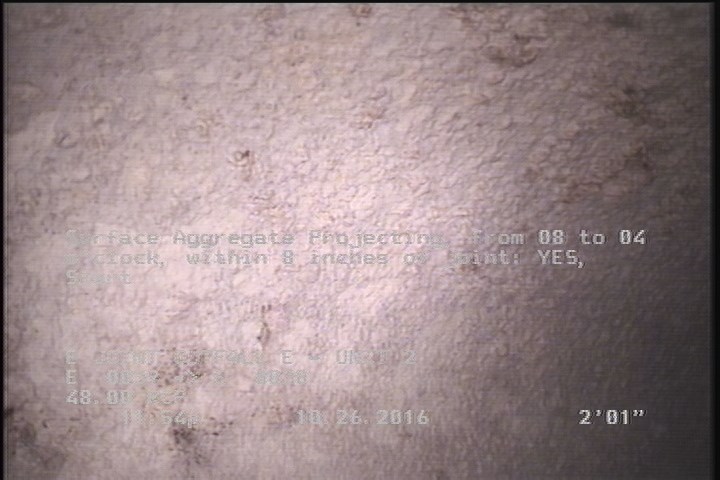

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

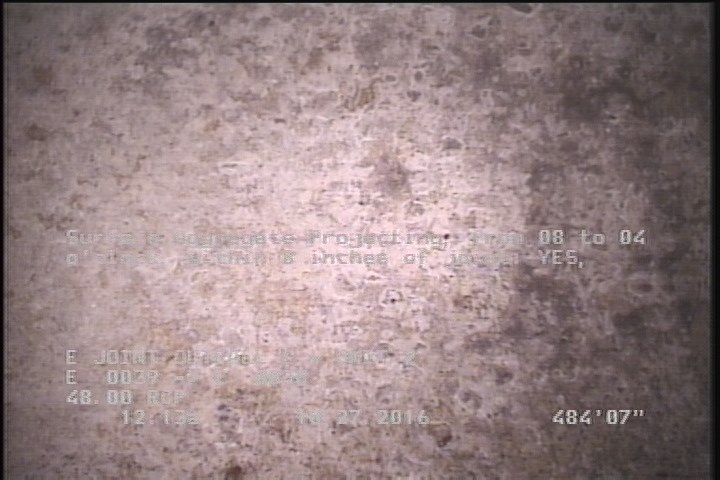

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    484.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P11266Work order 597390

Observations (12)

DistanceCodeObservation
484.6VC—
241.3TFA—
0MWM—
2.1SAP—
489.5AMHE 0038
241.3VC—
484.6MGOMAGNESIUM COATING FINISH
484.6SAP—
0MGOROACHES IN MH
0MWL—
0AMHE 0039
2.1MGOMAGNESIUM COATING START

Properties (5)

additional_info
SC301945
custom_field_two
4
customer
LACSD
datetime
2016-10-26T23:49:00-07:00
sewer_category
Gravity
