Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 08:56 AM
E 0031_E 0030_20161026_020647.mp4
- Date
- 10/26/2016
- W/O
- 597390
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00028
- PipeID
- P07614
- Time
- 1:56 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3864
- Sewer Name
- E JOINT OUTFALL E - UNIT 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_597390_TV01088_OCT2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- E 0031
- Downstream MH
- E 0030
- Dir. of Survey
- Downstream
- Length Surveyed
- 15.2 ft.
- Total Length
- 15.2 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

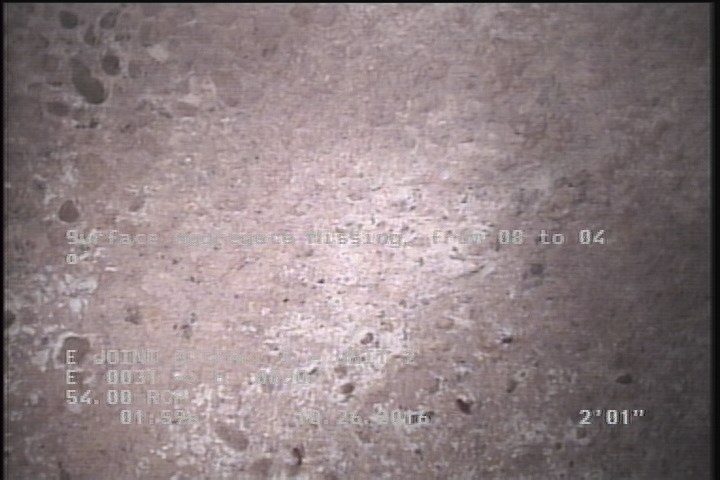

2.1 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.1 ft. - Obstacles Construction Debris, 15 %of cross sectional area, from 04 to 08 o'clock, Start - NOT VISIBLE
15.2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
15.2 ft. - Survey Abandoned - SEVERE DEBRIS 25%
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 15.2 | SAM | — |
| 12.4 | LR | — |
| 2.1 | SAM | — |
| 15.2 | MGO | MAGNESIUM COATING FINISH |
| 2.1 | MGO | MAGNESIUM COATING START |
| 0 | MWM | — |
| 2.1 | OBN | NOT VISIBLE |
| 0 | AMH | E 0031 |
| 15.2 | MSA | SEVERE DEBRIS 25% |
| 15.2 | OBN | NOT VISIBLE |
| 0 | MWL | — |
| 15.2 | OBN | NOT VISIBLE |
Properties (5)
- additional_info
- SC301944
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-26T01:56:20-07:00
- sewer_category
- Gravity
