Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 07:52 AM
32 0132A_32 0132_10272016_005325.mp4
- Date
- 10/27/2016
- W/O
- 592230
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19880
- Time
- 12:52 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3795
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_592230_TV32048_SEP2016
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 0132A
- Downstream MH
- 32 0132
- Dir. of Survey
- Downstream
- Length Surveyed
- 402.9 ft.
- Total Length
- 402.9 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 240
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 160
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 400
Observation photos (2)

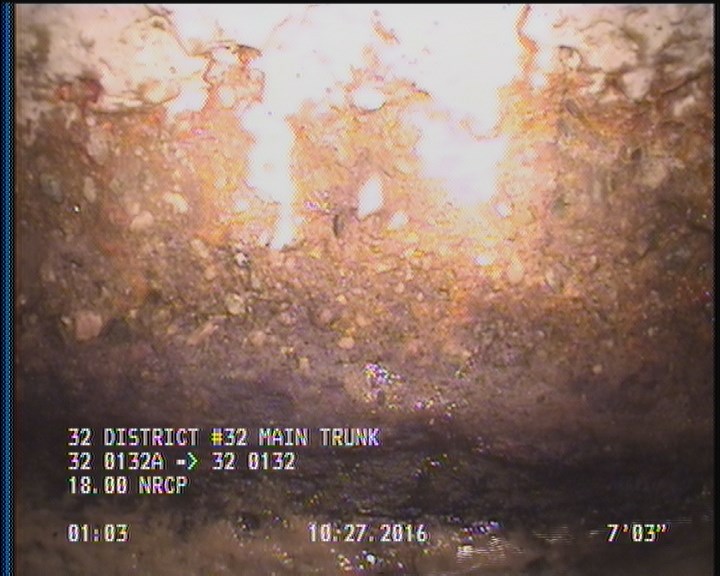

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

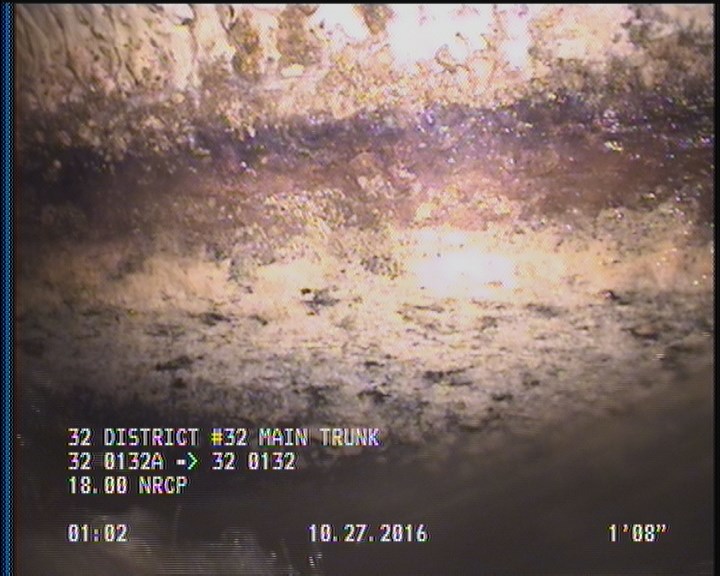

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 32 0132A |
| 2 | SAP | — |
| 401 | DAGS | — |
| 0 | MWL | — |
| 401 | SAP | — |
| 0 | MWM | — |
| 2 | MGO | MAG COATING 90% |
| 402.9 | AMH | 32 0132 |
| 2 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC306333
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-27T00:52:23-07:00
- sewer_category
- Gravity
