Wastewater/Activity/PacpInspection/1.0Oct 27, 2016, 10:03 AM
32 0129_32 0128_10272016_033406.mp4
- Date
- 10/27/2016
- W/O
- 592230
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19875
- Time
- 3:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3795
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_592230_TV32048_SEP2016
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 0129
- Downstream MH
- 32 0128
- Dir. of Survey
- Downstream
- Length Surveyed
- 399.5 ft.
- Total Length
- 399.5 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 237
- O&M Index
- 2
- O&M Quick
- 412O
- O&M Rating
- 162
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 399
Observation photos (2)

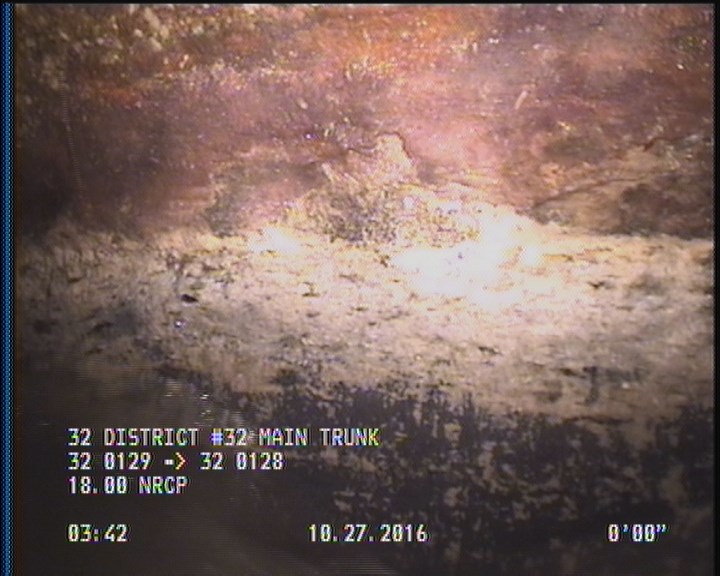

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

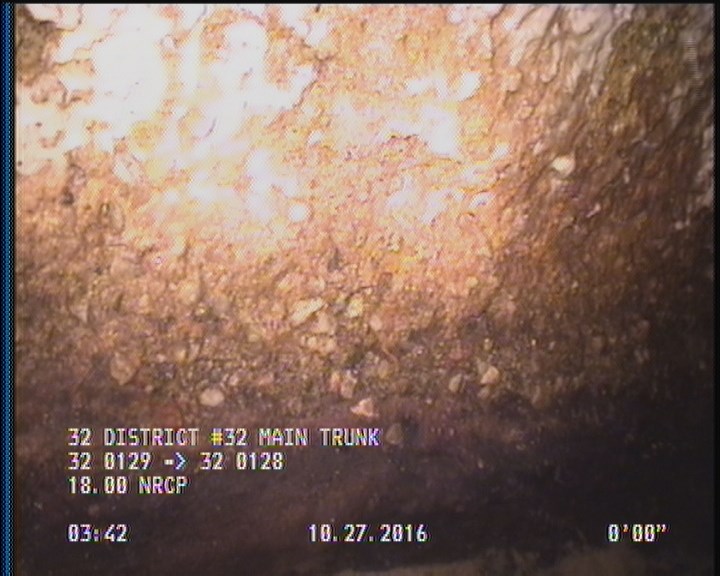

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 397.1 | DAGS | — |
| 2 | DAGS | — |
| 399.5 | AMH | 32 0128 |
| 0 | MWM | — |
| 2 | SAP | — |
| 0 | AMH | 32 0129 |
| 0 | MWL | — |
| 2 | MGO | MAG COAT 80% |
| 397.1 | SAP | — |
Properties (5)
- additional_info
- SC306333
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-27T03:03:15-07:00
- sewer_category
- Gravity
