Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 07:30 AM
C 0674_C 0673A _28092016_003146.mp4
- Date
- 09/28/2016
- W/O
- 592158
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01114
- PipeID
- P24253
- Time
- 12:30 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3591
- Sewer Name
- C JOINT OUTFALL C - UNIT 3H
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_592158_TV29041_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- C 0674
- Downstream MH
- C 0673A
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.9 ft.
- Total Length
- 39.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

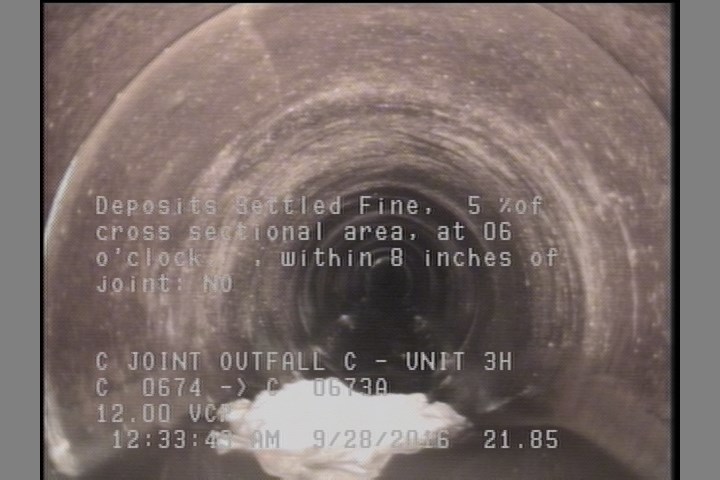

21.9 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

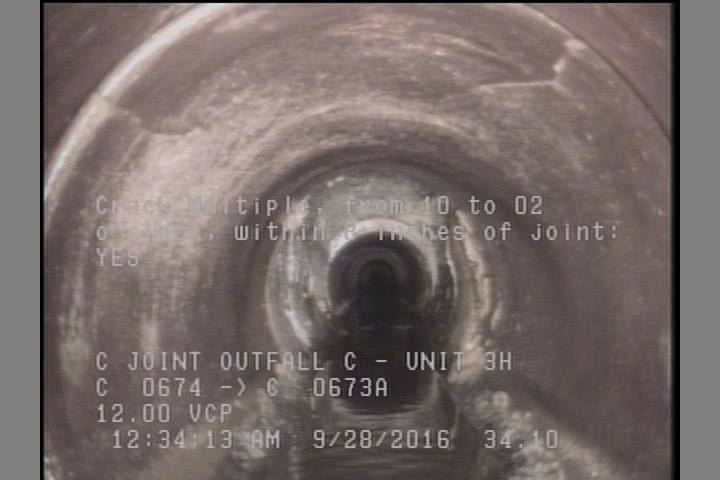

34.1 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 34.1 | CM | — |
| 0 | MWM | — |
| 21.9 | DSF | — |
| 0 | MWL | — |
| 39.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 39.9 | AMH | C 0673A |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | C 0674 |
Properties (6)
- additional_info
- SC306186
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-28T00:30:50-07:00
- sewer_category
- Gravity
- year_laid
- 37482
