Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 08:29 AM
C 0672_C 0671 _28092016_012939.mp4
- Date
- 09/28/2016
- W/O
- 592158
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01114
- PipeID
- P23941
- Time
- 1:29 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3591
- Sewer Name
- C JOINT OUTFALL C - UNIT 3H
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_592158_TV29041_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- C 0672
- Downstream MH
- C 0671
- Dir. of Survey
- Downstream
- Length Surveyed
- 124.5 ft.
- Total Length
- 124.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

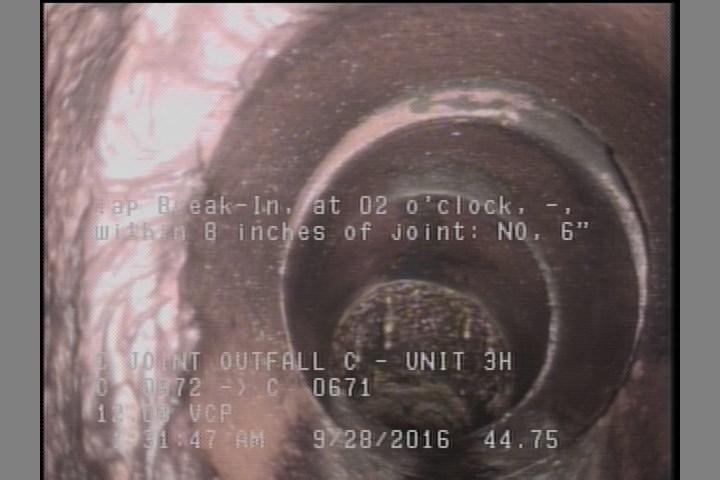

44.8 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

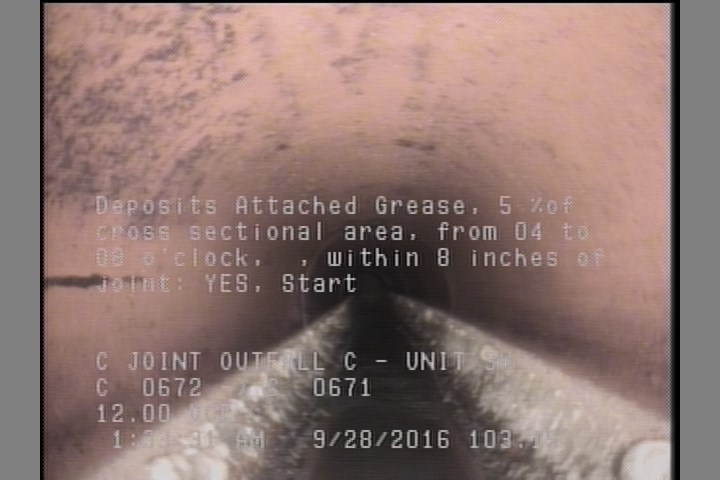

103.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 44.8 | TB | — |
| 121.7 | DAGS | — |
| 0 | MWL | — |
| 124.5 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 124.5 | AMH | C 0671 |
| 103.2 | DAGS | — |
| 0 | AMH | C 0672 |
| 0 | MWM | — |
| 45.2 | TFC | — |
Properties (6)
- additional_info
- SC306186
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-28T01:29:06-07:00
- sewer_category
- Gravity
- year_laid
- 37482
