Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 08:11 AM

  • C 0673_C 0672A _28092016_011140.mp4

Date
09/28/2016
W/O
592158
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01114
PipeID
P24254
Time
1:11 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3591
Sewer Name
C JOINT OUTFALL C - UNIT 3H
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_592158_TV29041_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
C 0673
Downstream MH
C 0672A
Dir. of Survey
Downstream
Length Surveyed
73.2 ft.
Total Length
73.2 ft.
Structural Index
2
Structural Quick
3221
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole C 0673 to C 0672A
MH: C 0673MH: C 0672Adownstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 067310.1 ft. CM - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES19.1 ft. CC - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES33.4 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6"37.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES51.6 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES63.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"73.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED73.2 ft. AMH - Downstream Manhole, Survey Ends - C 0672A

Observation photos (4)

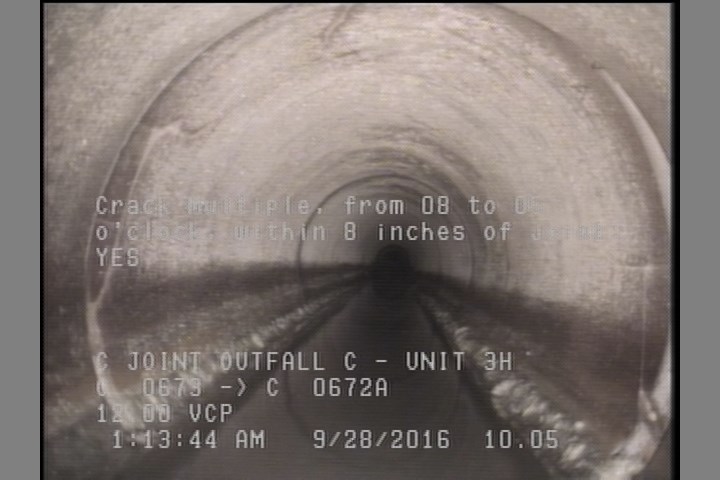

  • Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

    10.1 ft. - Crack Multiple, from 08 to 05 o'clock, within 8 inches of joint: YES

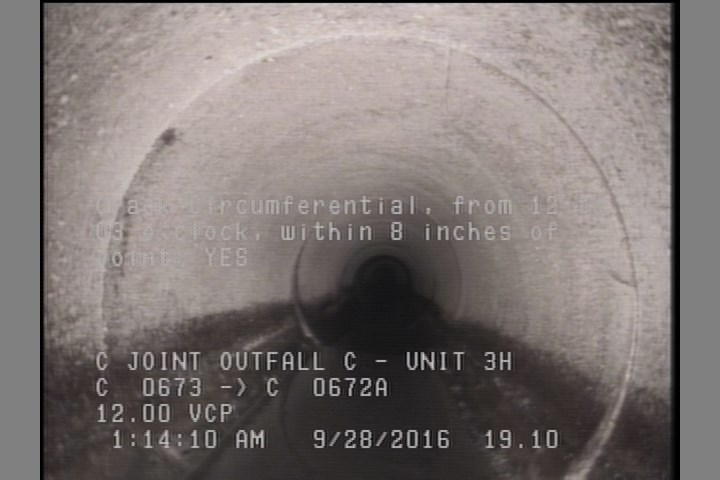

  • Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES

    19.1 ft. - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES

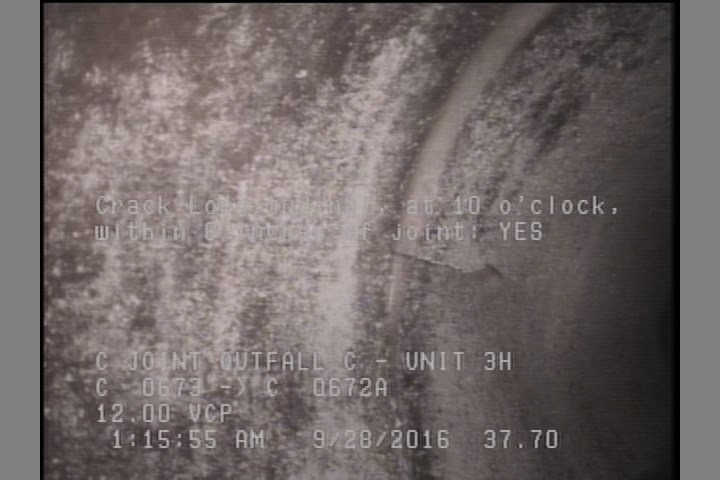

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    37.7 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

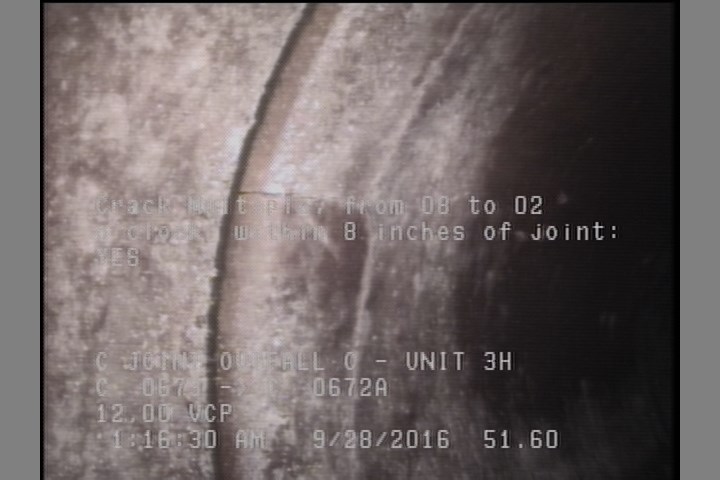

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    51.6 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

All inspections of P24254Work order 592158

Observations (11)

DistanceCodeObservation
73.2MGOCONNECTION AT MH 9 O'CLOCK CAPPED
33.4TF—
73.2AMHC 0672A
37.7CL—
0MWL—
19.1CC—
51.6CM—
0MWM—
10.1CM—
63.9TF—
0AMHC 0673

Properties (6)

additional_info
SC306186
custom_field_two
3
customer
LACSD
datetime
2016-09-28T01:11:06-07:00
sewer_category
Gravity
year_laid
37482
