Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 06:20 AM
C 0678_C 0677 _27092016_232232.mp4
- Date
- 09/27/2016
- W/O
- 592158
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01114
- PipeID
- P23947
- Time
- 11:20 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3591
- Sewer Name
- C JOINT OUTFALL C - UNIT 3H
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_592158_TV29041_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- C 0677
- Downstream MH
- C 0678
- Dir. of Survey
- Upstream
- Length Surveyed
- 333.2 ft.
- Total Length
- 333.2 ft.
- Structural Index
- 2
- Structural Quick
- 2300
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

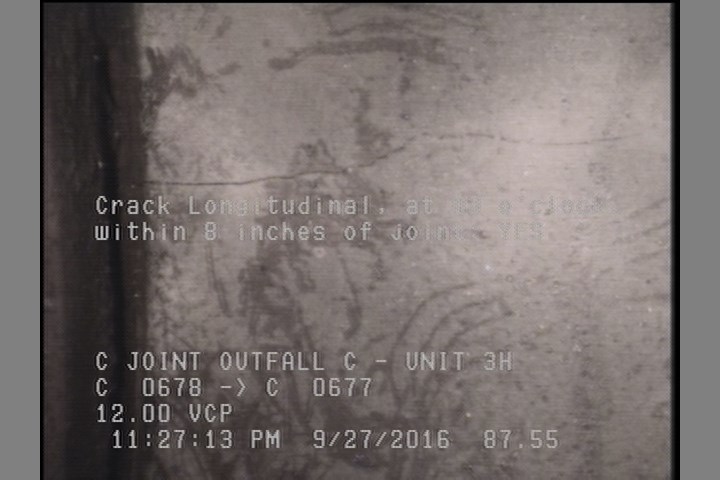

87.6 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

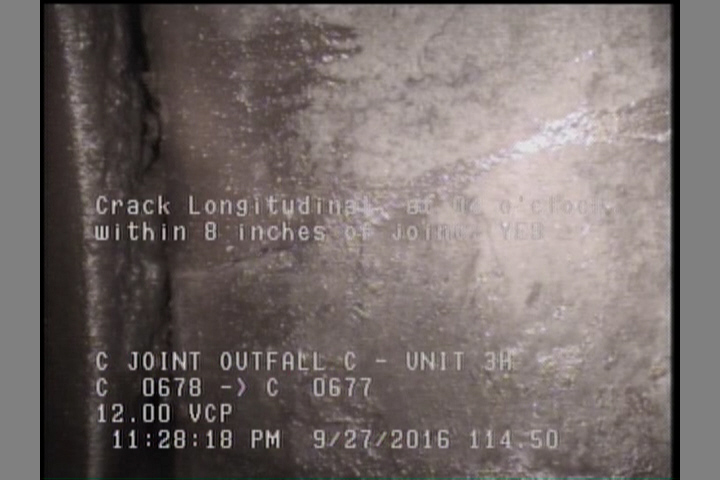

114.5 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

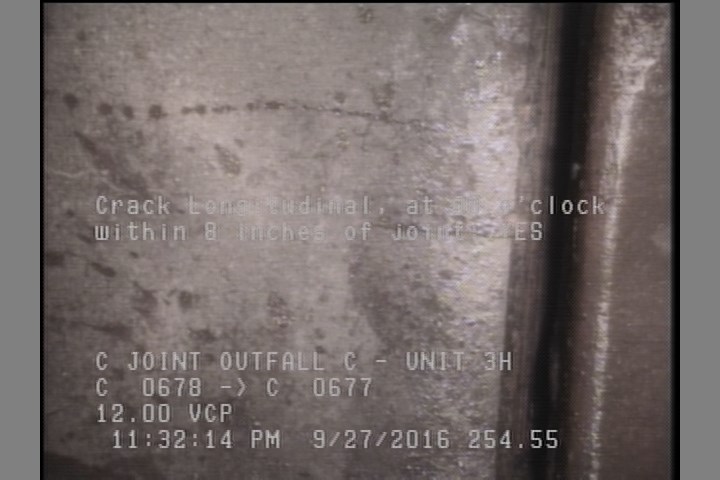

254.6 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 158.8 | TF | — |
| 333.2 | MGO | CONNECTION AT MH 12 O'CLOCK |
| 0 | MWL | — |
| 254.6 | CL | — |
| 333.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 37.7 | TF | — |
| 0 | MWM | — |
| 0 | AMH | C 0677 |
| 333.2 | AMH | C 0678 |
| 333.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 87.6 | CL | — |
| 114.5 | CL | — |
Properties (6)
- additional_info
- SC306186
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-27T23:20:44-07:00
- sewer_category
- Gravity
- year_laid
- 37482
