Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 05:30 AM
C 0681_C 0680 _27092016_223024.mp4
- Date
- 09/27/2016
- W/O
- 592158
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01114
- PipeID
- P23950
- Time
- 10:30 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3591
- Sewer Name
- C JOINT OUTFALL C - UNIT 3H
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_592158_TV29041_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- C 0680
- Downstream MH
- C 0681
- Dir. of Survey
- Upstream
- Length Surveyed
- 109.4 ft.
- Total Length
- 109.5 ft.
- Structural Index
- 3
- Structural Quick
- 4133
- Structural Rating
- 16
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (5)

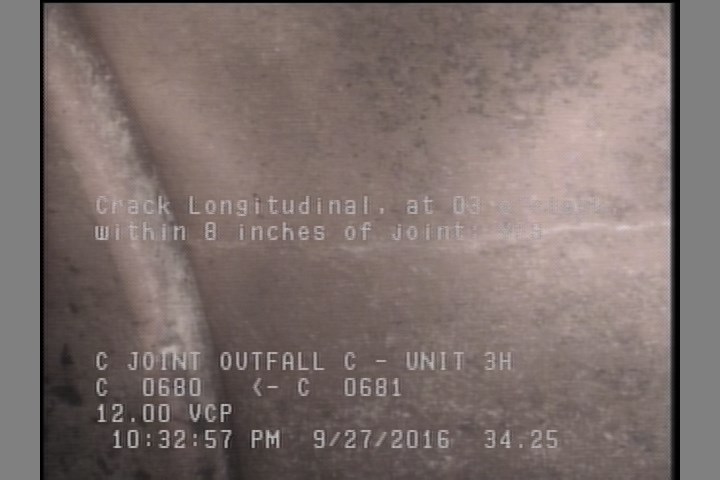

34.2 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

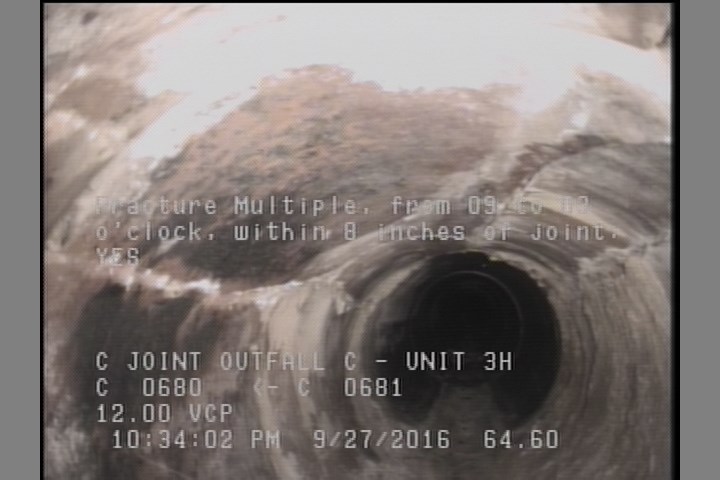

64.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

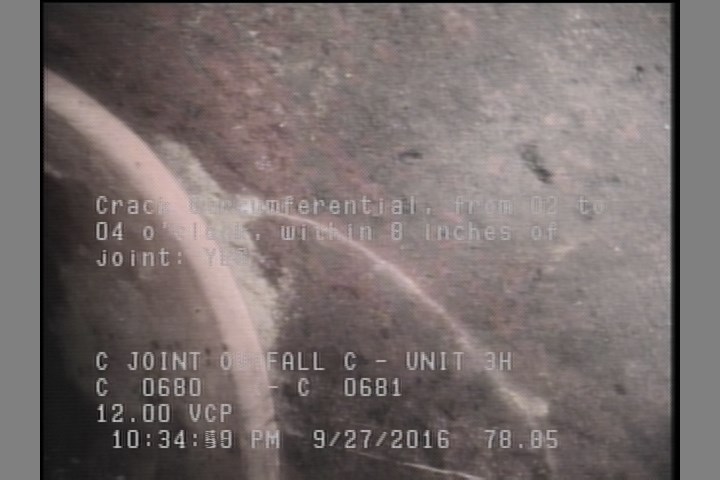

78.9 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES

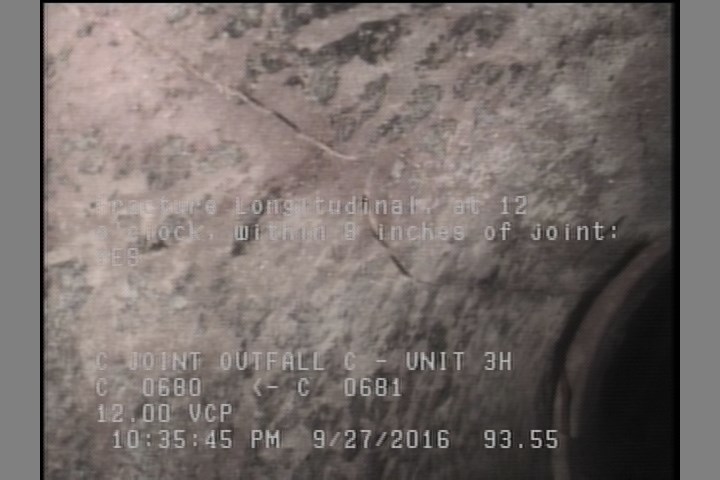

93.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

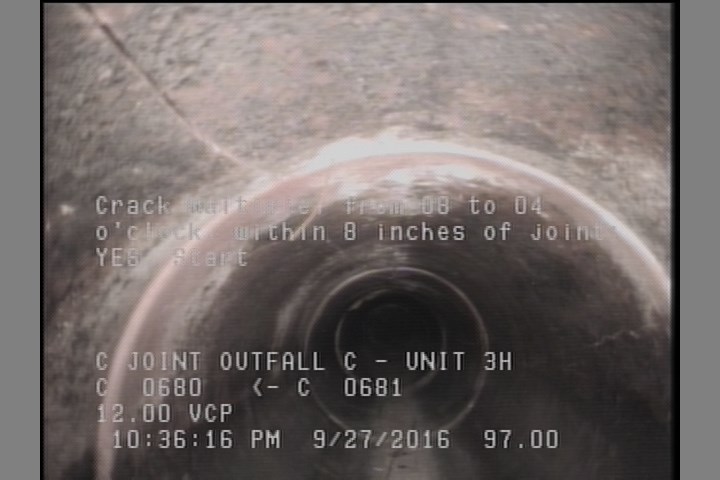

97 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 109.4 | CM | — |
| 0 | MWM | — |
| 109.5 | AMH | C 0681 |
| 97 | CM | — |
| 34.2 | CL | — |
| 78.9 | CC | — |
| 0 | AMH | C 0680 |
| 93.6 | FL | — |
| 64.6 | FM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC306186
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-27T22:30:15-07:00
- sewer_category
- Gravity
- year_laid
- 37482
