Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 08:18 AM

  • C 0672A_C 0672 _28092016_011920.mp4

Date
09/28/2016
W/O
592158
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01114
PipeID
P23942
Time
1:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3591
Sewer Name
C JOINT OUTFALL C - UNIT 3H
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_592158_TV29041_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
C 0672A
Downstream MH
C 0672
Dir. of Survey
Downstream
Length Surveyed
255 ft.
Total Length
255 ft.
Structural Index
3
Structural Quick
3H21
Structural Rating
143
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
143
Pipe schematic from manhole C 0672A to C 0672
MH: C 0672AMH: C 0672downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 0672A0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED3.8 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES12.9 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES17.6 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES, Start89.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"249.9 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES, Finish255 ft. AMH - Downstream Manhole, Survey Ends - C 0672

Observation photos (3)

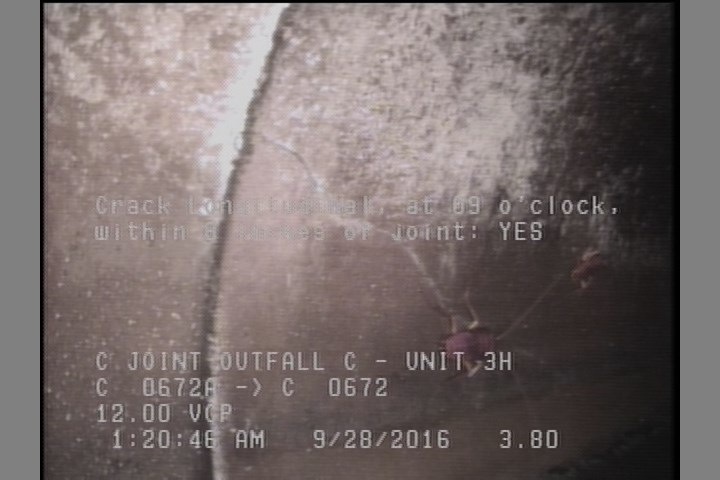

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    3.8 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

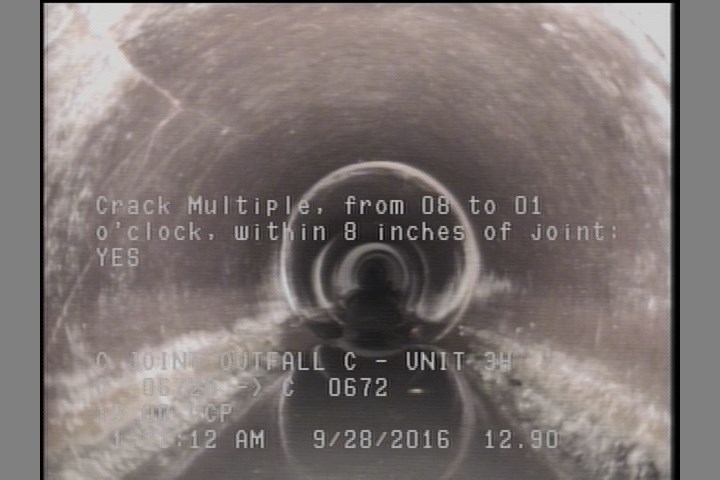

  • Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    12.9 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

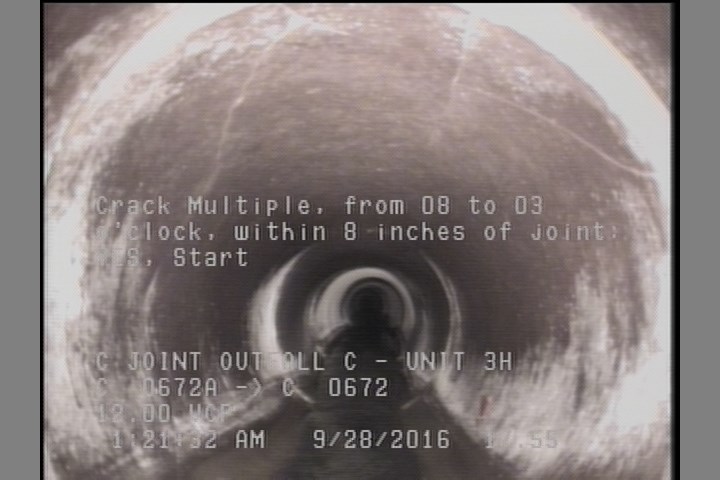

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES, Start

    17.6 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P23942Work order 592158

Observations (11)

DistanceCodeObservation
255AMHC 0672
0MWM—
194.1TF—
12.9CM—
249.9CM—
89.9TF—
0AMHC 0672A
0MWL—
3.8CL—
0MGOCONNECTION AT MH 9 O'CLOCK CAPPED
17.6CM—

Properties (6)

additional_info
SC306186
custom_field_two
3
customer
LACSD
datetime
2016-09-28T01:18:47-07:00
sewer_category
Gravity
year_laid
37482
