Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 07:00 AM
C 0676_C 0675 _28092016_000031.mp4
- Date
- 09/28/2016
- W/O
- 592158
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01114
- PipeID
- P23945
- Time
- 12:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3591
- Sewer Name
- C JOINT OUTFALL C - UNIT 3H
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_592158_TV29041_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- C 0676
- Downstream MH
- C 0675
- Dir. of Survey
- Downstream
- Length Surveyed
- 326.3 ft.
- Total Length
- 326.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 165
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 165
Observation photos (3)

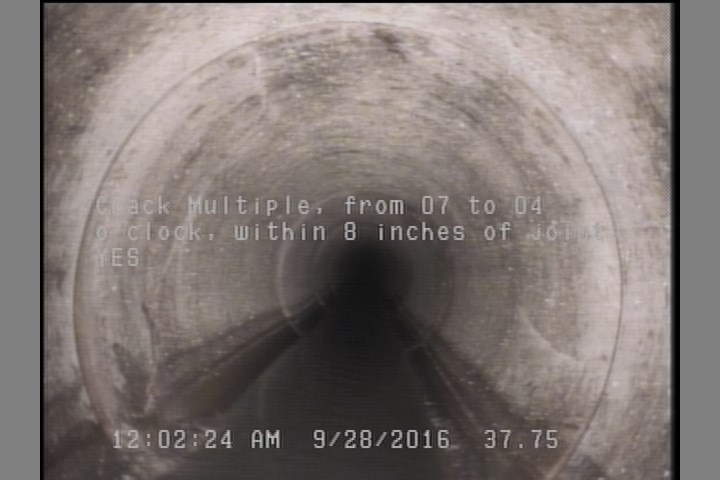

37.8 ft. - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

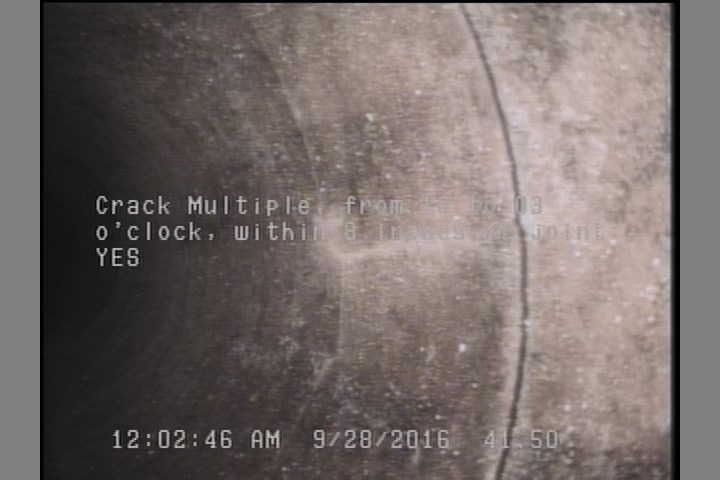

41.5 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

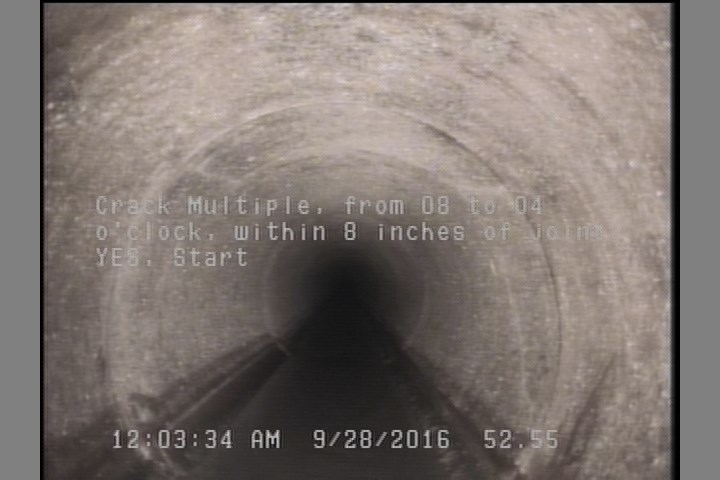

52.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 93.7 | TF | — |
| 326.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 326.3 | AMH | C 0675 |
| 52.6 | CM | — |
| 253.3 | TF | — |
| 320 | CM | — |
| 37.8 | CM | — |
| 0 | MWL | — |
| 41.5 | CM | — |
| 0 | AMH | C 0676 |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC306186
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-28T00:00:26-07:00
- sewer_category
- Gravity
- year_laid
- 37482
