Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 06:35 AM

  • C 0677_C 0676 _27092016_234249.mp4

Date
09/27/2016
W/O
592158
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01114
PipeID
P23946
Time
11:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3591
Sewer Name
C JOINT OUTFALL C - UNIT 3H
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_592158_TV29041_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
C 0677
Downstream MH
C 0676
Dir. of Survey
Downstream
Length Surveyed
347.8 ft.
Total Length
347.8 ft.
Structural Index
3
Structural Quick
3G25
Structural Rating
136
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole C 0677 to C 0676
MH: C 0677MH: C 0676downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 06773.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES8.8 ft. CM - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES12.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES19.6 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES62.1 ft. CL - Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES70.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start81.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"216.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"271.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish273.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"279.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"293.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES329.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES336.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"347.8 ft. AMH - Downstream Manhole, Survey Ends - C 0676

Observation photos (8)

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

    8.8 ft. - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

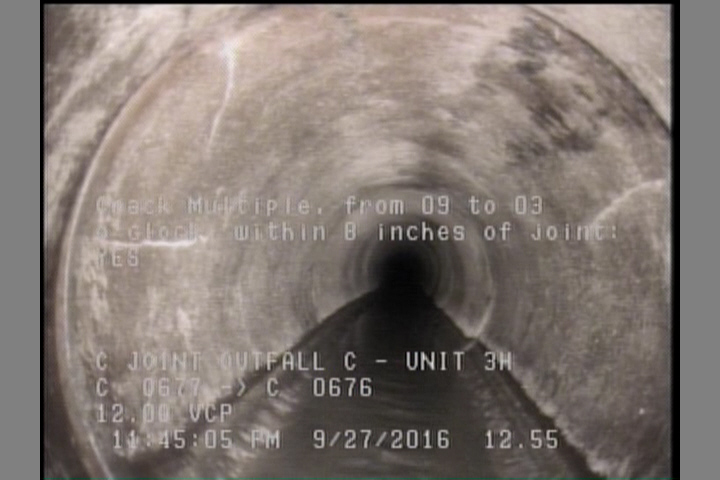

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    12.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    19.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES

    62.1 ft. - Crack Longitudinal, at 05 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    70.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    293.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    329.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

All inspections of P23946Work order 592158

Observations (18)

DistanceCodeObservation
271.8CM—
0MWL—
216.2TF—
293.4CL—
336.5TF—
62.1CL—
12.6CM—
0MWM—
3.1CL—
279.1TF—
81.6TF—
8.8CM—
0AMHC 0677
273.1TF—
329.2CL—
70.6CM—
19.6CL—
347.8AMHC 0676

Properties (6)

additional_info
SC306186
custom_field_two
3
customer
LACSD
datetime
2016-09-27T23:35:46-07:00
sewer_category
Gravity
year_laid
37482
