Wastewater/Activity/PacpInspection/1.0Sep 22, 2016, 10:06 AM
22 0895A_22 0895 _22092016_025245.mpg
- Date
- 09/22/2016
- W/O
- 592094
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00799
- PipeID
- P17266
- Time
- 3:06 AM
- Certificate
- U-507-*3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3715
- Sewer Name
- 22 CONEY TRUNK, SECTS 2&3
- City
- AZUSA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_592094_TV22030_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 0895
- Downstream MH
- 22 0895A
- Dir. of Survey
- Upstream
- Length Surveyed
- 10.1 ft.
- Total Length
- 10.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

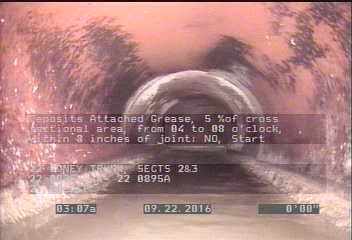

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 10.1 | DAGS | — |
| 2 | DAGS | — |
| 0 | AMH | 22 0895 |
| 10.1 | AMH | 22 895A |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
Properties (5)
- additional_info
- SC306050
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-22T03:06:00-07:00
- sewer_category
- Gravity
