Wastewater/Activity/PacpInspection/1.0Aug 19, 2016, 09:53 PM
22 0892_22 0891 _09262016_033236.mp4
- Date
- 08/19/2016
- W/O
- 1576257
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00799
- PipeID
- P17262
- Time
- 2:53 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3767
- Sewer Name
- 22 CONEY TRUNK, SECTS 2&3
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_592094_TV22030_SEP2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0891
- Downstream MH
- 22 0892
- Dir. of Survey
- Upstream
- Length Surveyed
- 285.8 ft.
- Total Length
- 285.8 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 114
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 117
Observation photos (3)

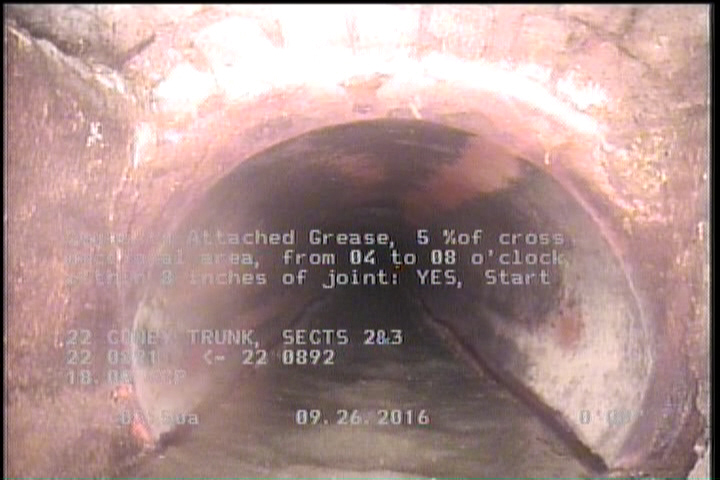

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

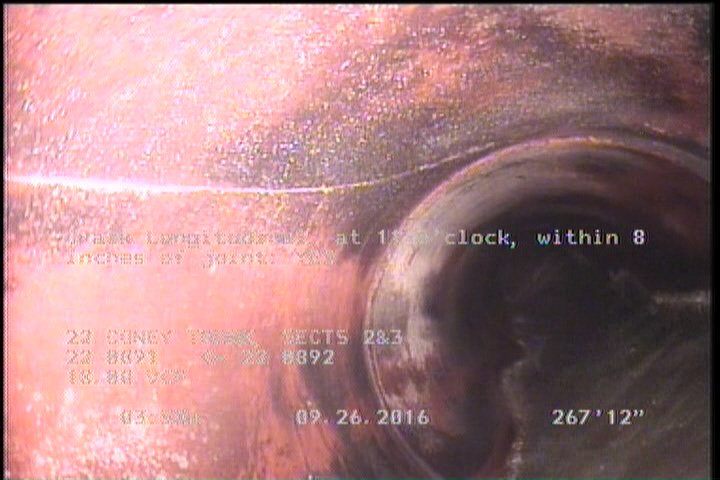

267.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

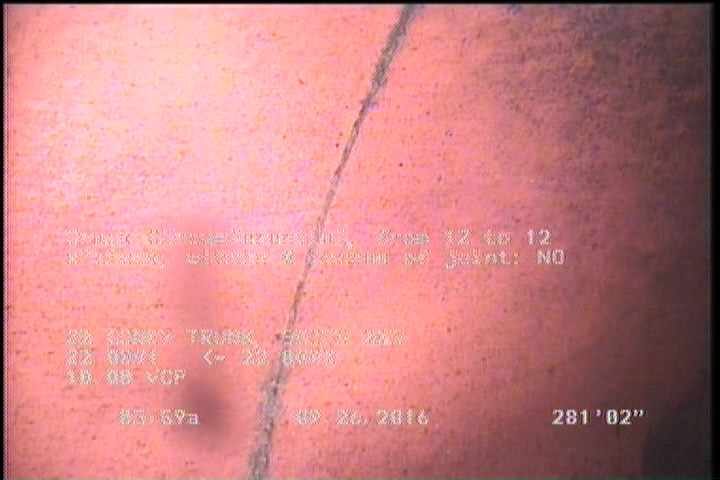

281 ft. - Crack Circumferential, from 12 to 12 o'clock, within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 0891 |
| 0 | DAGS | — |
| 285.1 | DAGS | — |
| 285.8 | AMH | 22 0889 |
| 267.1 | CL | — |
| 0 | MWM | — |
| 281 | CC | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC306302
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-19T14:53:03-07:00
- sewer_category
- Gravity
