Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 8, 2016, 06:08 AM

  • 22 0568_22 0533 _09072016_230948.mp4

Date
09/07/2016
W/O
592045
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00791
PipeID
P16874
Time
11:08 PM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3424
Sewer Name
22 BEN LOMOND TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
20
Purpose
Routine Assessment
Project
WO_592045_TV22006_SEP2016
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0568
Downstream MH
22 0533
Dir. of Survey
Downstream
Length Surveyed
20.9 ft.
Total Length
20.9 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
2
O&M Quick
4112
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 22 0568 to 22 0533
MH: 22 0568MH: 22 0533downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 05680 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - CONNECTION AT MH 99.3 ft. MGO - General Observation - MAG. H.OX 20%START15.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"17.9 ft. MGO - General Observation - MAG. H.OX 20% FINISH17.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish20.9 ft. VC - Vermin Cockroach20.9 ft. AMH - Downstream Manhole, Survey Ends - 22 0533

Observation photos (2)

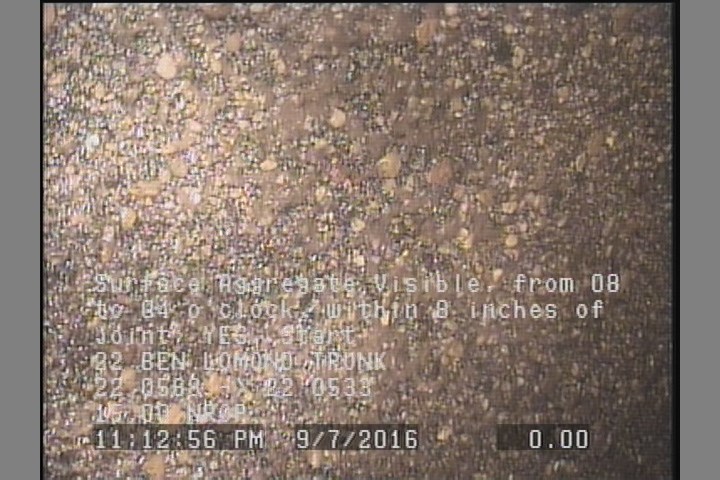

  • General Observation - CONNECTION AT MH 9

    2.1 ft. - General Observation - CONNECTION AT MH 9

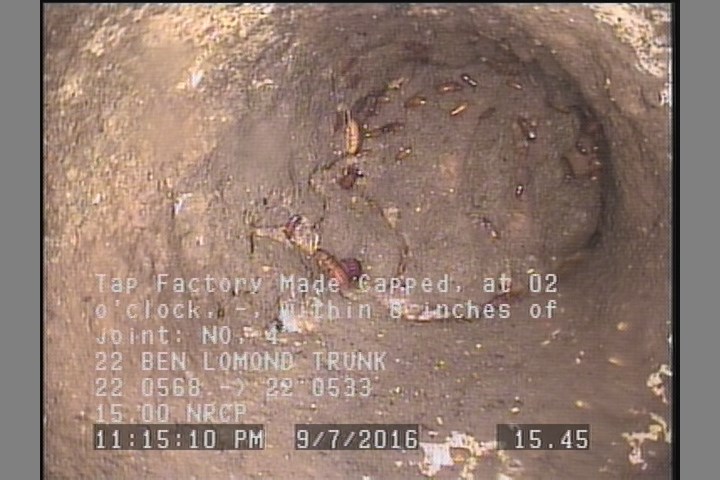

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    15.5 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P16874Work order 592045

Observations (12)

DistanceCodeObservation
17.9MGOMAG. H.OX 20% FINISH
17.9SAV—
20.9VC—
0MWL—
2SAV—
0AMH22 0568
0VC—
15.5TFC—
20.9AMH22 0533
9.3MGOMAG. H.OX 20%START
0MWM—
2.1MGOCONNECTION AT MH 9

Properties (5)

additional_info
SC305988
custom_field_two
3
customer
LACSD
datetime
2016-09-07T23:08:55-07:00
sewer_category
Gravity
