Wastewater/Activity/PacpInspection/1.0Aug 29, 2016, 10:34 AM
22 0565Z_22 0565 _08292016_033550.mp4
- Date
- 08/29/2016
- W/O
- 592045
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00791
- PipeID
- P16909
- Time
- 3:34 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3421
- Sewer Name
- 22 BEN LOMOND TRUNK
- City
- GLENDORA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_592045_TV22006_SEP2016
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0565Z
- Downstream MH
- 22 0565
- Dir. of Survey
- Downstream
- Length Surveyed
- 61.8 ft.
- Total Length
- 61.8 ft.
- Structural Index
- 3
- Structural Quick
- 3A00
- Structural Rating
- 36
- O&M Index
- 1
- O&M Quick
- 1200
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (2)

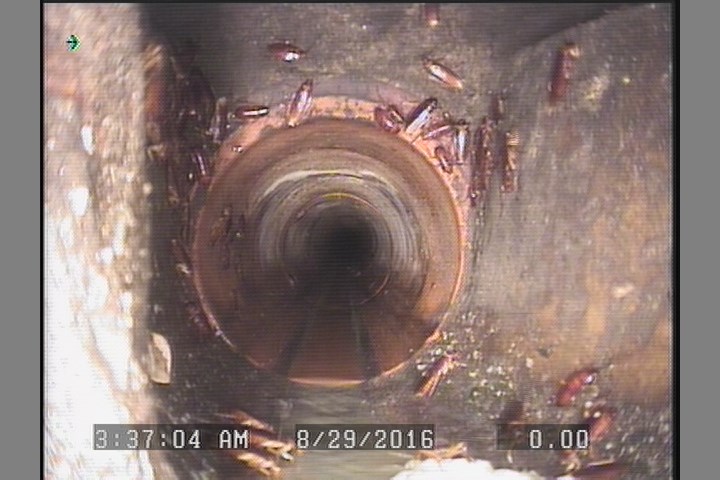

0 ft. - General Observation - CONNECTION AT MH 9

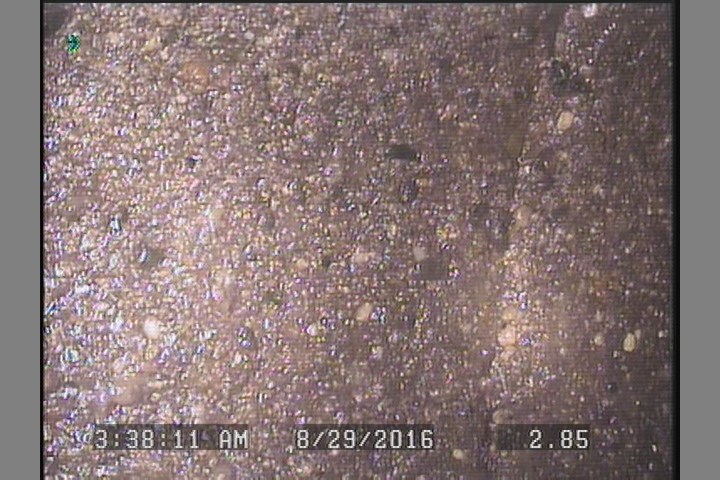

2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 61.8 | VC | — |
| 0 | AMH | 22 0565Z |
| 61.8 | AMH | 22 0565 |
| 61.7 | SAV | — |
| 0 | MGO | CONNECTION AT MH 9 |
| 0 | MWM | — |
| 2.9 | SAV | — |
| 0 | VC | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305983
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-29T03:34:32-07:00
- sewer_category
- Gravity
