Wastewater/Activity/PacpInspection/1.0Feb 3, 2017, 06:12 AM
14 0241_14 0240 _02022017_221232.mp4
- Date
- 02/02/2017
- W/O
- 613657
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P18294
- Time
- 10:12 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4229
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_613657_TV14071_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 14 0241
- Downstream MH
- 14 0240
- Dir. of Survey
- Downstream
- Length Surveyed
- 598.7 ft.
- Total Length
- 598.7 ft.
- Structural Index
- 3
- Structural Quick
- 3W2O
- Structural Rating
- 513
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 517
Observation photos (2)

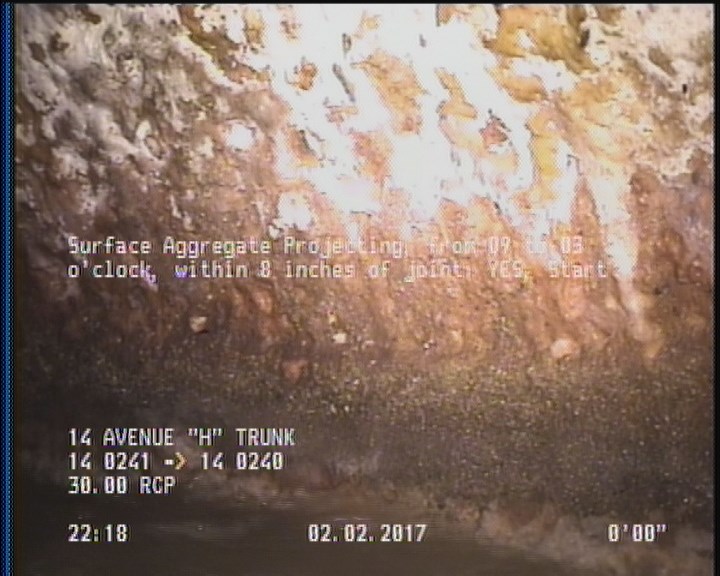

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

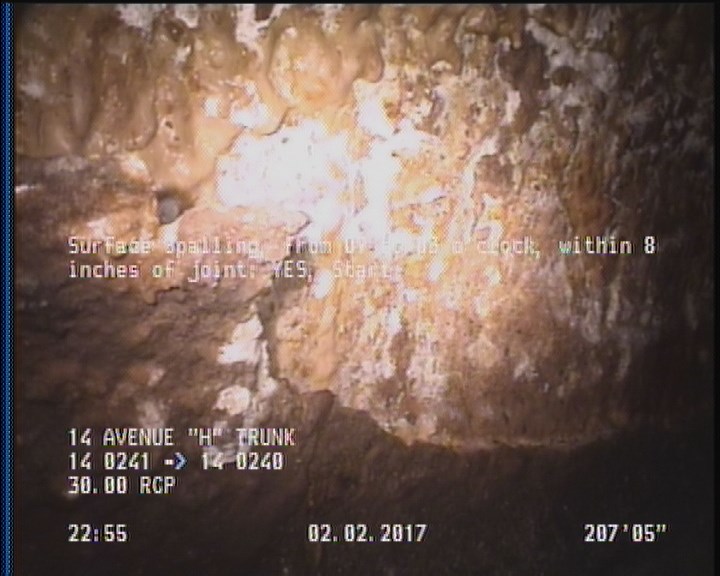

207.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 596.7 | SAP | — |
| 0 | MWM | — |
| 598.7 | AMH | 14 0240 |
| 596.7 | SSS | — |
| 0 | MWL | — |
| 0 | AMH | 14 0241 |
| 207.4 | SSS | — |
| 2 | SAP | — |
| 2 | MGO | MAG COATING |
Properties (4)
- additional_info
- SC306731
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-02T22:12:27-08:00
