Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 06:22 AM
18 0129_18 0128 _01112017_222910.mpg
- Date
- 01/11/2017
- W/O
- 613650
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00695
- PipeID
- P13950
- Time
- 10:22 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4074
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_613650_TV18170_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 0129
- Downstream MH
- 18 0128
- Dir. of Survey
- Downstream
- Length Surveyed
- 20.5 ft.
- Total Length
- 20.5 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2211
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (2)

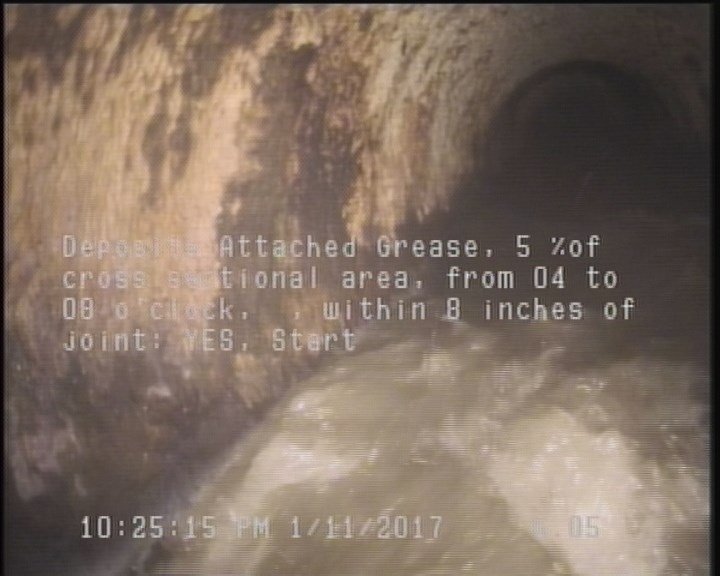

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

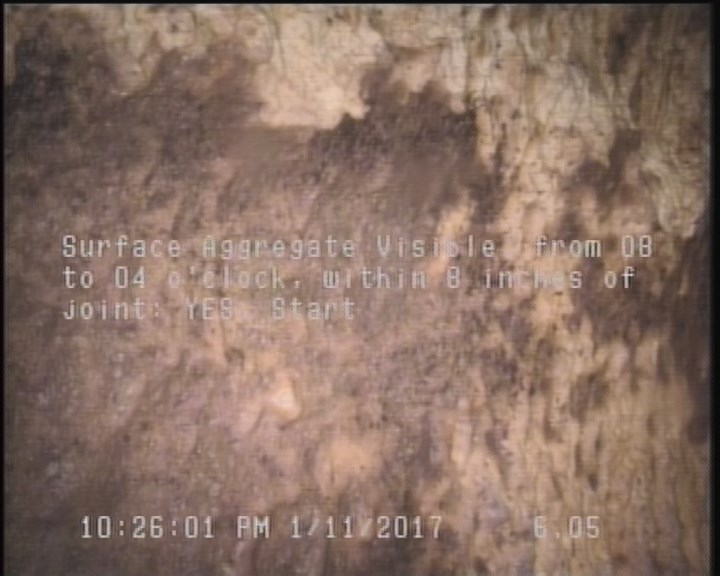

6.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 20.5 | AMH | 18 0128 |
| 15.8 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 0 | MWL | — |
| 6.1 | MGO | MAGNESIUM H.O. START |
| 6.1 | DAGS | — |
| 20.5 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 0 | MWM | — |
| 16 | SAV | — |
| 15.7 | DAGS | — |
| 20.5 | VC | — |
| 6.1 | SAV | — |
| 0 | AMH | 18 0129 |
Properties (4)
- additional_info
- SC318615
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-11T22:22:17-08:00
