Wastewater/Activity/PacpInspection/1.0Feb 1, 2017, 06:24 AM
14 0231A_14 0231_01312017_220346.mp4
- Date
- 01/31/2017
- W/O
- 613623
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00575
- PipeID
- P18282
- Time
- 10:24 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4226
- Sewer Name
- 14 NORTH SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_613623_TV14057_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0231A
- Downstream MH
- 14 0231
- Dir. of Survey
- Downstream
- Length Surveyed
- 424.3 ft.
- Total Length
- 424.3 ft.
- Structural Index
- 3
- Structural Quick
- 3O11
- Structural Rating
- 247
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 249
Observation photos (3)

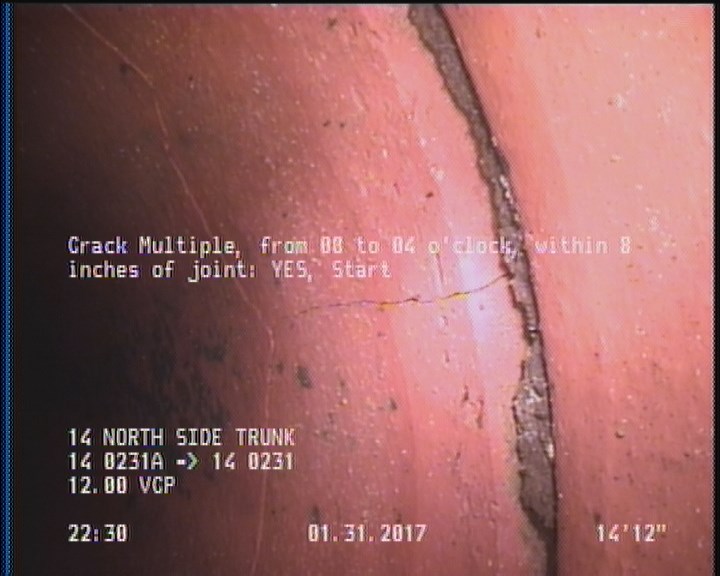

15 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

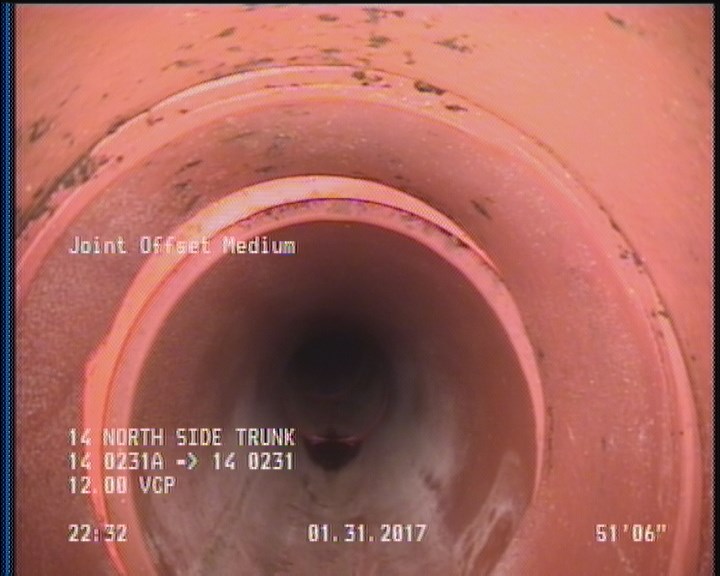

51.5 ft. - Joint Offset Medium

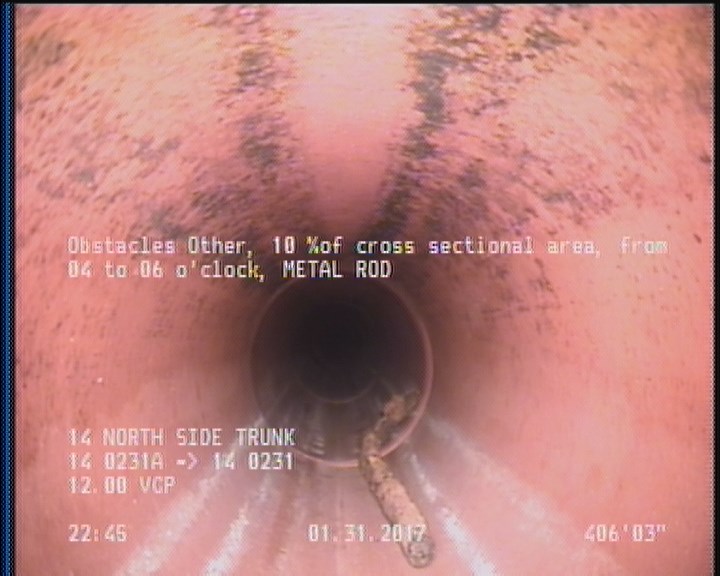

406.3 ft. - Obstacles Other, 10 %of cross sectional area, from 04 to 06 o'clock - METAL ROD
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 258.2 | TFC | — |
| 137.3 | TFC | — |
| 51.5 | JOM | — |
| 321 | TFC | — |
| 0 | MWL | — |
| 379.5 | TFC | — |
| 422.7 | CM | — |
| 16.7 | TFC | — |
| 15 | CM | — |
| 0 | AMH | 14 0231A |
| 0 | MWM | — |
| 406.3 | OBZ | METAL ROD |
| 424.3 | AMH | 14 0231 |
| 199.8 | TFC | — |
| 74.8 | TFC | — |
Properties (4)
- additional_info
- SC306728
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-31T22:24:58-08:00
