Wastewater/Activity/PacpInspection/1.0Feb 2, 2017, 09:05 AM
14 0249A_14 0249 _02022017_011721.mp4
- Date
- 02/02/2017
- W/O
- 613594
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00569
- PipeID
- P18305
- Time
- 1:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4228
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_613594_TV14037_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 0249A
- Downstream MH
- 14 0249
- Dir. of Survey
- Downstream
- Length Surveyed
- 167.5 ft.
- Total Length
- 167.5 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 96
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 64
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (2)

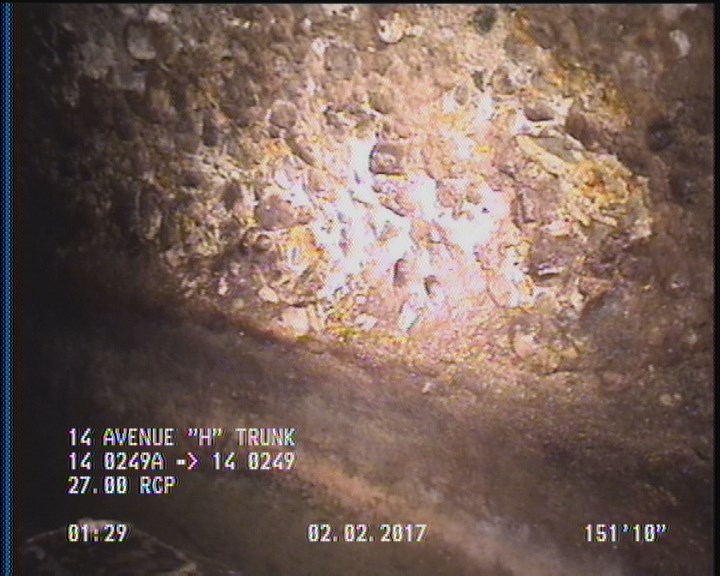

8.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

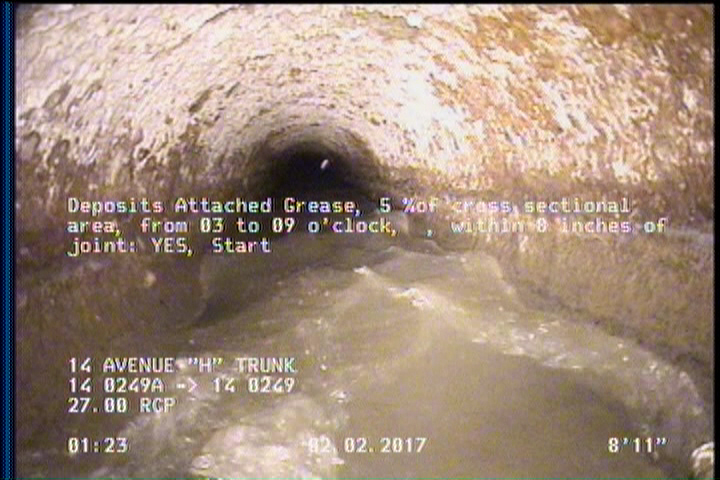

8.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 8.9 | SAP | — |
| 0 | AMH | 14 0249A |
| 8.9 | DAGS | — |
| 0 | MWL | — |
| 167.5 | SAP | — |
| 8.9 | MGO | MAG COATING |
| 167.5 | AMH | 14 0249 |
| 0 | MWM | — |
| 167.5 | DAGS | — |
Properties (4)
- additional_info
- SC306730
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-02T01:05:38-08:00
