Wastewater/Activity/PacpInspection/1.0Dec 20, 2016, 12:36 AM
14 0248_14 0247A_02022017_020424.mp4
- Date
- 12/19/2016
- W/O
- 613594
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00569
- PipeID
- P18303
- Time
- 4:36 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4228
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_613594_TV14037_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 14 0248
- Downstream MH
- 14 0247A
- Dir. of Survey
- Downstream
- Length Surveyed
- 186.8 ft.
- Total Length
- 186.8 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 108
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 72
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 180
Observation photos (2)

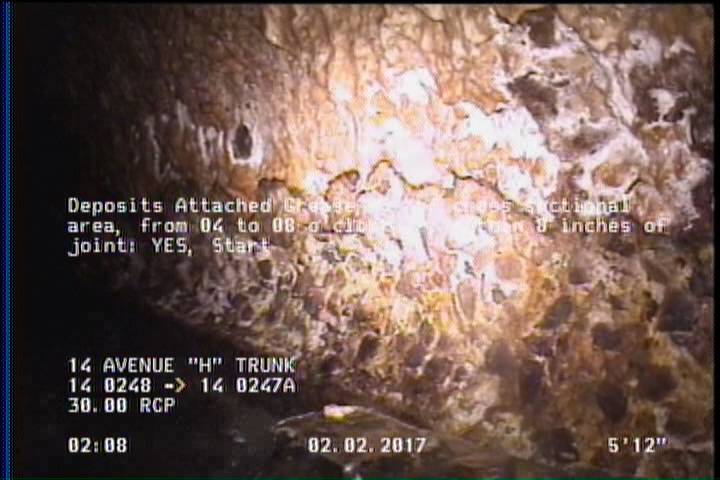

6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

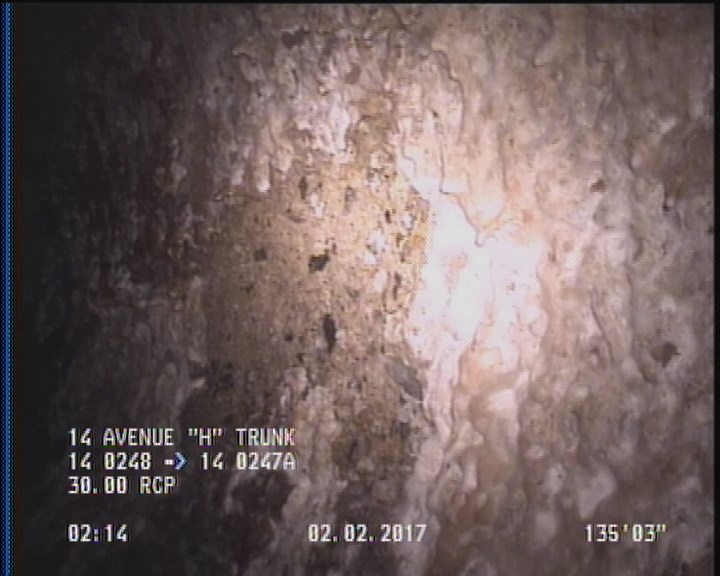

6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 6 | DAGS | — |
| 0 | AMH | 14 0248 |
| 0 | MWM | — |
| 186.8 | MGO | ACTIVE CONNECTION 9 O CLOCK |
| 6 | SAP | — |
| 6 | MGO | MAG COATING |
| 186.8 | SAP | — |
| 186.8 | AMH | 14 0247A |
| 186.8 | DAGS | — |
Properties (4)
- additional_info
- SC306730
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-19T16:36:27-08:00
