Wastewater/Activity/PacpInspection/1.0Jan 5, 2017, 11:55 AM
18 0465_18 0464_01052017_040801.mpg
- Date
- 01/05/2017
- W/O
- 613581
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00691
- PipeID
- P14319
- Time
- 3:55 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4064
- Sewer Name
- 18 NORTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_613581_TV18099_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0465
- Downstream MH
- 18 0464
- Dir. of Survey
- Downstream
- Length Surveyed
- 216.8 ft.
- Total Length
- 216.8 ft.
- Structural Index
- 3
- Structural Quick
- 3E21
- Structural Rating
- 98
- O&M Index
- 2
- O&M Quick
- 3G2G
- O&M Rating
- 204
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 302
Observation photos (3)

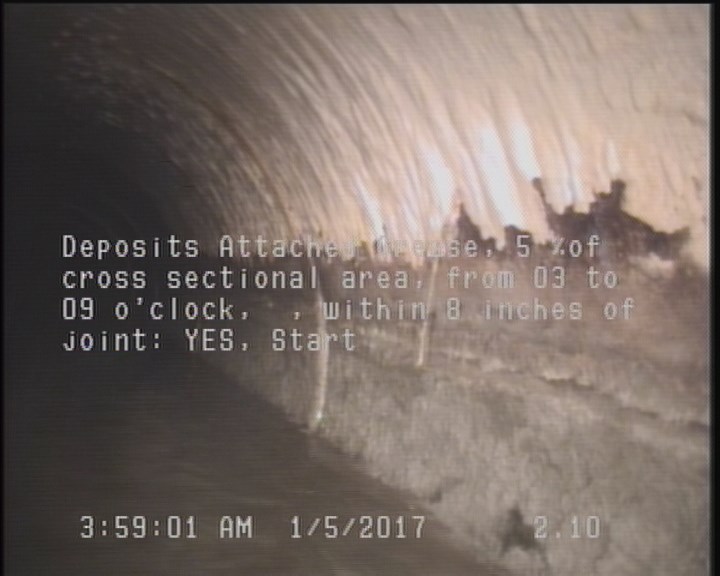

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

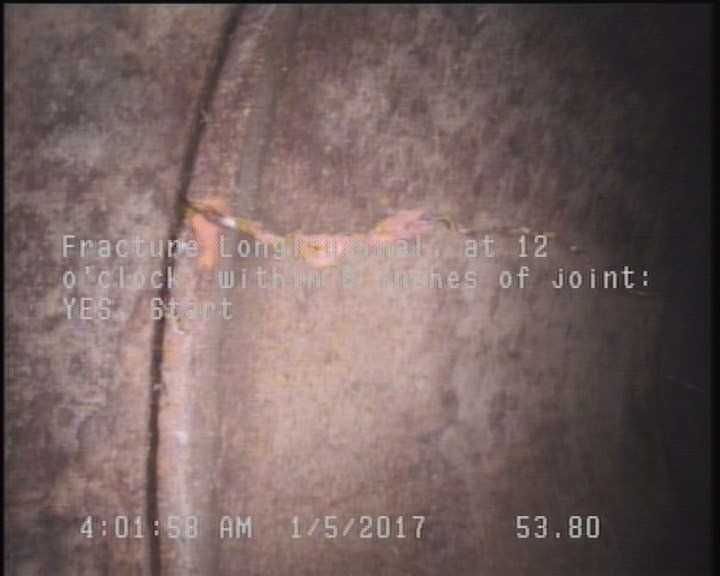

53.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

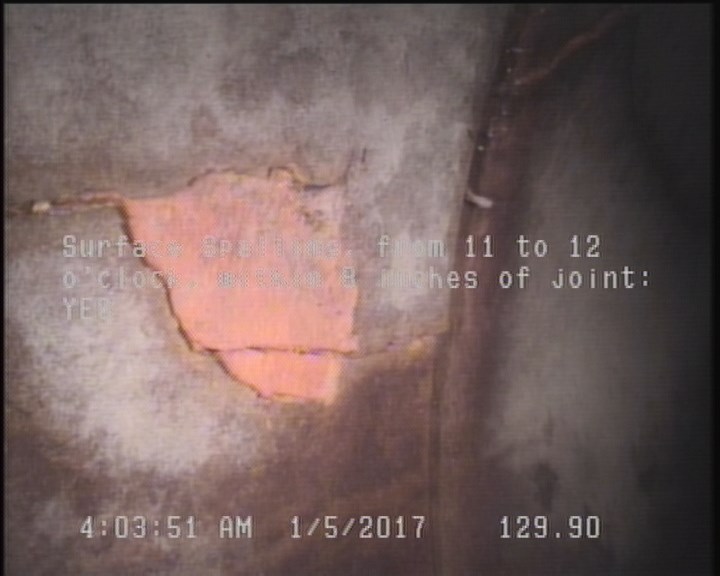

129.9 ft. - Surface Spalling, from 11 to 12 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 129.9 | SSS | — |
| 212 | FL | — |
| 216.8 | AMH | 18 0464 |
| 213.3 | OBZ | DEBRIS NOT VISIBLE |
| 11.6 | OBZ | DEBRIS NOT VISIBLE |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 0 | MWL | — |
| 53.8 | FL | — |
| 177.4 | TB | — |
| 0 | MWM | — |
| 213.3 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | AMH | 18 0465 |
| 213.3 | DAGS | — |
| 2.1 | DAGS | — |
Properties (4)
- additional_info
- SC318605
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-01-05T03:55:29-08:00
