Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 10:43 AM
22 1151_22 1150 _01132017_024432.mp4
- Date
- 01/13/2017
- W/O
- 613566
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00792
- PipeID
- P17529
- Time
- 2:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4211
- Sewer Name
- 22 BUENA VISTA TRUNK
- City
- DUARTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_613566_TV22086_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1151
- Downstream MH
- 22 1150
- Dir. of Survey
- Downstream
- Length Surveyed
- 103.2 ft.
- Total Length
- 103.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C11
- O&M Rating
- 41
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 41
Observation photos (3)

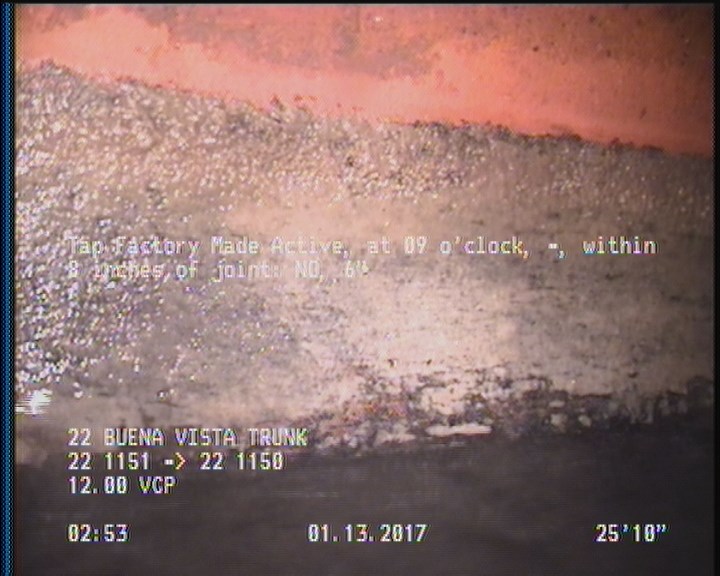

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

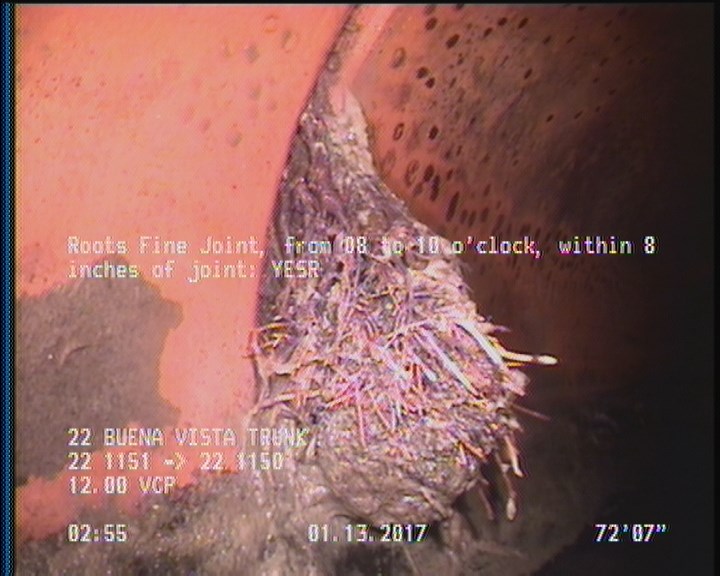

72.6 ft. - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR

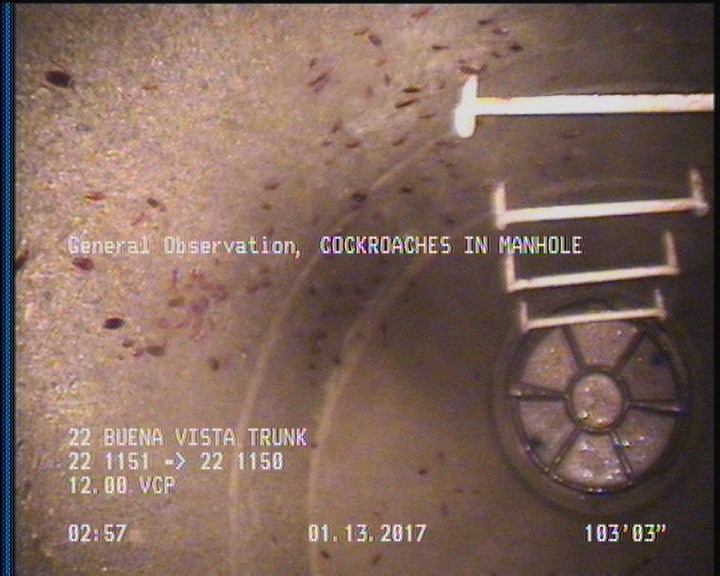

103.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 72.6 | RFJ | — |
| 0 | MWL | — |
| 25.9 | TFA | — |
| 2 | DAGS | — |
| 103.2 | AMH | 22 1150 |
| 103.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 85.4 | TFA | — |
| 103.2 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 1151 |
| 0 | MWM | — |
| 100 | DAGS | — |
Properties (4)
- additional_info
- SC306713
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-13T02:43:58-08:00
